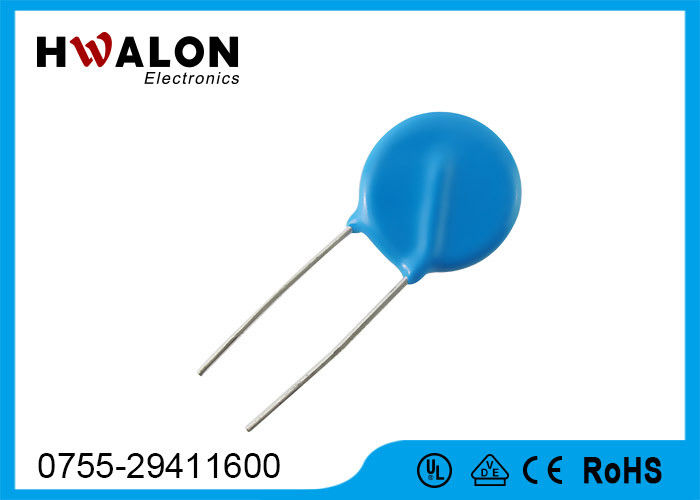

Metal Oxide ZOV Varistor 20D511K High Performance Radial Leaded Type

Metal Oxide ZOV Varistor 20D511K High Performance Radial Leaded Type

    • Metal Oxide ZOV Varistor 20D511K High Performance Radial Leaded Type
    • Metal Oxide ZOV Varistor 20D511K High Performance Radial Leaded Type
  • Metal Oxide ZOV Varistor 20D511K High Performance Radial Leaded Type

    Product Details:

    Place of Origin: CHINA
    Brand Name: MOV
    Certification: UL,VDE,CSA
    Model Number: 20D511K

    Payment & Shipping Terms:

    Minimum Order Quantity: 5000pcs
    Packaging Details: 100pcs/bag
    Supply Ability: 100,000,000pcs/month
    Contact Now
    Detailed Product Description
    Certification: UL,VDE,CSA Brand: MOV Or ZOV
    Operating Temp.: -40~85 Degree AC Voltage: 320V
    DC Voltage: 415V Varistor Voltage: 511V

    Metal Oxide ZOV Varistor 20D511K High Performance Radial Leaded Type



    Describtion of Metal Oxide Varistor :


    1. Radial leaded type
    2. Many size choose 7mm, 10mm, 14mm, 20mm , 25mm and 32mm
    3. VM(AC)RMS voltage range from 130V to 1000V
    4. Energy absorption capability up to 360J
    5. UL ,VDE ,CSA Certification


    Specification of Metal Oxide Varistor MOV 20D511K:


    P/N 20D511K
    Size 20mm
    AC voltage 320V
    DC Voltage 415V
    Varistor Voltage 510V(459-561)
    Max Clamping Voltage/Current 775V/25A
    Max Peak Current(1 time) 2500A
    Max Peak Current(2 times) 1250A
    Capacitance 150pf


    Parameters of Metal Oxide Varistor 20mm series:


    P/N AC Voltage DC Voltage Varistor Voltage UL
    20D180L 11 14 18(15-21)
    20D220K 14 18 22(20-24)
    20D270K 17 22 27(24-30)
    20D330K 20 26 33(30-36)
    20D390K 25 31 39(35-43)
    20D470K 30 38 47(42-52)
    20D560K 35 45 56(50-62)
    20D680K 40 56 68(61-75)
    20D820K 50 65 82(74-90)
    20D101K 60 85 100(90-110)
    20D121K 75 100 120(108-132)
    20D151K 95 125 150(135-165)
    20D181K 115 150 180(162-198)
    20D201K 130 170 200(185-225)
    20D221K 140 180 220(198-242)
    20D241K 150 200 240(216-264)
    20D271K 175 225 270(243-297)
    20D301K 190 250 300(270-330)
    20D331K 210 275 330(297-363)
    20D361K 230 300 360(324-396)
    20D391K 250 320 390(351-429)
    20D431K 275 350 430(387-473)
    20D471K 300 385 470(423-517)
    20D511K 320 415 510(459-561)
    20D561K 350 460 560(504-616)
    20D621K 385 505 620(558-682)
    20D681K 420 560 680(612-748)
    20D751K 460 615 750(675-825)
    20D781K 485 640 780(702-858)
    20D821K 510 670 820(738-902)
    20D911K 550 745 910(819-1001)
    20D102K 625 825 1000(900-1100)
    20D112K 680 895 1100(990-1210)
    20D122K 750 990 1200(1080-1320)
    20D182K 1000 1465 1800(1620-1980)


    Application of Metal Oxide Varistor:

    Surge Protector Device,Motor Protector,Over-voltage Protector Device and Lightning Arrester ,etc




    RFQ:

      Question Answers
    1 What is the MOQ? 5000pcs.
    2 What is the payment terms? Negotiation.
    3 Can you accept special requirement? Yes,we can.We can design for your special requirement.
    4 Can you make the printing artworks(such as user manual/packing/rating label) in our language Yes,we can.We do OEM for a long time
    5 Can we order samples: Yes ,you can . Free samples are available



    Metal Oxide ZOV Varistor 20D511K High Performance Radial Leaded Type
