| Place of Origin: | CHINA |
| Brand Name: | MOV |
| Certification: | UL,VDE,CSA |
| Model Number: | 10D471K |
| Minimum Order Quantity: | 10000pcs |
|---|---|
| Price: | By negotiation |
| Packaging Details: | 500pcs/bag |
| Delivery Time: | 5-7 days after payment received |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100,000,000pcs/month |
| Item Name: | Varistor | Model NO.: | 10D471K |
|---|---|---|---|
| Voltage: | 470V | Chip Size: | 10 Mm |
| Color: | Blue | Application: | Surge Protector |
| Sample Supply: | Available | Sample Leadtime: | 1-2 Days |
| High Light: | MOV electronic component,MOV electronic device |
||

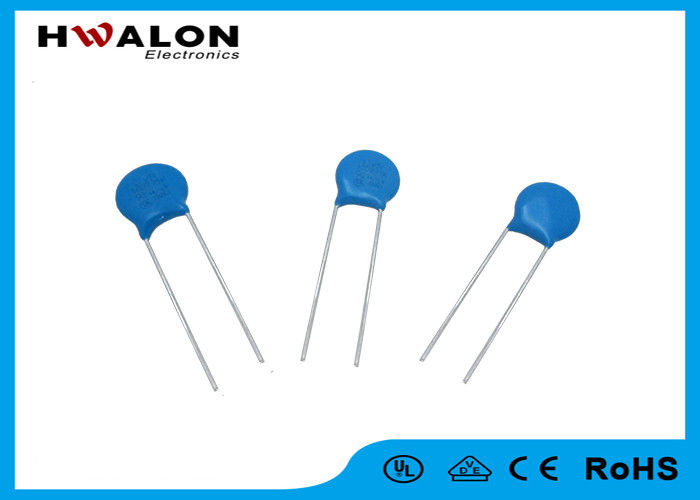

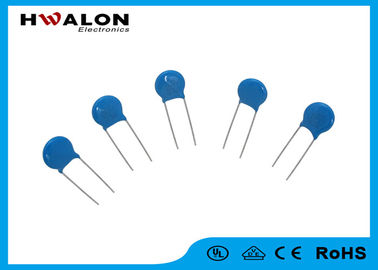

High Efficiency Metal Oxide Varistor 3MOVs With Blue Epoxy For Surge Protector
Detailed Parameters:
| Item | Parameters |
| Model NO. | 10D471K |
| Size | 10 mm |
| Varistor Voltage | 470 V |
| Epoxy Color | Blue |
| Lead Type | Straight Lead |
All the above parameters is customized to meet customers' requirements.
If the parameters you need is special and Not standard,No worries.Just please feel free to inform us. We will customize the parameters for you to meet your requirements.
Specification :
| P/N | AC Voltage | DC Voltage | Varistor Voltage | UL |
| 10D471K | 300 | 385 | 470 V | √ |
Custom specifications can be designed according to customer's requirements.
Features :
1. Radial leaded type
2. Many size choice : 7mm, 10mm, 14mm, 20mm, 25mm and 32mm
3. VM(AC)RMS voltage range from 130V to 1000V
4. Energy absorption capability up to 360J
5. UL ,VDE ,CSA Certification
1. High surge current ratings up to 8 kA
2. Wide operating voltage range 11 ~ 1100 V rms
3. No derating up to 85 degree ambient temperature
4. PSpice models
5. For S14 / S20 types duty cycle @ 6kV / 3kA = > 10 pulses, according to IEC 60950 - 1, Annex Q; IEC 61051 - 2
Construction :
Round varistor element, leaded
Coating : epoxy resin, flame-retardant to UL 94 V - 0
Description :
Metal oxide varistor is the core of the arrester,which main component is Zinc Oxide and with a small quantity of bismuth oxide, fluoride oxide, manganous carbonate, antimony oxide and other gleam of additive and made with high temperature.
Typical Applications :
It can be widely used on Surge Protector Device, Motor Protector, Over-voltage Protector Device and Lightning Arrester, etc.
| Option 1 | Bulk (standard) |
| Option 2 | taped versions on reel pack |
| Option 3 | taped versions on Ammo pack |
Just pls choose any way you like, then we will do it for you upon request.
Each product will be packed in OPP Bag + Carton.
The outer cartons of the goods, which white plastic strap is pasted, to keep from busting out once the goods is facing creaking and striking.
In general, the goods can be sent to you by Express,by Plane,by Sea, any way you like.
Delivery:
15 ~ 20 days is needed for mass production after payment received.
Then send out as customers' demands.
High Efficiency Metal Oxide Varistor 3MOVs With Blue Epoxy For Surge Protector
If any questions or ideas,just please feel free to contact us, since we hold the opinion that any questions or trouble can be absolutely settled.
It is our hope, by joint effort, to promote both business and friendship to our mutual advantage.
