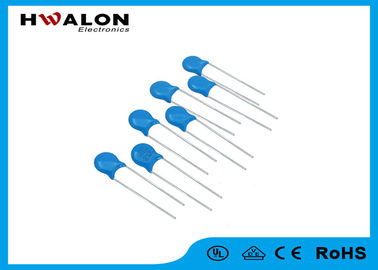

Blue Leaded Type Varistor Metal Oxide 3MOVs With Epoxy Resin For Motor Protect

Blue Leaded Type Varistor Metal Oxide 3MOVs With Epoxy Resin For Motor Protect

MOQ: 10000pcs
Price: By negotiation
Standard Packaging: 500pcs/bag
Delivery Period: 5-7 days after payment received
Payment Method: T/T, Western Union
Supply Capacity: 100,000,000pcs/month
Detail Information
Place of Origin
CHINA
Brand Name
MOV
Certification
UL,VDE,CSA
Model Number
10D471K
Varistor Type:
Leaded Type
Epoxy Type:
Epoxy Resin
Varistor Color:
Blue Color
Varistor Voltage:
470 V
Chip Size:
10mm
Lead Type:
Straight Lead
Application:
Motor Protect
Place Of Origin:
Guangdong,China
Highlight:

MOV electronic component

,

MOV electronic device

Product Description



Blue Leaded Type Metal Oxide Varistor 3MOVs With Epoxy Resin For Motor Protect



Features :



1. Wide operating voltage range 11 ~ 1100 V rms
2. High surge current ratings up to 8 kA
3. No derating up to 85 degree ambient temperature

4. For S14 / S20 types duty cycle @ 6kV / 3kA = > 10 pulses, according to IEC 60950 - 1, Annex Q; IEC 61051 - 2
5.

PSpice models



Detailed Parameters:



Item Parameters
Model NO. 10D471K
Varistor Type Leaded Type
Size 10 mm
Varistor Voltage 470 V

Epoxy Type Epoxy Resin
Epoxy Color Blue Color

Lead Type Straight Lead



All the above parameters is customized to meet customers' requirements.



If the parameters you need is special and Not standard,No worries.Just please feel free to inform us. We will customize the parameters for you to meet your requirements.



Description :



Metal oxide varistor :



1. The core of the arrester;



2. The main component is Zinc Oxide and with a small quantity of bismuth oxide, fluoride oxide, manganous carbonate, antimony oxide and other gleam of additive;



3. To be made with high temperature.



Specification :


P/N AC Voltage DC Voltage Varistor Voltage UL
10D471K 300 385 470 V



Custom specifications can be designed according to customer's requirements.



Construction :



Round varistor element, leaded

Coating : epoxy resin, flame-retardant to UL 94 V - 0



Lead Types Options



Option 1 Straight Lead
Option 2 Kinked Lead
Option 3 K  Lead

3 types Lead styles is available.
Just choose any one you like, then we can do for you !


Typical Applications :

It can be widely used on Surge Protector Device, Motor Protector, Over-voltage Protector Device and Lightning Arrester, etc.



Delivery Mode :



Option 1 Bulk (standard)
Option 2 taped versions on reel pack
Option 3 taped versions on Ammo pack



Just pls choose any way you like, then we will do it for you upon request.



Packing:



Each product will be packed in OPP Bag + Carton.

The outer cartons of the goods, which white plastic strap is pasted, to keep from busting out once the goods is facing creaking and striking.

In general, the goods can be sent to you by Express,by Air,by Sea, any way you like !



Delivery:



7 ~10 days is needed for mass production after payment received.



Then send the shipment as customers' demands.

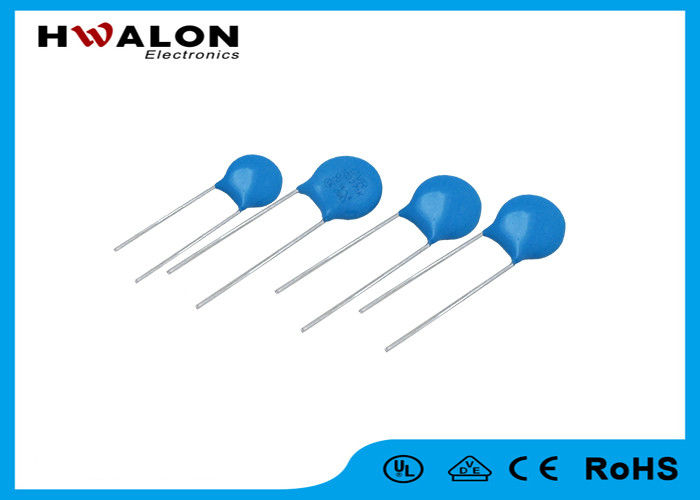

Blue Leaded Type Metal Oxide Varistor 3MOVs With Epoxy Resin For Motor Protect


Blue Leaded Type Varistor Metal Oxide 3MOVs With Epoxy Resin For Motor Protect 0



If any questions or ideas,just please feel free to contact us, since we hold the opinion that any questions or trouble can be absolutely settled.

It is our hope, by joint effort, to promote both business and friendship to our mutual advantage.
