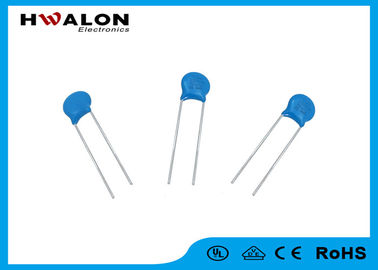

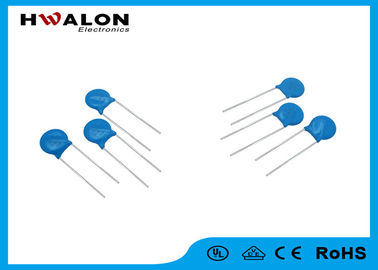

Dip Type 7mm 22V Metal Oxide Varistor With Epoxy Coat For Motorizes Furniture
  • name
  • name

Dip Type 7mm 22V Metal Oxide Varistor With Epoxy Coat For Motorizes Furniture

MOQ: 10000pcs
Price: By negotiation
Standard Packaging: 500pcs/bag
Delivery Period: 5-7 days after payment received
Payment Method: T/T, Western Union
Supply Capacity: 100,000,000pcs/month
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
MOV
Certification
UL,VDE,CSA
Model Number
07D220K
Model NO.:
07D220K
Size:
7mm
Voltage:
22V
Varistor Type:
Dip Type
Applicable Product:
Motorizes Furniture
Coating Type:
Epoxy Coating
Coatign Color:
Blue Color
Lead Type:
Straight Lead
Highlight:

MOV electronic component

,

MOV electronic device

Product Description



Dip Type 7mm 22V Metal Oxide Varistor With Epoxy Coat For Motorizes Furniture


Specification :

P/N AC Voltage DC Voltage Varistor Voltage UL
07D220K 14 18 22V (20-24) √



Custom specifications can be designed according to customer's requirements.



Detailed Parameters:



P/N 07D220K

Chip Size 7mm
AC voltage 14 V
DC Voltage 18 V
Varistor Voltage 22V (20-24)

Varistor Type Dip Type
Coating type Epoxy Coating
Coating Color Blue Color

Lead Type Straight Lead



All the above parameters is customized to meet customers' requirements.



If the parameters you need is special and Not standard,No worries.Just please feel free to inform us. We will customize the parameters for you to meet your requirements.



Description :



Metal oxide varistor :



  • The core of the arrester;
  • The main component is Zinc Oxide and with a small quantity of bismuth oxide, fluoride oxide, manganous carbonate, antimony oxide and other gleam of additive;
  • To be made with high temperature.



Features :



  1. Wide operating voltage range 11 ~ 1100 V rms
  2. High surge current ratings up to 8 kA
  3. No derating up to 85 degree ambient temperature



  1. For S14 / S20 types duty cycle @ 6kV / 3kA = > 10 pulses, according to IEC 60950 - 1, Annex Q; IEC 61051 - 2
  2. PSpice models


Competitive Advantage :



  • 1. Radial leaded type
  • 2. Many size choice : 7mm, 10mm, 14mm, 20mm, 25mm and 32mm
  • 3. VM(AC)RMS voltage range from 130V to 1000V



  • 4. Energy absorption capability up to 360J
  • 5. UL ,VDE ,CSA Certification



Typical Applications :

It can be widely used on Surge Protector Device, Motor Protector, Over-voltage Protector Device and Lightning Arrester, etc.



Delivery Mode :



Option 1 Bulk (standard)
Option 2 taped versions on reel pack
Option 3 taped versions on Ammo pack



Just pls choose any way you like, then we will do it for you upon request.



Packing:



Each product will be packed in OPP Bag + Carton.

The outer cartons of the goods, which white plastic strap is pasted, to keep from busting out once the goods is facing creaking and striking.

In general, the goods can be sent to you by Express,by Air,by Sea, any way you like.



Delivery:



15 ~ 20 days is needed for mass production after payment received.



Then send out as customers' demands.

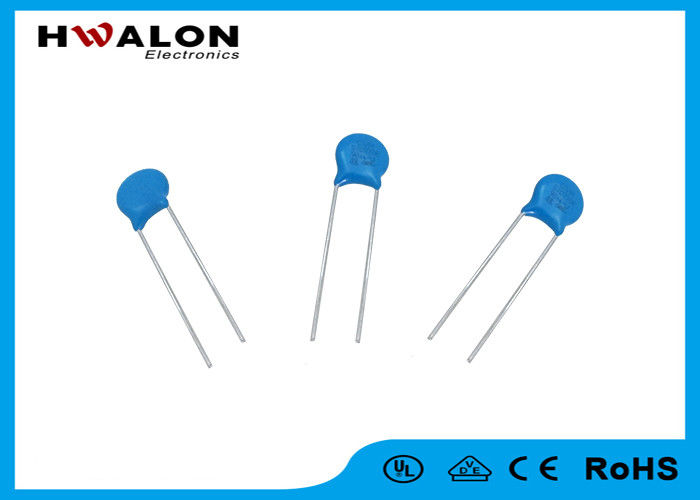

Dip Type 7mm 22V Metal Oxide Varistor With Epoxy Coat For Motorizes Furniture


Dip Type 7mm 22V Metal Oxide Varistor With Epoxy Coat For Motorizes Furniture 0



If any questions or ideas,just please feel free to contact us, since we hold the opinion that any questions or trouble can be absolutely settled.

It is our hope, by joint effort, to promote both business and friendship to our mutual advantage.
