|Materia:||Metal & Ceramic||Power:||100W~5000W|
ptc ceramic heating element,
ceramic heater element,
Metal PTC Heating Element

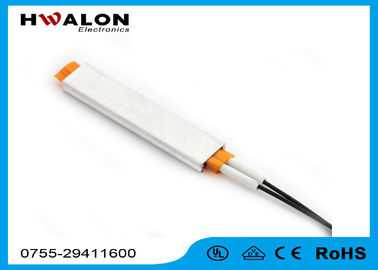

OEM ODM Factory Suppy Ceramic PTC Heating Element For Home Appliances
What is PTC heating element
PTC ceramic heater is adhesived by PTC ceramic heating components and aluminum.This type of PTC heater has the advantages of small thermal resistance, high heat transfer efficiency.And it is an automatic thermostat, power-saving electric heater. It is a prominent feature of the safety performance, will not produce such as heating tube heater surface "red" phenomenon,.It will not causing burns, fire and other security risks.
PTC ceramic heater using Notes
(1) PTC heating plate with automatic temperature characteristics, do not need temperature control system, the PTC heating plate can be directly powered.
(2) When the PTC heater is used to heat the liquid (such as water), the PTC heater does not damage when the liquid is dry.
(3) If the PTC heater is used to heat the cold air, the PTC heater will not be damaged when the air is not supplied.
(4) long life, the normal use of the environment, life expectancy of up to 10 years.
(5) reliable work, the use of PTC heating film internal temperature control, never over-temperature.
(6) the working voltage is very wide: when the working voltage changes 2 times, the surface temperature changes are very small.
(7) When multiple PTC heaters are used together, they should be connected in parallel and not in series.
|Operating voltage||110V / 240V|
|surface temperature||70 ℃ -300|
|Temperature tolerance||± 5 ℃;|
|Heater body||aluminium, anodised|
|Protection type/Protection class||IP54 / II (double insulated)|
|Approvals||VDE + UL|
For various usage: Hand dryer, cloth dryer, shoe dryer,hair straigthener, hair curler, hot glue gun, wax warmer,milk warmer etc.
