Ceramic Composition Overheat Protection PTC Thermistor 40℃ - 110℃ Switch Temperature

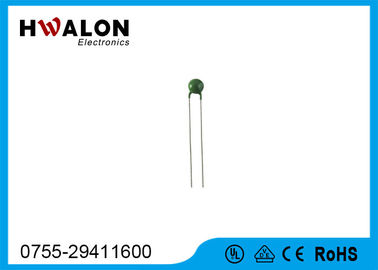

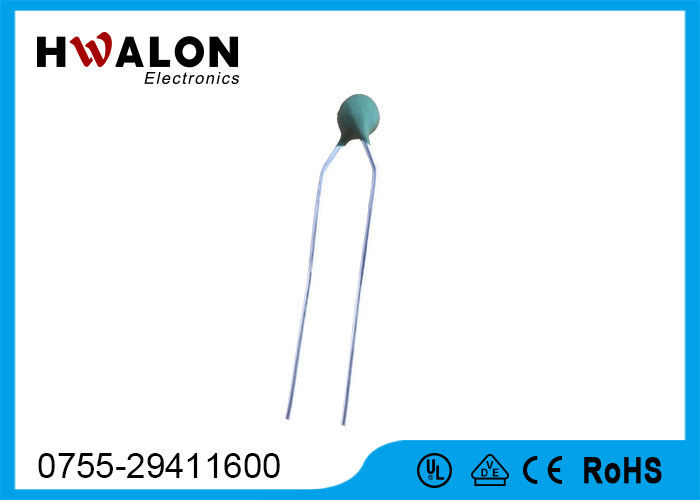

Large Image : Ceramic Composition Overheat Protection PTC Thermistor 40℃ - 110℃ Switch Temperature

Product Details:

Place of Origin:	China
Brand Name:	HWA
Certification:	RoHS,CE
Model Number:	PR6

Payment & Shipping Terms:

Minimum Order Quantity:	10,000pcs
Packaging Details:	CTN package, according to customer’s requirement if necessary
Delivery Time:	10 to 15 days
Payment Terms:	T/T, Western Union
Supply Ability:	1,000,000pcs

Contact Now

Detailed Product Description

Type:	Fixed Resistor	Protection Temperature:	30℃~150℃
Max. Current:	100mA	Technology:	Ceramic Composition
Color:	Green	Function:	Thermal Protection
Max. Voltage:	30V	Switch Temperature:	40℃~110℃
High Light:	PTC electronic component , fixed value resistor , Ceramic Composition PTC Thermistor

Ceramic Composition Overheat Protection PTC Thermistor 40℃ - 110℃ Switch Temperature

Part no. Selection:

part no.	max. voltage (V)	switch temp. ( ℃)	protection temp. ( ℃)	R25 ℃ ( Ω ) max	Rs-15 ℃ ( Ω)	Rs ( Ω)	max current(mA)
H6PR101R60	30	40	60	100	330	470	100
H6PR101R70	30	50	70	100	330	470	100
H6PR101R80	30	60	80	100	330	470	100
H6PR101R90	30	70	90	100	330	470	100
H6PR101R100	30	80	100	100	330	470	100
H6PR101R110	30	90	110	100	330	470	100
H6PR101R120	30	100	120	100	330	470	100
H6PR101R130	30	110	130	100	330	470	100
H6PR331R60	30	40	60	330	1500	2200	100
H6PR331R70	30	50	70	330	1500	2200	100
H6PR331R80	30	60	80	330	1500	2200	100
H6PR331R90	30	70	90	330	1500	2200	100
H6PR331R100	30	80	100	330	1500	2200	100
H6PR331R110	30	90	110	330	1500	2200	100

Dimensions:

type one: the first surface mount

Ceramic Composition Overheat Protection PTC Thermistor 40℃ - 110℃ Switch Temperature 0

type two: the second surface mount

Ceramic Composition Overheat Protection PTC Thermistor 40℃ - 110℃ Switch Temperature 1

type three: lead type

Ceramic Composition Overheat Protection PTC Thermistor 40℃ - 110℃ Switch Temperature 2

above dimensions are our conventinal dimensions, we can also OEM for customers.

Description and features:

PTC thermistor for overheat protection is a million-time device of automatic protection;
Recoverability, can be used repeatedly;
No trigger, noice or sparks;
Two shapes: lead type and surface mount type;
Lead material: tinned copper wire;
Electrode material: silver;
Welding material: tin-silver alloy;
Encapsulation material: green, silicone, flammability 94V-0.

Competitive Advantage:

1, Convenient installment and small size

2, No requirement for reseting after over-heat protection

3, Quick action

4, We can offer equivalent PTC thermistor of Thinking & TDK

5, Long life working time

6, Good stability

7, Wide range protection temperature: 30~150°C

Usages:

1, switching power supply

3, automatic lathe

4, transformers

2, electro-thermal oven

5, LED control panel

Typical application circuit: overheat protection circuit and overheat sensing heat.

high precision thermal protection Overheat Protection Thermistor for transformer, LED lighting

fatory picture:

Ceramic Composition Overheat Protection PTC Thermistor 40℃ - 110℃ Switch Temperature 5

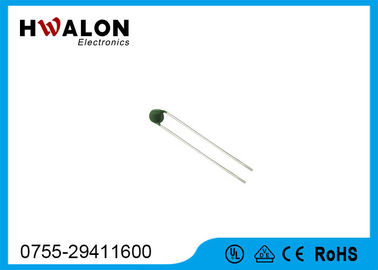

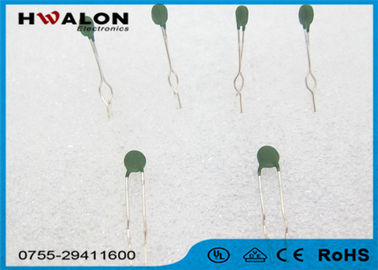

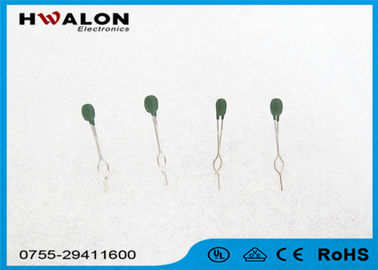

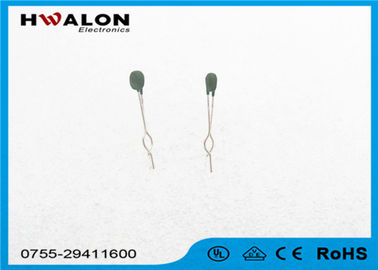

product picture:

Ceramic Composition Overheat Protection PTC Thermistor 40℃ - 110℃ Switch Temperature 7

Ceramic Composition Overheat Protection PTC Thermistor 40℃ - 110℃ Switch Temperature 11
