Electrical Customized Ceramic Heater Element Plate Shape Aluminium Sheath Material

Products

NTC Inrush Current Limiter Thermistor

NTC Thermistor Temperature Sensor

Overheat Protection Thermistor

Metal Oxide Varistor

sales02@hwalon.com

18520896931

Contact Now

Electrical Customized Ceramic Heater Element Plate Shape Aluminium Sheath Material

MOQ:	1000pcs
Price:	by negotiation
Standard Packaging:	1000pcs/carton
Delivery Period:	7-10 working days
Payment Method:	T/T, Western Union
Supply Capacity:	100000/month

Detail Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

Hwalon

Certification

CE UL

Model Number

PR4

Package Type:

Throught Hole

Warranty:

1 Year

Shape:

Plate

Power:

400w

Sheath Material:

Aluminium

Color:

Silver Gray

Application:

Home Applicance

Resistance:

1Ω-5000Ω

Highlight:

ptc ceramic heating element

ptc heater element

Product Description

12-380V PTC thermistor Electrical Customized Ceramic Heater For Air Fan Heater Cloths Dryer

Detailed parameters

Length(mm)	Width(mm)	Thickness(mm)	Insulation voltage(V)	Switch temperature(°C)	Fan speed(m/s)	Power(w)
49	44.5	15	3750	220	3.3	400

Features

1.	Not sensitive to voltage fluctuating
2.	PTC heater safety, environmental protection
3.	With characteristics of constant temperature
4.	It is safe when liquid is burnt out in liquid heating device
5.	PTC heater does not require temperature controlling system
6.	Heating power(W) and self-regulating function are in correlation to the heat dissipation rate.

Applications

1.	water-boiling equipment
2.	shoe-drying apparatus
3.	hair curler, hair straightener
4.	mosquito-driving apparatus
5.	heating board, mosquito repeller
6.	Air-heating, wind-warming equipment, air-conditioner

Description:

1. Internal safety-fuse protection.
2. Water-proof, no electricity leakage or cause a short circuit.
3. The higher the temperature, the more power efficient.
4. When heated under no airflow, does not crack, burst or burn.

5. Does not cause oxygen shortage when used for a long time.
6. Heating power and self-regulating function are in correlation to the heat dissipation rate.
7.. Current will automatically cut-off to prevent abnormal large current or other external factors causing safety concerns.

How to Order

1. Application of the PTC heater : _______

2. The working environment of the PTC heater:______

3. The range of operating temperature:___℃to ____℃

*4. Dimension of the PTC heater: _______

*5. R(25) Value :_____

*6. Surface Temperature:_____

*7. Rated Voltage:_____

*8. Need insulated or not :_____

* Fill “*” items necessarily

Packing:

Each product will be packed in the carton.

The outer cartons of the goods, which white plastic strap is pasted, to keep from busting out once the goods are facing creaking and striking.

In general, the goods can be sent to you by Express UPS. TNT, Fedex, etc , by air., by sea, any way you like.

Shipping

1. FedEx/DHL/UPS/TNT for samples, Door-to-Door
2. By Air or by Sea for batch goods, for Airport/ Port receiving
3. Customers specifying freight forwarders or negotiable shipping methods
4. Delivery Time: 3-5 days for samples; 7-10 days for batch goods

Our service

1. We offer excellent quality, the best service, favorable price and prompt delivery for our every customer.

2. We have after-sales services to help our customers by using the products.

3. We can customize the product according to relative requirements of our customers.

4. Your related to the inquiry about our product will be replied in 12 hours.

5. Shipping by us( DHL, NTN, FedEx, EMS, UPS and by Sea), or by your agent.

6. Payment by T/T, Western Union.

7. Delivery within 3-5 days to sample order, 7-10days to bulk order.

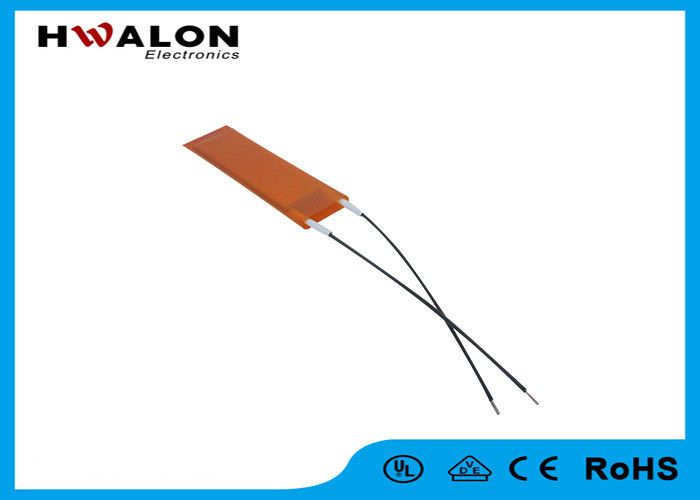

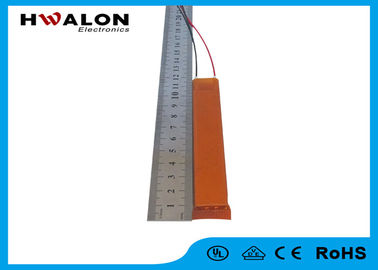

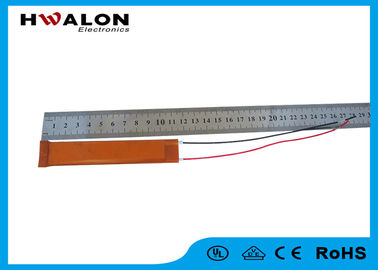

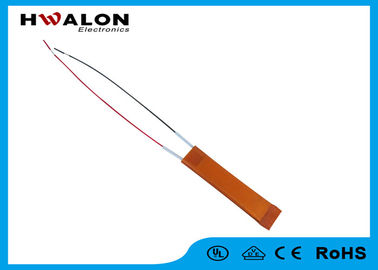

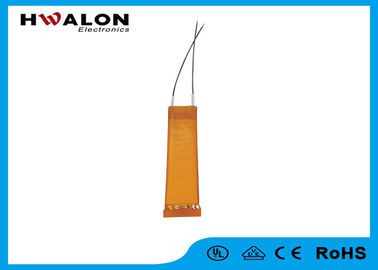

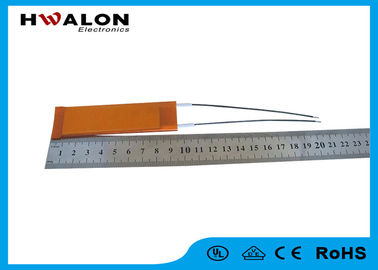

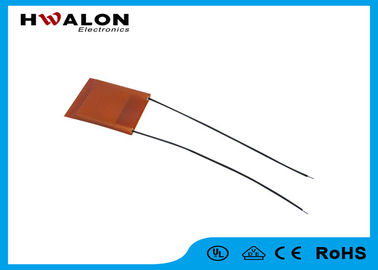

Product picture:

Electrical Customized Ceramic Heater Element Plate Shape Aluminium Sheath Material 0

Electrical Customized Ceramic Heater Element Plate Shape Aluminium Sheath Material 1
