|Place of Origin:||China|
|Minimum Order Quantity:||5000|
|Packaging Details:||bulk package|
|Delivery Time:||Usually 15 days after payment.|
|Payment Terms:||T/T, Western Union|
|Packing Type:||Bulk Pack & Reel Pack||Item Color:||Green|
|Max. Operating Voltage:||20V~265V||Restore Time:||60s|
|Rated Voltage:||12V~220V||Technology:||Ceramic Composition|
|Operating Temp. Range:||-25℃~125℃||Place Of Origin:||Guangdong|
inrush current limiting thermistor,
NTC inrush current limiter

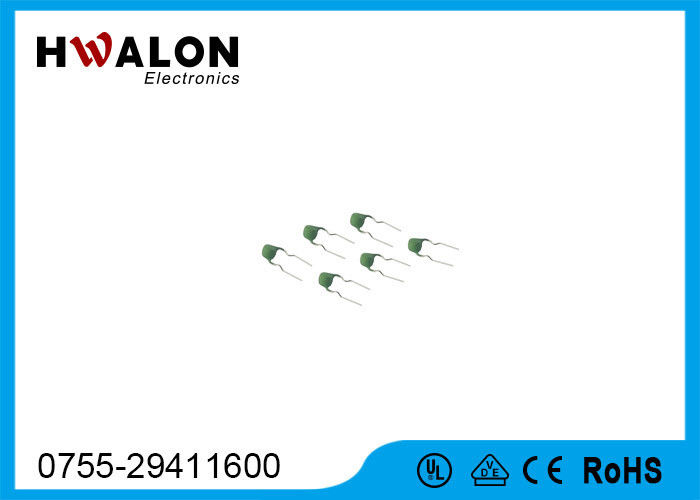

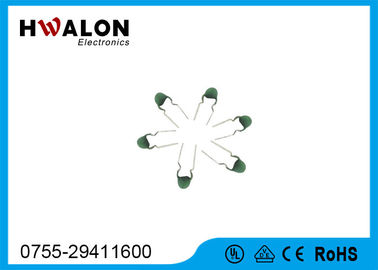

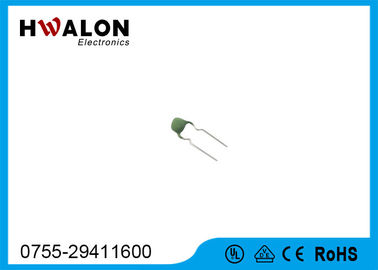

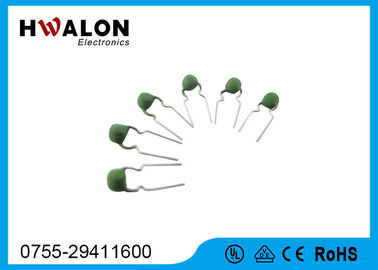

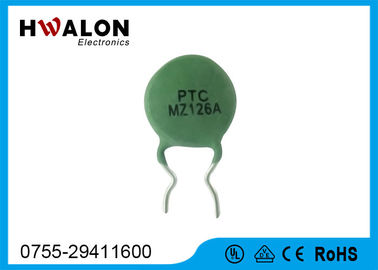

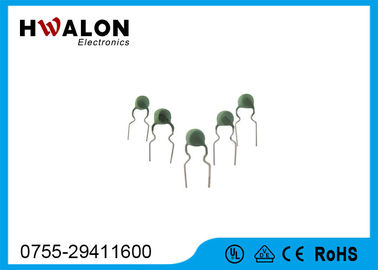

High Stability PR2 PTC Inrush Current Limiter Thermistor Epoxy Sealed Energy Efficient
1. PTC thermistor for overcurrent and overload protection is a million-time device of automatic protection, recoverability, using repeatedly, and no trigger, noice or sparks.
2. When PTC is in the normal state, the resistance is too low to affect the regular work of the protected circuit such as the voltage transformer's primary and secondary loops.
3. When the circuit is in disorder, the PTC will generate heat suddenly, and the resistance value will go up to the high state, which make the circuit in the state of relatively "reaking up" to protect the circuit.
1. Price advantages:reasonable and competitive;
2. We are manufacturer and possess strong strength;
3. We can supply you directly, save the agent fees and reduce your cost;
4. Big order comes with big discount, trial orders are also welcome;
5. Reply your enquiry within 24 hours;
6. Do our utmost to meet your demands, such as products information, sample, packing , price, shipping etc.
7. Deliver professional advice for you to buy a satisfactory product at a competitive price to meet your requirements as we can.
1. Surges due to lighting strikes on or near to the line plant.
2. Short-term induction of alternating voltage from adjacent power lines or railway systems, usually when these lines or systems occur fault.
3. Direct contact between telephone lines and power lines.
Switching power supply
air-conditioner and other household appliances
LED control panel
overcurrent protection of terminals
|No.||Part no.||Vmax (v)||non-trip current (mA) @25 ℃||non-trip current (mA) @60 ℃||trip current (mA) @25℃||resistance( Ω ) ±25%||Imax (A)||switch temp.||D(max)||T(max)||d|
|1||H2PR151RH03LB265||265||22||15||45||150||0.2||80 ℃ ±7℃||4.5||5.0||0.5|
|2||H2PR101RH03LB250||250||25||18||55||100||0.2||80 ℃±7 ℃||4.5||5.0||0.5|
|3||H2PR70RH05LB250||250||50||30||100||70||0.3||80 ℃±7 ℃||6.5||5.0||0.5|
|4||H2PR121RH05LB265||265||30||20||60||120||0.3||80 ℃±7 ℃||6.5||5.0||0.5|
|5||H2PR101RH07LB265||265||50||30||100||100||0.6||80 ℃±7 ℃||8.0||5.0||0.6|
|6||H2PR12RH08LB250||265||120||70||220||12||0.8||80 ℃±7 ℃||9.0||5.0||0.6|
|7||H2PR25RH08LB265||265||85||50||170||25||0.8||80 ℃±7 ℃||9.0||5.0||0.6|
|8||H2PR35RH08LB265||265||80||50||150||35||0.8||80 ℃±7 ℃||9.0||5.0||0.6|
|9||H2PR50Rh08LB265||265||60||40||120||50||1.0||80 ℃±7 ℃||9.0||5.0||0.6|
|10||H2PR70RH03HE250||250||45||35||90||70||0.1||100 ℃±7 ℃||4.5||5.0||0.5|
|11||H2PR101RH03HE250||250||40||30||80||100||0.2||100 ℃±7 ℃||4.5||5.0||0.5|
High Stability Inrush Current Limiter Thermistor Epoxy Sealed PTC Thermistor
If any questions or ideas,just please feel free to contact us, since we hold the opinion that any questions or trouble can be absolutely settled.
It is our hope, by joint effort, to promote both business and friendship to our mutual advantage.
