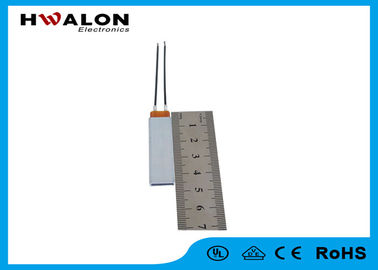

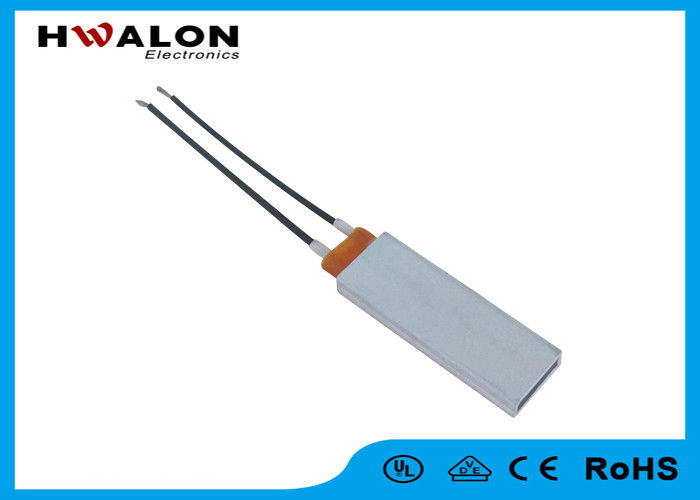

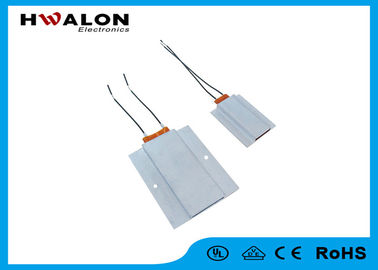

Custom Insulated PTC Ceramic Heater Element 200w AC / DC 12v With Aluminum Plate

Custom Insulated PTC Ceramic Heater Element 200w AC / DC 12v With Aluminum Plate

  • Custom Insulated PTC Ceramic Heater Element 200w AC / DC 12v With Aluminum Plate
  • Custom Insulated PTC Ceramic Heater Element 200w AC / DC 12v With Aluminum Plate
  • Custom Insulated PTC Ceramic Heater Element 200w AC / DC 12v With Aluminum Plate
Custom Insulated PTC Ceramic Heater Element 200w AC / DC 12v With Aluminum Plate
Product Details:
Place of Origin: CHINA
Brand Name: Hwalon
Certification: CE UL
Model Number: PR4
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: by negotiation
Packaging Details: carton
Delivery Time: 7-10 working days
Payment Terms: T/T, Western Union,paypal
Supply Ability: 100,000pcs/month
Contact Now
Detailed Product Description
Surface Temperature: 70℃-290℃ Power: 80-300W
Rated Voltage: 12V/24V/110V/240V Resistance: 1-330ohm
Size: Custom Made Temperature Tolerance: ≤±5℃
Highlight:

ptc ceramic heating element

,

ceramic heater element


Insulated PTC Heating Element Ceramic Heater Parts 200w AC / Dc 12v Egg Incubator



PTC heating elements:

1. Safety
2. When the power stable, it will give out the constant temperature continuous
3. Keep steady power
4. It can control the temperature by itself
5. Used in large range of voltage from 12V to 240V
6. Dimension is nimble various


Features:
1) With the characteristic of constant temperature ,the PTC heater does not need the temperature-controlling system.
2) If the PTC heater is used to the heater the cold wind ,it will not be destroyed when the wind is stopped.
3) If the PTC heater is used to heat the liquid,it will not be destroyed when the liquid is burnt to be dry.
4) Not sensitive to voltage fluctuating,and wide range of operating voltage.
5) Restore automatically after invalidation.



Surface temperature 80℃~290℃
operating voltage 12V/24V/110V/240V DC/ AC
Temperature tolerance ±5℃
Insulation withstand voltage > 3750V
Rated power 20W ~ 2000W
R25 Value 1-5000ohms
Withstand Voltage 400-900V




Typical Applications:

1. Coffee Maker
2. Heating Plates
3. Drying Machines
4. Hair Dryer, Hair straightener, hair curler
5. Diesel Heater
6. Paraffin melter

Custom Insulated PTC Ceramic Heater Element 200w AC / DC 12v With Aluminum Plate 0
Parameters:

PTC size Voltage(V) Temperature(℃)
30-120*20*5mm 100-240V 60℃-280℃
30-120*30*6mm 100-240V 60℃-280℃
30-120*33*7mm 100-240V 60℃-280℃
30-120*35*7mm 100-240V 60℃-280℃
30-120*40*7mm 100-240V 60℃-280℃
30-120*43*7mm 100-240V 60℃-280℃
30-120*46*7mm 100-240V 60℃-280℃
30-120*56*7mm 100-240V 60℃-280℃





Custom Insulated PTC Ceramic Heater Element 200w AC / DC 12v With Aluminum Plate 1


Custom Insulated PTC Ceramic Heater Element 200w AC / DC 12v With Aluminum Plate 2

Custom Insulated PTC Ceramic Heater Element 200w AC / DC 12v With Aluminum Plate 3
How to Order:
1. Application of the PTC heater : _______
2. Working environment of the PTC heater :______
3. The range of operating temperature:___℃to ____℃
*4. Dimension of the PTC heater: _______
*5. R(25) Value :_____
*6. Surface Temperature:_____
*7. Power:_____

* Fill “*” items necessarily




FAQ

  Question Answers
1 What is the MOQ? 1000pcs.
2 What is the payment terms? Negotiation.
3 Can you accept special requirement? Yes,we can.We can design for your special requirement.
4 Can you make the printing artworks(such as user manual/packing/rating label) in our language Yes,we can.We do OEM work for long time
5 Can we order samples: Yes ,you can . Free samples are available




Hwalon Electronic Limited
★ with 15 years experience on PTC and  NTC temperature sensor field.
★ Competitive price
★ On time handle over
★ Competitive price
★ Inquiry answered in 24hrs
★ Good team waiting here to serve for you
★ RoHS &UL compatible
★ OEM & ODM business accept
★ Main Market:Europe,North America,Asia

Custom Insulated PTC Ceramic Heater Element 200w AC / DC 12v With Aluminum Plate 4
