| Area 3, block B, huafeng huayuan science&technology innovation park, bao'an district, shenzhen, guangdong, china | market@hwalon.com |
 |
| Place of Origin: | CHINA |
| Brand Name: | Hwalon |
| Certification: | RoHs CE UL |
| Model Number: | PR4 |
| Minimum Order Quantity: | 1000pcs |
|---|---|
| Price: | by negotiation |
| Packaging Details: | 30PCS~60PCS /Carton |
| Delivery Time: | 7-20 Working days |
| Payment Terms: | T/T, Western Union,paypal |
| Supply Ability: | 100,000pcs/month |
| Power: | 100-3500W | Rated Voltage: | 50-420v |
|---|---|---|---|
| Outlet Air Temperature: | 20- 100C | Application: | Home Applicance, Electronic Energy Saving Cars |
| Heat Sink: | Aluminum Welding Sink | Material: | Aluminum Plate And PTC Heater And Frame |
| High Light: | PTC electric heater,electric PTC heater |
||

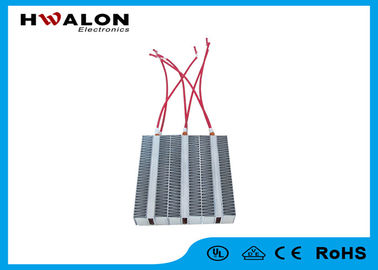

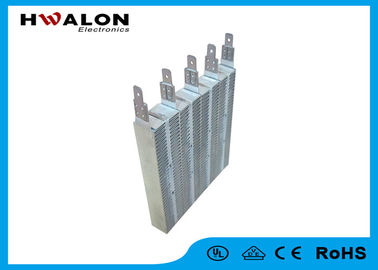

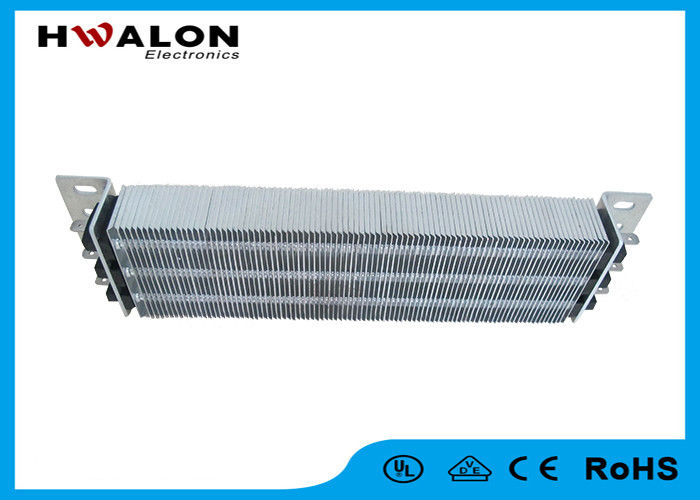

Heating element PTC Ceramic air Heater for Dehumidifier 3KW 110V 220V 420V for Electric Car Heater
Application:
1. This type PTC heater can make large power up to 3KWeach plate, It has widely application range, can be used for electronic energy car, air conditioner, Air Curtain, dehumidifier, air heater etc.
2, other PTC heater:
1). Fan heating element for ceramic heater fan, hair dryer, hand dryer, clothes dryer, dish dryer etc.
2). Other shapes of heating element can be used for mosquito repellent, liquid warmer, control devices etc.
3). Heating plates for coffee makers, steam irons, cooking devices, facial sauna, humidifier etc.
4). Tube heating elements for curing irons, wax-warmer, glue gun, dehumidifier etc.
Typical Application:
| 1 | Ceramic heater fan, hair dryer, hand dryer, clothes dryer, dish dryer |
| 2 | Coffee makers, steam irons, cooking devices, facial sauna, humidifier |
| 3 | Physical treatment, massage apparatus, biology heating |
| 4 | Control devices, Mosquito repellent, liquid warmer, |
Parameters of ptc air heater:
| PTC Air Heater Model | ||||
| Model | Dimension (mm) | Aluminum Tubes |
Fin Width (mm) |
Fin Pitch (mm) |
| SS |
148mm × 44.5mm × 15 mm 148mm × 22.5mm × 15 mm 120mm × 107mm × 15 mm 96mm × 88.5mm × 15 mm 96mm × 22.5mm × 15 mm 25mm × 22.5mm × 15 mm 45mm × 44.5mm × 15 mm
|
N/A | N/A | N/A |
Custom-made service is available.
Dimension: Standard thickness is 15mm, and width and length is up to clients' requirement. we offer custom-made solution.
Voltage : AC/DC 12V/24V/48V/72V/120V/240V/300V/400V/480V/560V
Power: 50w-3000w.
Surface temperature: up to 300℃
Electricity Type : there are three type, fin type and ripple insulated and ripple uninsulated type, depends on your need
Frame: can be metal or plastic which is up to your need, and plastic frame need to open mould.
Specifications:
| No. | Part No. | Resistance | Surf. temp. | Max voltage | Length | Width | Thickness |
| 1 | H4PR140RA16K100 | 7-20 | 100 | 20 | 16 | 11 | 2 |
| 2 | H4PR102RA19K100 | 600-1500 | 100 | 270 | 16 | 11 | 2.5 |
| 3 | H4PR142RA19K230 | 800-2000 | 230 | 270 | 19 | 12 | 2.2 |
| 4 | H4PR102RA20K110 | 500-1500 | 110 | 270 | 23.5 | 10 | 2.2 |
