|Place of Origin:||CHINA|
|Minimum Order Quantity:||1000pcs|
|Delivery Time:||7-10 working days|
|Payment Terms:||T/T, Western Union|
|Thickness:||2.8-3.6mm||Rated Voltage:||12-240V AC/DC Or Customized|
|Resistance:||10Kohms||Package Type:||Throught Hole|
ptc ceramic heating element,
ceramic heater element

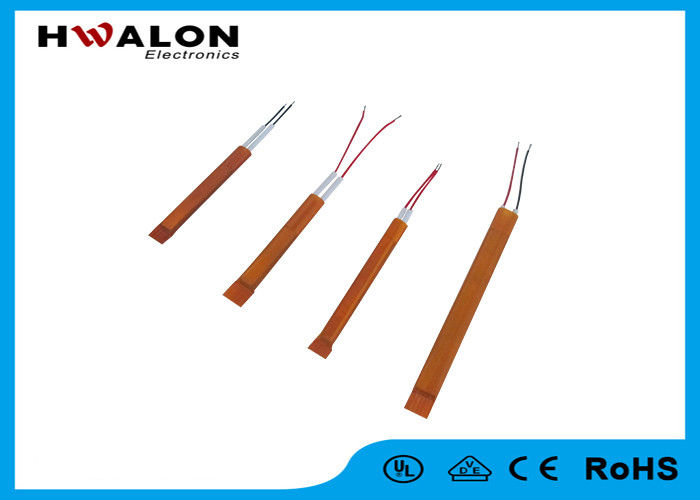

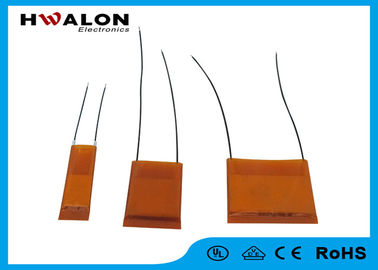

Wax heater/ with insulation film PTC Heating Element 1 - 5000ohms Ceramic Heating Element for wax
1. it is very popular and used in a lots of application like Wax, shoe-drying apparatus ,hair curling equipment
2. physical treatment, massage apparatus,biology heating
3. air-heating,wind-warming equipment ,cold and warm air-conditioner
4. mosquito-driving apparatus,boiled-water equipment,heating board
1. Dimension is nimble various, may need according to customer reality book make various type specifications.
The PTC Heating element is used for hair permanent clamp, hair curler, face sauna, heat preservation plate, electric mosquito killer, physical therapy apparatus, hot melt glue gun.
3. Give out heat continuously and keep stady power
4. It is used in a large range of voltage
5. Longer service time
6. Higher reliability
7. Simple structure heater gives out constant-temperature heat and not need any additional temperature applications.
Parameters of battery powered heating element :
|length||width||thickness||temperature||voltage||the length of the cable|
|70mm||13mm||3.1mm||275 Centidegree||220V/110V||150mm(length as per your request)|
|70mm||12mm||3.1mm||255 Centidegree||220V/110V||155mm(length as per your needed)|
|64mm||12mm||2.9mm||230 Centidegree||220V/110V||250MM(length as per your interested in)|
|52mm||12mm||3.1mm||180 Centidegree||220V/110V||150mm(length as per your request)|
|35mm||10mm||2.8mm||220 Centidegree||220V/110V||55mm( as per your interested in )|
|24mm||8mm||3.1mm||160 Centidegree||220V/110V||120mm( length as per your needed)|
|220V/110V||125mm(length as per your request)
PTC heating elements:
1. Working Voltage rang: 12-240V AC/DC or customized
2. Surface Temperature: 70°C~300°C , the temperature tolerance less than ±5°C.
3. The lead wire, fiber glass sleeve, insulate film and shells can customized according to per customers requirements.
Unlike traditional heating elements that use a resistance wire such as Nichrome to generate heat,PTC heating elements are made as ceramic stones, ase on barium titanate.
They have unique characteristics as semeconductors and their ferro-electric propertise can be precisely determined during their design.
How to Order:
1. Application of the PTC heater : _______
2. Working environment of the PTC heater :______
3. The range of operating temperature:___℃to ____℃
*4. Dimension of the PTC heater: _______
*5. R(25) Value :_____
*6. Surface Temperature:_____
* Fill “*” items necessarily
