15*70mm High Temperature Ceramic MCH Heating Plate Dry-fired 100℃-230℃ 500℃-700℃ Electric Heater for Hair straightener 230R 15*70mm

15*70mm High Temperature Ceramic MCH Heating Plate Dry-fired 100℃-230℃ 500℃-700℃ Electric Heater for Hair straightener 230R 15*70mm

Product Introduction:

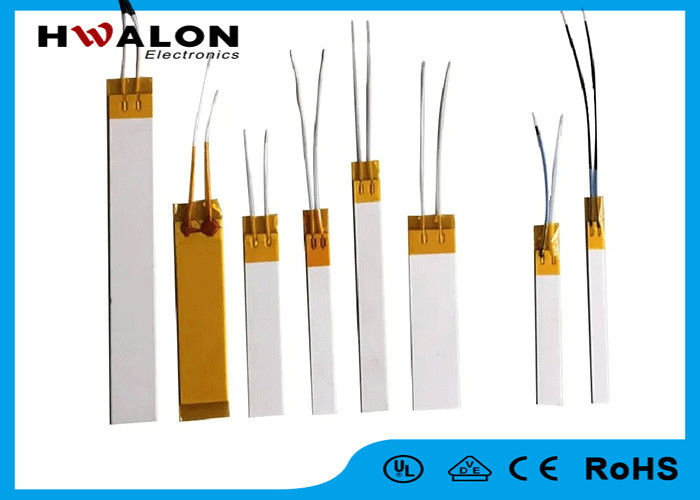

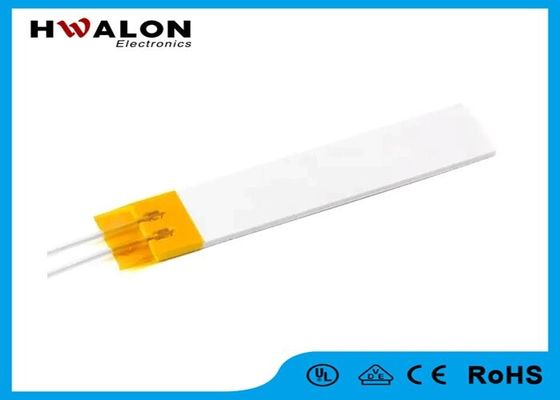

This product is a high-temperature ceramic heating element, mainly characterized by insulation between the heating element and air, resistance to acid, alkali and other corrosive substances, high thermal efficiency, uniform heating, and energy saving. Rapid heating, fast temperature compensation, high power density, high heating temperature, up to 500 ℃ or above, ultra-thin and durable, environmentally friendly material with minimal volatile gas, energy-saving and safe.

Product parameters:

R=1 Typical power 5V25W to 12V144W

R=2 typical power 5V12W~12V70W~24V280W

R=5 Typical power: 5V5W~12V28W~24V115W~36V260W

R=10 Typical power 5V2.5W~12V15W~24V58W

R=20 Typical power 5V1.3W~12V7.2W~24V28W~36V65W~48V115W

R=230 typical power 220V210w

R=375 typical power 220V120W

Appearance size: 15 * 70 * 1.2mm (ceramic heating element)

Instructions for use:

Select R= in the category? It is the resistance value, and the maximum power can be calculated by the resistance value. Its operating temperature is linear, such as a maximum of 100V, a maximum of 500 degrees, and 0-100V is OK. This heating plate can reach a maximum of 500-600 degrees, as long as it does not exceed this temperature. It is your choice to choose how much voltage to use. It is recommended to start the test from low voltage or add a thermostat. As for the resistance in the category, the smaller the resistance, the greater the power, the faster the heating speed, and the higher the temperature. The larger the resistance, the smaller the power, the slower the heating speed, and the lower the temperature. Current = voltage divided by resistance Power = voltage multiplied by current. For example: R=500 If the power is 220V, then the current is 220 divided by 500=0.44A Power = 220V*0.44=96.8W

Delivery and Packing:

FAQ:

Q: Are you trading company or manufacturer ?

A: We are professional PTC factory.

Q: Can you customize different requirements products?

A: Sure, we have a professional R & D team, so we can customize different sizes, power, voltage... according to your specific requirements.

Q: How long is your delivery time?

A: Generally it is 1-3 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: 100% in advance.
