PRODUCTS DETAILS

Home > Products >

High Temperature 800 Degree Metal Ceramic Heater for Oxygen Sensor MCH 3.7V 5V 12V Ring Shape Ceramic Heating Element Plate

Products

NTC Inrush Current Limiter Thermistor

NTC Thermistor Temperature Sensor

Overheat Protection Thermistor

Metal Oxide Varistor

sales02@hwalon.com

18520896931

Contact Now

High Temperature 800 Degree Metal Ceramic Heater for Oxygen Sensor MCH 3.7V 5V 12V Ring Shape Ceramic Heating Element Plate

MOQ:	500pcs
Price:	0.8-1.2usd/pcs
Standard Packaging:	cartons
Delivery Period:	7-10 work days
Payment Method:	T/T, Western Union
Supply Capacity:	100000pcs/week

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HWALON

Certification

ROHS,CE

Model Number

round MCH

Material:

Alumina Ceramic

Moulding Color:

White/Ivory

Voltage:

3.7V-240V

Application Field:

Soldering Iron, Oxygen Sensor, Vaporizer, Other Heating Instruments

Shape:

Rectangular, Round, Tube

Size:

Customized

Highlight:

12V MCH Ceramic Heater

5V MCH Ceramic Heater

3.7V MCH Ceramic Heater

Product Description

MCH 3.7V 5V 12V Ring Shape Ceramic Heating element Plate High Temperature 800 Degree Metal Ceramic Heater for Moxibustion, Coffee Machine, Car Water Heatet Up

Design Structure:

Ceramic Heaters are manufactured by printing resistors on alumina sheets,being laminated and sintered into one pieces.

Types:

■ Rectangular alumina ceramic heating element

■ Round shape alumina ceramic heating element

■ Rod shape alumina ceramic heating element

■Tube shape alumina ceramic heating element

Dimension	OD7*T0.6	Resistance range(Ω): 0.4-0.6
	OD11*T0.8	Resistance range(Ω): 0.3-0.4
	OD24*T1.2	Resistance range(Ω): 3.7-4.5/10-13/16-22/9-11/11.3-13.7
	OD20*T1.2	Resistance range(Ω): 17-20/7.5-8.8/1.5-2.0
	OD14*T1.2	Resistance range(Ω): 95-101/70-84/110-145/200-290/140-170/25.5-30.5/25-33/270-330/100-120
	OD30*T1.2	Resistance range(Ω): 1.4-1.69/0.8-1.1/12-16/4-5/1.7-2.1/2.53-2.77/2.0-2.53/2.5-2.8
	OD38*T1.2	Resistance range(Ω): 2.0-2.59/450-550/2.5-3.2/5-6/2.6-3.2
Rated Voltage	5V, 12V, 24V ( all can be customized )
Application	Moxibustion, Coffee Machine, Car Water Heatet Up ... ...

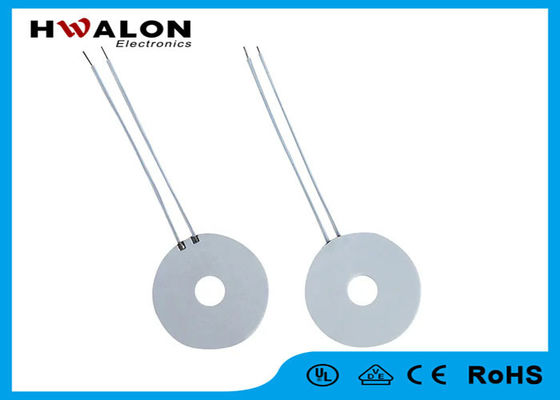

High Temperature 800 Degree Metal Ceramic Heater for Oxygen Sensor MCH 3.7V 5V 12V Ring Shape Ceramic Heating Element Plate 0

Configuration and Dimensions:

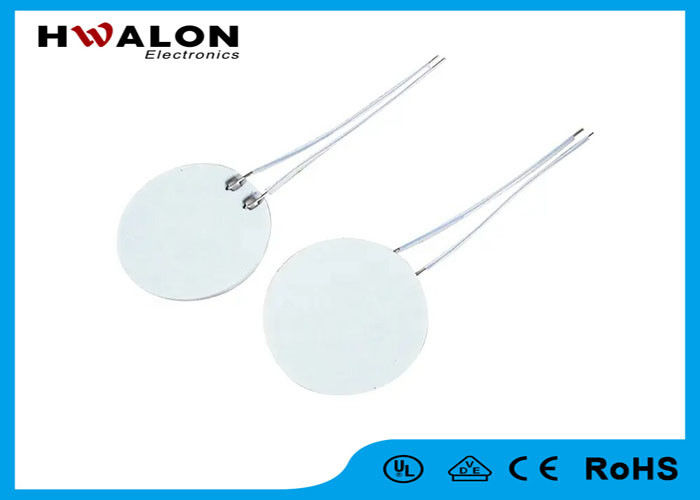

High Temperature 800 Degree Metal Ceramic Heater for Oxygen Sensor MCH 3.7V 5V 12V Ring Shape Ceramic Heating Element Plate 1

Design	Diameter/Length/Width	Tolerance	Thickness
Tube/Rod	D:2.5~12 L:10~120	D: Above 8mm±0.3mm, Below8mm±0.2mm L:Above80±2.0mm Below80mm±1.0mm
Plate:Square	L: 10~100 W: 5-50	Above:70 ±2mm Below:70±1mm	0.5~2
Plate:Round	D:10~70	Above:30 ±2mm Below:30±1mm	0.5~2

Advantage:

* Compact, Lightweight and Energy Efficient

■ High watt density, good thermal efficiency

■ Multiple heating elements per unit is available

■ Withstand high temperature

* Superior Thermal Properties

■ Rapid Heat Increase

■ Excellent thermal conductivity and thermal compensation rate.

■ Custom designed temperature distribution available

■ High levels of insulation allow direct contact with water,

kerosene and metal and water

* Environmental Qualities

■ lectric noise

■ ergy-saving due to the superior thermal efficiency

■High cost performance

* High Reliability

■ Superior dielectric strength and electrical insulation

■ Longer life Circle due to oxidation-proof design

■ Superior chemical resistance, corrosion-resistance

FAQ:

Q: Are you trading company or manufacturer ?

A: We are professional PTC factory.

Q: Can you customize different requirements products?

A: Sure, we have a professional R & D team, so we can customize different sizes, power, voltage... according to your specific requirements.

Q: How long is your delivery time?

A: Generally it is 1-3 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: 100% in advance.
