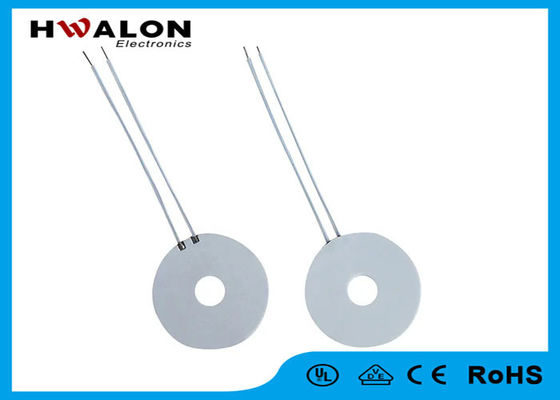

MCH 3.7V 5V 12V Ring Shape Ceramic Heating element Plate High Temperature 800 Degree Metal Ceramic Heater for Moxibustion, Coffee Machine, Car Water Heatet Up
Design Structure:
Ceramic Heaters are manufactured by printing resistors on alumina sheets,being laminated and sintered into one pieces.
Types:
■ Rectangular alumina ceramic heating element

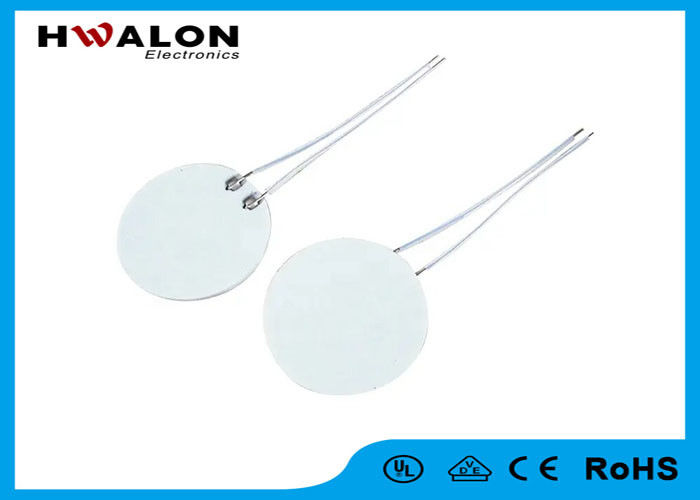

■ Round shape alumina ceramic heating element
■ Rod shape alumina ceramic heating element
■Tube shape alumina ceramic heating element
|
Dimension
|
OD7*T0.6 |
Resistance range(Ω): 0.4-0.6 |
| |
OD11*T0.8 |
Resistance range(Ω): 0.3-0.4 |
| |
OD24*T1.2 |
Resistance range(Ω): 3.7-4.5/10-13/16-22/9-11/11.3-13.7 |
| |
OD20*T1.2 |
Resistance range(Ω): 17-20/7.5-8.8/1.5-2.0 |
| |
OD14*T1.2 |
Resistance range(Ω): 95-101/70-84/110-145/200-290/140-170/25.5-30.5/25-33/270-330/100-120 |
| |
OD30*T1.2 |
Resistance range(Ω): 1.4-1.69/0.8-1.1/12-16/4-5/1.7-2.1/2.53-2.77/2.0-2.53/2.5-2.8 |
| |
OD38*T1.2 |
Resistance range(Ω): 2.0-2.59/450-550/2.5-3.2/5-6/2.6-3.2 |
| Rated Voltage |
5V, 12V, 24V ( all can be customized ) |
| Application |
Moxibustion, Coffee Machine, Car Water Heatet Up ... ... |
Configuration and Dimensions:
| Design |
Diameter/Length/Width |
Tolerance |
Thickness |
| Tube/Rod |
D:2.5~12 L:10~120 |
D: Above 8mm±0.3mm, Below8mm±0.2mm L:Above80±2.0mm Below80mm±1.0mm |
|
| Plate:Square |
L: 10~100 W: 5-50 |
Above:70 ±2mm
Below:70±1mm |
0.5~2 |
| Plate:Round |
D:10~70 |
Above:30 ±2mm
Below:30±1mm |
0.5~2 |
Advantage:
* Compact, Lightweight and Energy Efficient
■ High watt density, good thermal efficiency
■ Multiple heating elements per unit is available
■ Withstand high temperature
* Superior Thermal Properties
■ Rapid Heat Increase
■ Excellent thermal conductivity and thermal compensation rate.
■ Custom designed temperature distribution available
■ High levels of insulation allow direct contact with water,
kerosene and metal and water
* Environmental Qualities
■ lectric noise
■ ergy-saving due to the superior thermal efficiency
■High cost performance
* High Reliability
■ Superior dielectric strength and electrical insulation
■ Longer life Circle due to oxidation-proof design
■ Superior chemical resistance, corrosion-resistance
FAQ:
Q: Are you trading company or manufacturer ?
A: We are professional PTC factory.
Q: Can you customize different requirements products?
A: Sure, we have a professional R & D team, so we can customize different sizes, power, voltage... according to your specific requirements.
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 100% in advance.
