| Area 3, block B, huafeng huayuan science&technology innovation park, bao'an district, shenzhen, guangdong, china | market@hwalon.com |
 |
| Place of Origin: | CHINA |
| Brand Name: | Hwalon |
| Certification: | CE UL |
| Model Number: | PR4 |
| Minimum Order Quantity: | 1000pcs |
|---|---|
| Price: | by negotiation |
| Packaging Details: | 100pcs/carton |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100,000pcs/month |
| Power: | 800-2500W | Rated Voltage: | 50-270v |
|---|---|---|---|
| Resistance: | 8-3500ohm | Application: | Home Applicance |
| Heat Sink: | Aluminum Welding Sink | ||
| High Light: | PTC electric heater,electric PTC heater |
||

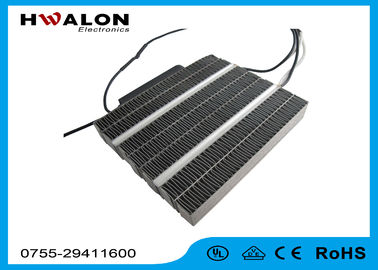

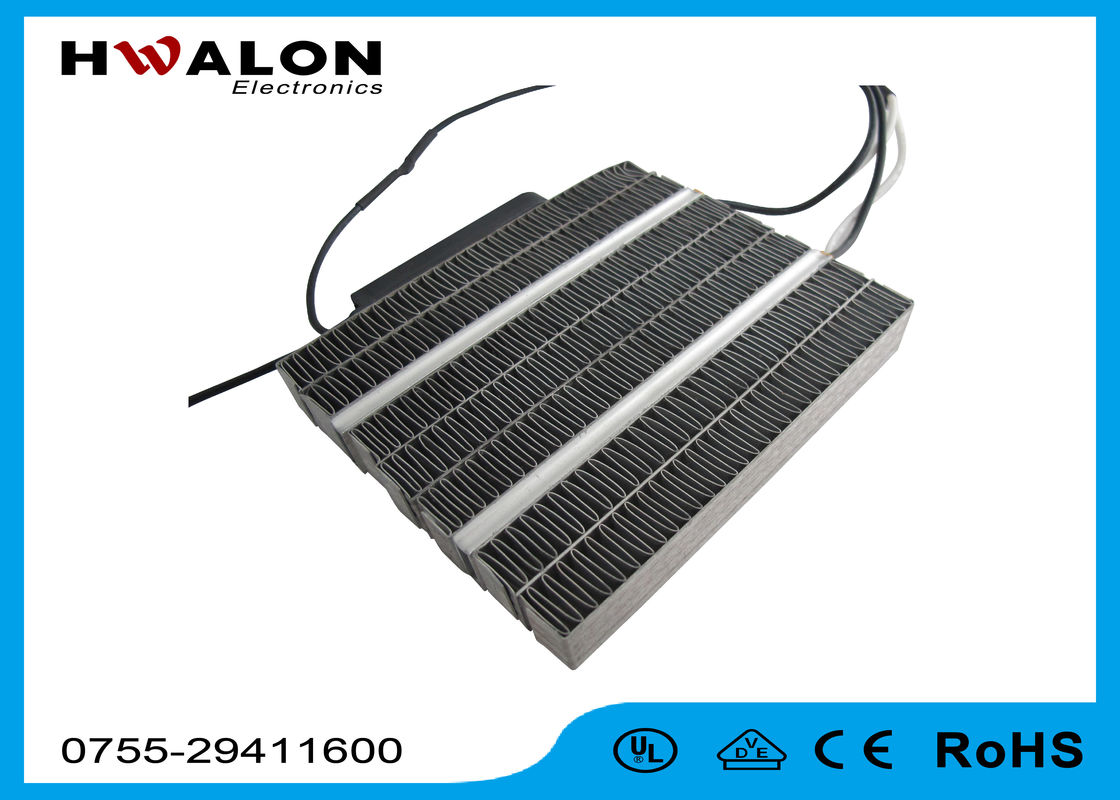

1000w 220V surface insulated air heating electric ptc heater with temperature safety limiter
Features & Specification:
1. PTC semiconductor chip is adopted as core heating element
2. Plug-and-play, fast temperature increase
3. Efficient in converting electricity into heat, energy efficient
4. Double insulation design, automatic constant temperature maintaining
5. Quiet operation, no oxygenation, and open flame, secure and comfortable us.
6. Voltage surge endurable, moisture-resistant and long lifespan.
7. Aluminum is adopted as heat emission material, smooth surface, perfect contact and efficient heat emission.
8. Surface temperature: 100 to 290
9. Rated voltage: 100 to 250V AC and 12 to 36V DC
10. Insulation resistance: ≥ 100M Ω
11. Withstand voltage: 3750V AC/2 seconds
12. Creep age current: ≤ 0.5mA
| Operating voltage | 12-240V AC/DC or customized |
| Heating element | PTC resistor, temperature limiting |
| Heater body | aluminium, anodised |
| Mounting | screw fixing |
| Fitting position | variable |
| Operating/Storage temperature | -45 to +70 °C (-49 to +158 °F) |
| Operating/Storage humidity | max. 90 % RH (non-condensing) |
| Protection type/Protection class | IP54 / II (double insulated) |
| Approvals | CE |
| Note | other voltages on request |
Specifications:
| no. | part No. | resistance | surf. temp. | max voltage | length | width | thickness |
| 1 | H4PR140RA16K100 | 7-20 | 100 | 20 | 16 | 11 | 2 |
| 2 | H4PR102RA19K100 | 600-1500 | 100 | 270 | 16 | 11 | 2.5 |
| 3 | H4PR142RA19K230 | 800-2000 | 230 | 270 | 19 | 12 | 2.2 |
| 4 | H4PR102RA20K110 | 500-1500 | 110 | 270 | 23.5 | 10 | 2.2 |
Typical Application:
| 1 | Ceramic heater fan, hair dryer, hand dryer, clothes dryer, dish dryer |
| 2 | Coffee makers, steam irons, cooking devices, facial sauna, humidifier |
| 3 | Physical treatment, massage apparatus, biology heating |
| 4 | Mosquito repellent, liquid warmer, control devices |
