24V 200W 75x76x26mm ptc ceramic air fan heater heating elements for air conditioners, heaters, and hair dryers

MOQ:	500pcs
Price:	4-5usd/pcs
Standard Packaging:	cartons
Delivery Period:	7-15days
Payment Method:	T/T, Western Union
Supply Capacity:	10000pcs/day

Detail Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

HWALON

Certification

Model Number

24V 200W 75x76x26mm

Material:

Aluminum Case + Insulation Film+ceramic Chips

Voltage:

Power:

Dimension:

75x76x26mm

Usuage:

Air Conditioners, Heaters, And Hair Dryers

Place:

Guangdong, China

Highlight:

24V PTC ceramic heater element

200W air conditioner heater

PTC heater for hair dryers

Product Description

24V 200W 75x76x26mm ptc ceramic air fan heater heating elements for air conditioners, heaters, and hair dryers

Product description:

PTC Heater Heating Element

1. Rated Voltage: 24V

2. Rated Power: 200W (R=24℃,3.3m/s wind flow velocity)

3. Dimension: 75x76x26mm

4. Remarks:with 150 degrees normally closed thermostat protector

Product Name	PTC Air Heater(PTC Heater Heating Element)
Heat Material	PTC Thermistor
Heat Methods	Heat Radiation by Air Flow
Lead Wire	Silicone High Temperature Line
the Length of Lead Wires	200mm
the Length of Bare Wires	10mm
Surface Insulate	Yes
Application	Air Conditioning Units / Electric Heater /Car / Equipment/ General Electric Appliance/ Air Curtain Machine / Humidifier/PTC Heater Heating Element

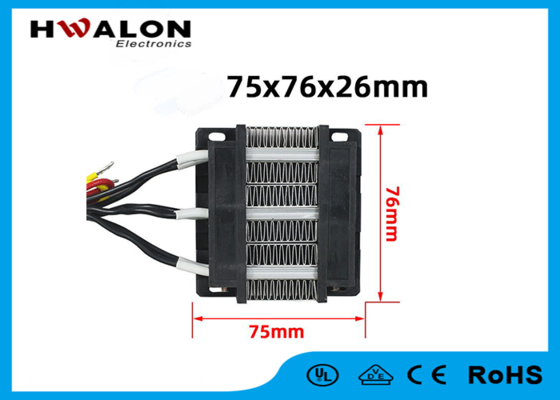

Product Dimension:

24V 200W 75x76x26mm ptc ceramic air fan heater heating elements for air conditioners, heaters, and hair dryers 0

Instruction manual:

1, The power line does not distinguish between positive and negative, you can freely link power 110V.

2, When the heater is dry, low thermal efficiency, it is recommended to use with the fan.

3, Can be placed under a wet environment, but can not be placed in water.

4, For the first time, will produce a small amount of smoke, is a normal phenomenon, it will disappear within a short time.

5, Built-in 230 degrees Celsius heater chip, when dry the surface temperature of about 200 degrees Celsius, the fan blowing, the surface temperature of about 120 degrees Celsius.

6, Both ends of the product wearing bracket (PA66 high temperature nylon)

7. Test: Ambient temperature 24 degrees Celsius, the wind speed: 3.3 m / s, distance from the outlet 10 cm. Hot air temperature of about 50-60 degrees Celsius.

8, Under normal circumstances, PTC heater in a very short time after the start, it will have an impact power, which is about 1.5 to 3 times the rated power, but will rapidly decline, which is normal. Please buyers understand!

9, Life: about: 3--5 years.

Packing&Delivery:
