Place of Origin: | China |
Brand Name: | Hwalon |
Certification: | RoHS, UL, CE, VDE |
Model Number: | PTC-PR4-MCH |
Minimum Order Quantity: | 1000pcs |
---|---|
Price: | Negotiation |
Packaging Details: | Packed in OPP Bag firstly,and then reinforced with Cartons for outer packing |
Delivery Time: | 15~20 working days after received your payment |
Payment Terms: | By negotiation |
Supply Ability: | 100,000pcs per month |
Operating Temp. Range: | -25~+125°C,0~+60°C | Max Operating Voltage: | 15V~270V Rms |
---|---|---|---|
Application: | Hair Dryer,hair Curler,hair Straightener, Hair Apparatus | Material: | Ceramic |
Surface Temp.: | 80-220 Degree | Relative Humidity: | ≤95% RH (±40°C) |
Size: | 70*10mm | Rated Voltage: | 3.6V~240V Rms |
High Light: | MCH Heating Element,MCH Heater |

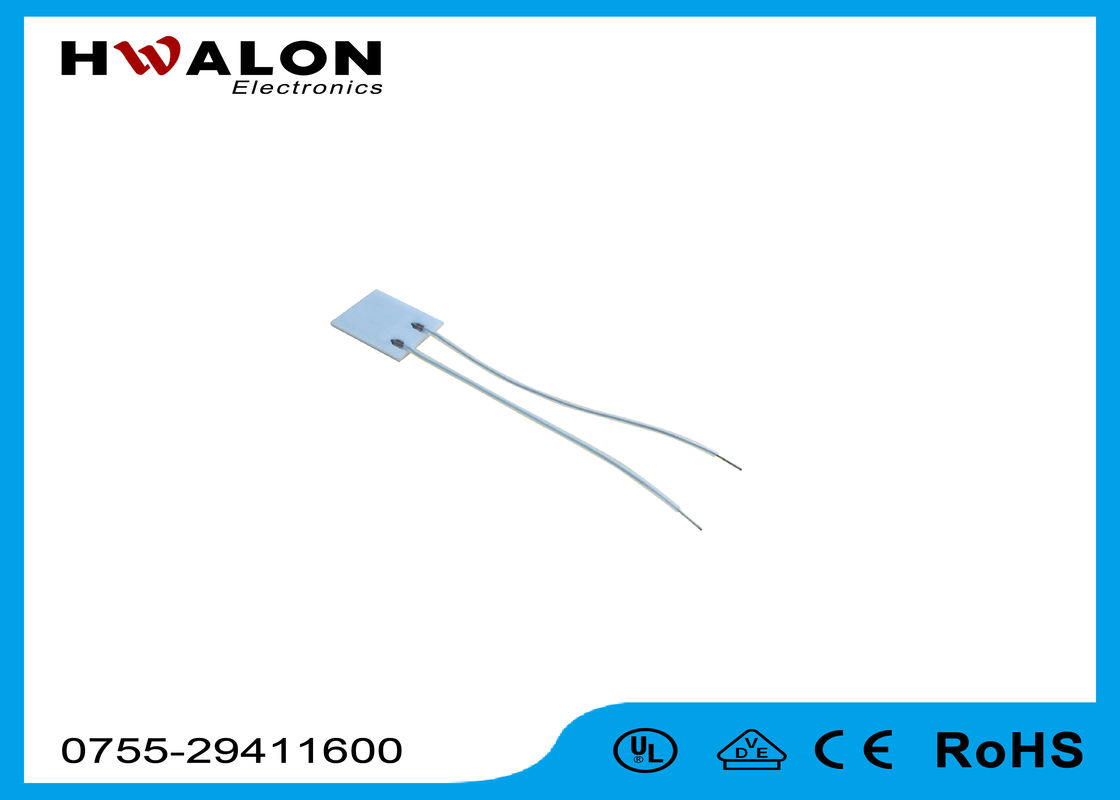

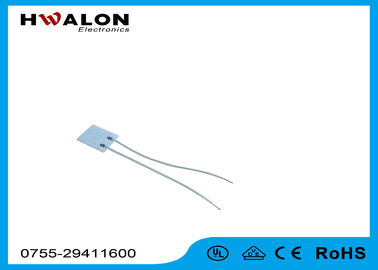

Stable MCH PTC Thermistor Heater 0.5MM Nickel Wire / Nickel Copper Wire Lead
Company Introduction:
Description:
1, Electrical performance
Insulation resistance:R≥5×108Ω(500VDC)
Withstand voltage strength:1500VAC 1min.;1800VAC 1min.;
3750VAC 1min.;4000VAC 0.1min.;
The highest voltage:230VAC/120VAC
2, physical performance
Volume density≥3.6g/cm3
Flexure strength≥270MPa
Compression strength≥2700MPa
Lead strain:Along the horizontal direction lead no less than
5kgf,lead and basal plate in 90℃ direction,no less than 3.5kgf
3, Temperature performance
Rating working temp.: 100℃~230℃
Max. Temp.: 500℃~700℃
Heating rate: reach to Rating working temp.in 30sec.,reach to max. Temp.In 90sec.
Applications:
PTC heater(MCH) | Hair dryer,hair curler,hair straightener, hair apparatus |
Specifications:
1, 10×10×1.3 mm
Specification |
Model NO. |
D |
E |
H |
L |
Φb |
|
10×10×1.3(2.0) |
24/12VAC |
9Ω |
10 |
10 |
1.3 |
75 |
0.5 |
10×10×1.3(2.0) |
24/12VAC |
13Ω |
10 |
10 |
1.3 |
75 |
0.5 |
2, 20×10×1.3 mm
Specification |
Model NO. |
D |
E |
H |
L |
Φb |
|
20×10×1.3(2.0) |
24/12VAC |
10Ω |
20 |
10 |
1.3 |
75 |
0.5 |
20×10×1.3(2.0) |
24/12VAC |
15Ω |
20 |
10 |
1.3 |
75 |
0.5 |
20×10×1.3(2.0) |
24/12VAC |
20Ω |
20 |
10 |
1.3 |
75 |
0.5 |
3, 30×25×1.3 mm
Specification |
Model NO. |
D |
E |
H |
L |
Φb |
|
30×25×1.3(2.0) |
24VAC |
20Ω |
30 |
25 |
1.3 |
75 |
0.5 |
30×25×1.3(2.0) |
24VAC |
25Ω |
30 |
25 |
1.3 |
75 |
0.5 |
30×25×1.3(2.0) |
24VAC |
30Ω |
30 |
25 |
1.3 |
75 |
0.5 |
30×25×1.3(2.0) |
24VAC |
35Ω |
30 |
25 |
1.3 |
75 |
0.5 |
4, 55×10×1.3 mm
Specification |
Model NO. |
D |
E |
H |
L |
Φb |
|
55×10×1.3(2.0) |
3.7VAC |
0.3Ω |
55 |
10 |
1.3 |
75 |
0.5 |
55×10×1.3(2.0) |
3.7VAC |
0.35Ω |
55 |
10 |
1.3 |
75 |
0.5 |
55×10×1.3(2.0) |
3.7VAC |
0.4Ω |
55 |
10 |
1.3 |
75 |
0.5 |
55×10×1.3(2.0) |
3.7VAC |
0.5Ω |
55 |
10 |
1.3 |
75 |
0.5 |
5, 70×7×1.3 mm
Specification |
Model NO. |
D |
E |
H |
L |
Φb |
|
70×7×1.3(2.0) |
220VAC |
180Ω |
70 |
7 |
1.3 |
75 |
0.5 |
70×7×1.3(2.0) |
220VAC |
150Ω |
70 |
7 |
1.3 |
75 |
0.5 |
70×7×1.3(2.0) |
220VAC |
140Ω |
70 |
7 |
1.3 |
75 |
0.5 |
70×7×1.3(2.0) |
220VAC |
120Ω |
70 |
7 |
1.3 |
75 |
0.5 |
70×7×1.3(2.0) |
220VAC |
110Ω |
70 |
7 |
1.3 |
75 |
0.5 |
70×7×1.3(2.0) |
110VAC |
80Ω |
70 |
7 |
1.3 |
75 |
0.5 |
70×7×1.3(2.0) |
110VAC |
60Ω |
70 |
7 |
1.3 |
75 |
0.5 |
70×7×1.3(2.0) |
110VAC |
40Ω |
70 |
7 |
1.3 |
75 |
0.5 |
6, 70×10×1.3 mm
Specification |
Model NO. |
D |
E |
H |
L |
Φb |
|
70×10×1.3(2.0) |
220VAC |
180Ω |
70 |
10 |
1.3 |
75 |
0.5 |
70×10×1.3(2.0) |
220VAC |
150Ω |
70 |
10 |
1.3 |
75 |
0.5 |
70×10×1.3(2.0) |
220VAC |
140Ω |
70 |
10 |
1.3 |
75 |
0.5 |
70×10×1.3(2.0) |
220VAC |
120Ω |
70 |
10 |
1.3 |
75 |
0.5 |
70×10×1.3(2.0) |
220VAC |
110Ω |
70 |
10 |
1.3 |
75 |
0.5 |
70×10×1.3(2.0) |
110VAC |
80Ω |
70 |
10 |
1.3 |
75 |
0.5 |
70×10×1.3(2.0) |
110VAC |
60Ω |
70 |
10 |
1.3 |
75 |
0.5 |
70×10×1.3(2.0) |
110VAC |
40Ω |
70 |
10 |
1.3 |
75 |
0.5 |
70×10×1.3(2.0) |
3VAC |
2Ω |
70 |
10 |
1.3 |
75 |
0.5 |
70×10×1.3(2.0) |
12VAC |
6Ω |
70 |
10 |
1.3 |
75 |
0.5 |
70×10×1.3(2.0) |
12VAC |
10Ω |
70 |
10 |
1.3 |
75 |
0.5 |
7, 70×15×1.3 mm
Specification |
Model NO. |
D |
E |
H |
L |
Φb |
|
70×15×1.3(2.0) |
220VAC |
180Ω |
70 |
15 |
1.3 |
75 |
0.5 |
70×15×1.3(2.0) |
220VAC |
150Ω |
70 |
15 |
1.3 |
75 |
0.5 |
70×15×1.3(2.0) |
220VAC |
140Ω |
70 |
15 |
1.3 |
75 |
0.5 |
70×15×1.3(2.0) |
220VAC |
120Ω |
70 |
15 |
1.3 |
75 |
0.5 |
70×15×1.3(2.0) |
220VAC |
110Ω |
70 |
15 |
1.3 |
75 |
0.5 |
70×15×1.3(2.0) |
110VAC |
80Ω |
70 |
15 |
1.3 |
75 |
0.5 |
70×15×1.3(2.0) |
110VAC |
60Ω |
70 |
15 |
1.3 |
75 |
0.5 |
70×15×1.3(2.0) |
12VAC |
3Ω |
70 |
15 |
1.3 |
75 |
0.5 |
8, 70×20×1.3 mm
Specification |
Model NO. |
D |
E |
H |
L |
Φb |
|
70×20×1.3 |
220VAC |
180Ω |
70 |
20 |
1.3 |
75 |
0.5 |
70×20×1.3 |
220VAC |
150Ω |
70 |
20 |
1.3 |
75 |
0.5 |
70×20×1.3 |
110VAC |
60Ω |
70 |
20 |
1.3 |
75 |
0.5 |
70×20×1.3 |
110VAC |
40Ω |
70 |
20 |
1.3 |
75 |
0.5 |
9, PTC Heater in Circle Shape
Specification |
Model NO. |
Φb |
|
Ø25×1.3 |
12/24VAC |
13Ω |
0.5 |
Ø25×1.3 |
12/24VAC |
15Ω |
0.5 |
Ø25×1.3 |
12/24VAC |
19Ω |
0.5 |
10, PTC Heater in Ring Shape
Internal Dia. |
External Dia. |
Thickness |
Max. Voltage |
6.8mm |
14.25mm |
1.3mm |
7V |
11, PTC Heater in Round Shape
Specification |
Model NO. |
Φb |
|
Ø24×1.3 |
12VAC |
4-7Ω |
0.5 |
Ø24×1.3 |
24VAC |
9-12Ω |
0.5 |
Competitive Advantage:
1. RoHS compliant
2. High heat efficiency
3. Good electric performance
4. Secure invalidation mode
5. Simple construction
6. Quick in temperature rise,reach to Rating 100℃~230℃ in 10sec.,reach to 500℃~700℃ in 30sec.
7. High thermal efficiency,energy conservation,non-pollution,ROHS compliance
8. Even heating,No open flame,Safety in use
9. Heating element in the local vacuum state,Heater, acid and alkali resistant and harmful gas
10. Long service life,The power attenuation is small
High Quality MCH Ceramic Heater PTC Thermistor Heater for Hair Dryer
We are looking forward to establishing long-term friendly business relationship with you.
Contact Person: Mr. Skyfu
Tel: 86-13713710768
