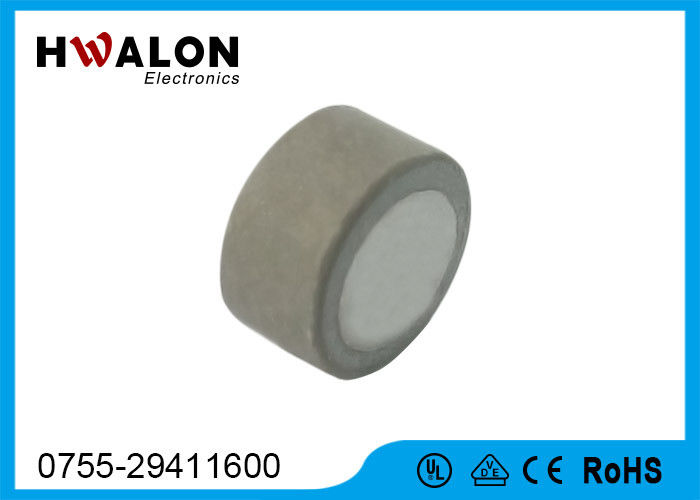

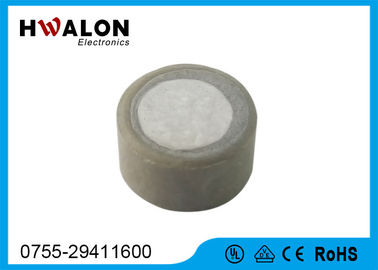

Facial Sauna Small Ceramic Heating Element Pill 3.6V - 240V Rms Rated Voltage

MOQ:	5Kpcs
Price:	negotiation
Standard Packaging:	Packed in OPP Bag firstly,and then reinforced with Cartons for outer packing
Delivery Period:	15~20 working days after received your payment
Payment Method:	T/T, Western Union
Supply Capacity:	100,000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Hwalon

Model Number

PTC-PR4

Brand:

Hwalon

ODM/OEM:

Available

Rated Voltage:

3.6V~240V Rms

Max Operating Voltage:

15V~270V Rms

Temperature:

-40℃ ~ +85℃

Operating Temp. Range:

-25~+125°C,0~+60°C

Surge Voltage Withstanding:

400V~900V Rms

Tolerance Of Surface Temp.:

±3℃ ~ ±10℃

Highlight:

ptc heater element

ceramic heater element

Product Description

Facial Sauna Small Ceramic Heating Element Pill 3.6V - 240V Rms Rated Voltage

Features:

RoHS & Halogen Free (HF) compliant
Constant temperature,temperature-controlling system is not needed
When heating the cold wind, it will not be destroyed when wind is stopped
When heating the liquid, it will not be destroyed when wind is burnt to be dry
Not sensitive to voltage fluctuating, and wide range of operating voltage
Restore automatically after being invalided

Description:

PTC heater pills are made of high-quality Ceramic material,which is widely used in electronic items,like coffee maker,steam irons,facial sauna,humidifier,etc.It also can be used in wide range of operating voltage. The strong points is that it can be restored automatically after being invalided.

Competitive Advantage:

Simple construction
High-quality ceramic material
Different shape is available: square,rectangle,round,ring
Customized design and size is available
Perfect surface polish
Stable heating performance
Considerate service & reasonable price

Specifications:

no.	part No.	resistance	surf. temp.	max voltage	length	width	thickness
1	H4PR3RA20K180	1-5	180	80	/	/	1.4
2	H4PR7R5A08K145	5-10	145	20	/	/	2.8
3	H4PR14RA13K075	8-20	75	80	/	/	2.5
4	H4PR14RA17K160	8-20	160	80	/	/	1.4
5	H4PR18RA10K110	10-25	110	80	/	/	2.5
6	H4PR35RA13K150	20-50	150	30	/	/	1.3
7	H4PR70RA13K155	50-90	155	80	/	/	1.3
8	H4PR321RA13K175	150-500	175	140	/	/	2.2
9	H4PR501RA10K150	200-800	150	140	/	/	2.2
10	H4PR501RA10K050	200-800	185	270	/	/	2.2
11	H4PR102RA08K050	500-1500	50	270	/	/	3
12	H4PR102RA13K075	500-1500	75	270	/	/	2.2
13	H4PR102RA08K130	500-1500	130	270	/	/	2.2
14	H4PR102RA20K130	500-1500	130	270	/	/	2.2
15	H4PR102RA10K155	500-1500	155	270	/	/	2.2
16	H4PR102RA20K160	500-1500	160	270	/	/	2.2
17	H4PR102RA10K180	500-1500	180	270	/	/	2.2
18	H4PR142RA13K230	800-2000	230	270	/	/	2.5
19	H4PR142RA13K250	800-2000	250	270	/	/	2.5
20	H4PR352RA20K250	2000-5000	250	270	/	/	2.5
21	H4PR200RA16K055	12-32	55	20	/	/	1.5
22	H4PR140RA16K100	7-20	100	20	16	11	2
23	H4PR102RA19K100	600-1500	100	270	16	11	2.5
24	H4PR142RA19K230	800-2000	230	270	19	12	2.2
25	H4PR102RA20K110	500-1500	110	270	23.5	10	2.2
26	H4PR271RA16K090	150-400	90	140	16	11	2.5
27	H4PR551KRA16K085	300-800	85	140	16	11	2.5
28	H4PR651RA23K250	300-1000	250	140	23.5	10	2.2
29	H4PR142RA24K255	800-2000	255	270	23.5	10	2.2
30	H4PR202RA24K255	500-3000	255	270	36	6	2.3
31	H4PR140RA24K280	8-20	280	50	24	15	1.4
32	H4PR551RA24K280	300-800	280	140	24	15	2.5
33	H4PR202RA24K280	800-3500	280	270	24	15	2.5
34	H4PR202RA24K290	500-3000	290	270	36	6	2.5

Applications:

PTC Heater Pills

Coffee maker,steam irons,cooking devices,

facial sauna,humidifier
