| Area 3, block B, huafeng huayuan science&technology innovation park, bao'an district, shenzhen, guangdong, china | market@hwalon.com |
 |
| Place of Origin: | China |
| Brand Name: | Hwalon |
| Model Number: | PPTC |
| Minimum Order Quantity: | 10Kpcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in OPP Bag firstly,and then reinforced with Cartons for outer packing |
| Delivery Time: | 15~20 working days after received your payment |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100,000pcs per month |
| Certification: | RoHS Approved,SGS | Coating Type: | Epoxy Type |
|---|---|---|---|
| Material: | Polymeric PTC Material | Function: | Short-Circuit Protection |
| Package: | Plastic Bags + Cartons | Lead Time (Delivery Time): | Depend On Quantity |
| Color: | Yellow | Parameters: | Size, Voltage |
| Highlight: | pptc resettable fuse,polyswitch resettable fuse |
||

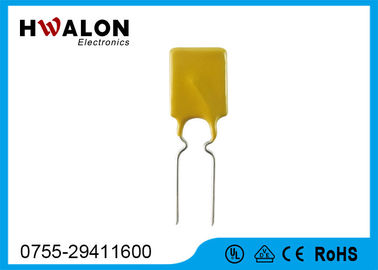

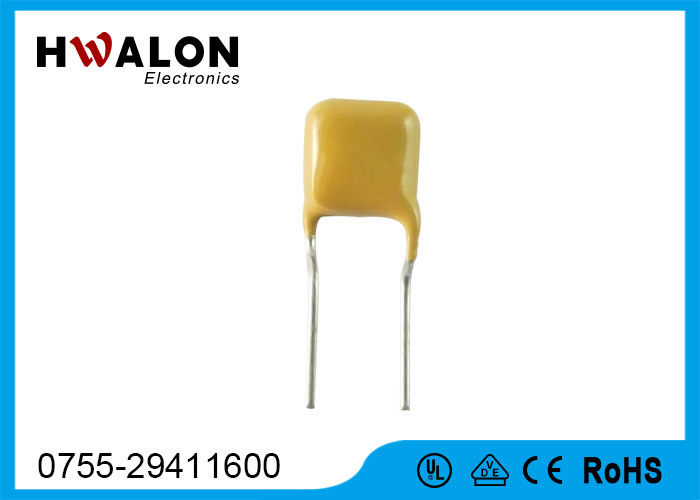

Epoxy Coating PPTC Thermistor Resistor With Resettable Circuit Protection
Specifications:
| Voltage | Model NO. | ||||||||
| 16V | 16V-075 | 16V-090 | 16V-110 | 16V-120 | 16V-135 | 16V-160 | 16V-185 | 16V-250 | 16V-300 |
| 16V-400 | 16V-500 | 16V-600 | 16V-700 | 16V-800 | 16V-900 | 16V-1000 | 16V-1100 | 16V-1200 | |
| 30V | 30V-050 | 30V-075 | 30V-090 | 30V-110 | 30V-135 | 30V-160 | 30V-185 | 30V-200 | 30V-250 |
| 30V-300 | 30V-400 | 30V-500 | 30V-600 | 30V-700 | 30V-800 | 30V-900 | / | / | |
| 42V | 42V-050 | 42V-075 | 42V-090 | 42V-110 | 42V-135 | 42V-160 | 42V-185 | 42V-250 | 42V-300 |
| 42V-375 | 42V-500 | 42V-600 | 42V-700 | 42V-800 | 42V-900 | / | / | / | |
| 60V | 60V-005 | 60V-010 | 60V-017 | 60V-020 | 60V-025 | 60V-030 | 60V-040 | 60V-050 | 60V-065 |
| 60V-075 | 60V-090 | 60V-110 | 60V-135 | 60V-160 | 60V-185 | 60V-250 | 60V-300 | 60V-375 | |
| 72V | 72V-005 | 72V-010 | 72V-017 | 72V-020 | 72V-025 | 72V-030 | 72V-040 | 72V-050 | 72V-065 |
| 72V-075 | 72V-090 | 72V-110 | 72V-135 | 72V-160 | 72V-185 | 72V-250 | 72V-300 | 72V-375 | |
Description:
PPTC resettable fuse are made of polymeric PTC materials which is a matrix of polymer containing dispersed conductive particles. Generally,the device has a very low resistance. If an over-current happened, as a response to the damage current,the resistance will immediately increase to very high,reducing the current of the circuit to a safe value that the loading can carry. Once fault to the circuit is weed out and power is recuperated, the polymer will deflate itself,the device will reset and is ready for normal operation.
Applications:
| PPTC resettable fuse | DVD,Motor,Electronic toy,Loudspeaker |
Competitive Advantage:
1. Smaller size saves board space and cost
2. Resettable circuit protection
3. Fast time-to-trip
4. Low resistance
5. Lead-free and compliant with the European Union RoHS Directive 2002/95/EC
6. A matrix of polymer containing dispersed conductive particles
7. Response quickly when facing damage current
8. Considerate service & reasonable price
RoHS Approved PPTC Thermistor PPTC Polymer Resettable Fuse for DVD Items
If any questions or ideas,just please feel free to contact us, since we hold the opinion that any questions or trouble can be absolutely settled.
It is our hope, by joint effort, to promote both business and friendship to our mutual advantage.
