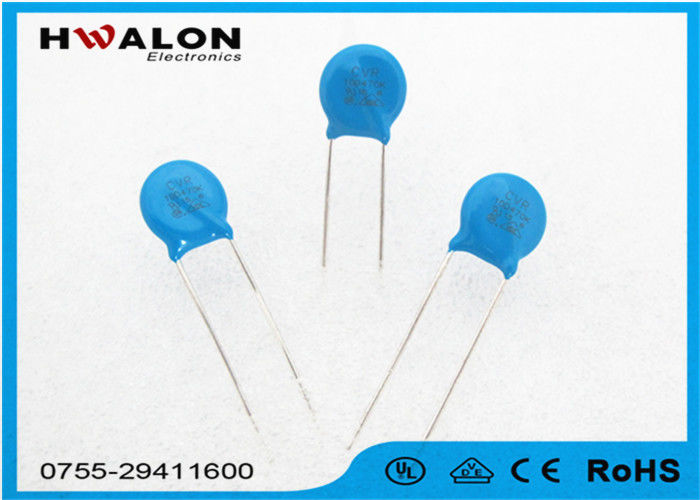

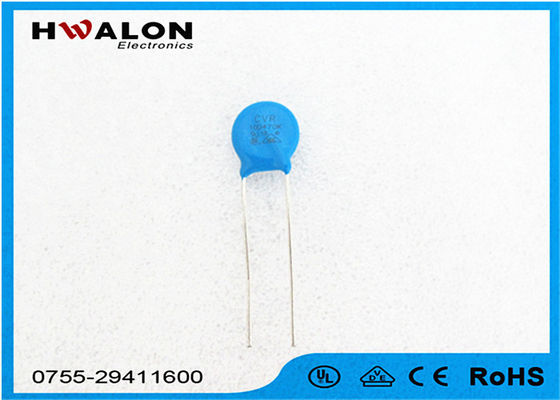

10D471K Blue MOV Metal Oxide Varistor , Zinc Oxide Varistor For Surge Protection
  • name
  • name

10D471K Blue MOV Metal Oxide Varistor , Zinc Oxide Varistor For Surge Protection

MOQ: 10000pcs
Standard Packaging: 250pcs/bag
Supply Capacity: 100,000,000pcs/month
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
MOV
Certification
UL,VDE,CSA
Model Number
10D471K
Color:
Blue Or Green
Certification:
UL,VDE,CSA
Size:
7mm, 10mm, 14mm,20mm,25mm
Brand:
MOV Or ZOV
Lead:
2 Or 3 Leads
Operating Temp.:
-40~85 Degree
Highlight:

MOV electronic component

,

MOV electronic device

Product Description

10D471K Blue MOV Metal Oxide Varistor , Zinc Oxide Varistor For Surge Protection​


Specification of Metal Oxide Varistor MOV 10D471K:



P/N10D471K
Size10mm
AC voltage300V
DC Voltage385V
Varistor Voltage470V(423-517)
Max Clamping Voltage/Current775V/25A
Max Peak Current(1 time)2500A
Max Peak Current(2 times)1250A
Capacitance150pf


Description of Metal Oxide Varistor 10mm series:


P/NAC VoltageDC VoltageVaristor VoltageUL
10D180L111418(15-21)√
10D220K141822(20-24)√
10D270K172227(24-30)√
10D330K202633(30-36)√
10D390K253139(35-43)√
10D470K303847(42-52)√
10D560K354556(50-62)√
10D680K405668(61-75)√
10D820K506282(74-90)√
10D101K6085100(90-110)√
10D121K75100120(108-132)√
10D151K95125150(135-165)√
10D181K115150180(162-198)√
10D201K130170200(185-225)√
10D221K140180220(198-242)√
10D241K150200240(216-264)√
10D271K175225270(243-297)√
10D301K190250300(270-330)√
10D331K210275330(297-363)√
10D361K230300360(324-396)√
10D391K250320390(351-429)√
10D431K275350430(387-473)√
10D471K300385470(423-517)√
10D511K320415510(459-561)√
10D561K350460560(504-616)√
10D621K385505620(558-682)√
10D681K420560680(612-748)√
10D751K460615750(675-825)√
10D781K485640780(702-858)√
10D821K510670820(738-902)√
10D911K550745910(819-1001)√
10D102K6258251000(900-1100)√
10D112K6808951100(990-1210)√


Competitive Advantage of Hwalon Metal Oxide Varistor :

1. Radial leaded type
2. Many size choose 7mm, 10mm, 14mm, 20mm and 32mm
3. VM(AC)RMS voltage range from 130V to 1000V
4. Energy absorption capability up to 360J
5. UL Certification

Application of Metal Oxide Varistor:

Surge Protector Device,Motor Protector,Over-voltage Protector Device and Lightning Arrester ,etc


RFQ:


 QuestionAnswers
1What is the MOQ?5000pcs.
2What is the payment terms?Negotiation.
3Can you accept special requirement?Yes,we can.We can design for your special requirement.
4Can you make the printing artworks(such as user manual/packing/rating label) in our languageYes,we can.We do OEM for a long time
5Can we order samples:Yes ,you can . Free samples are available
