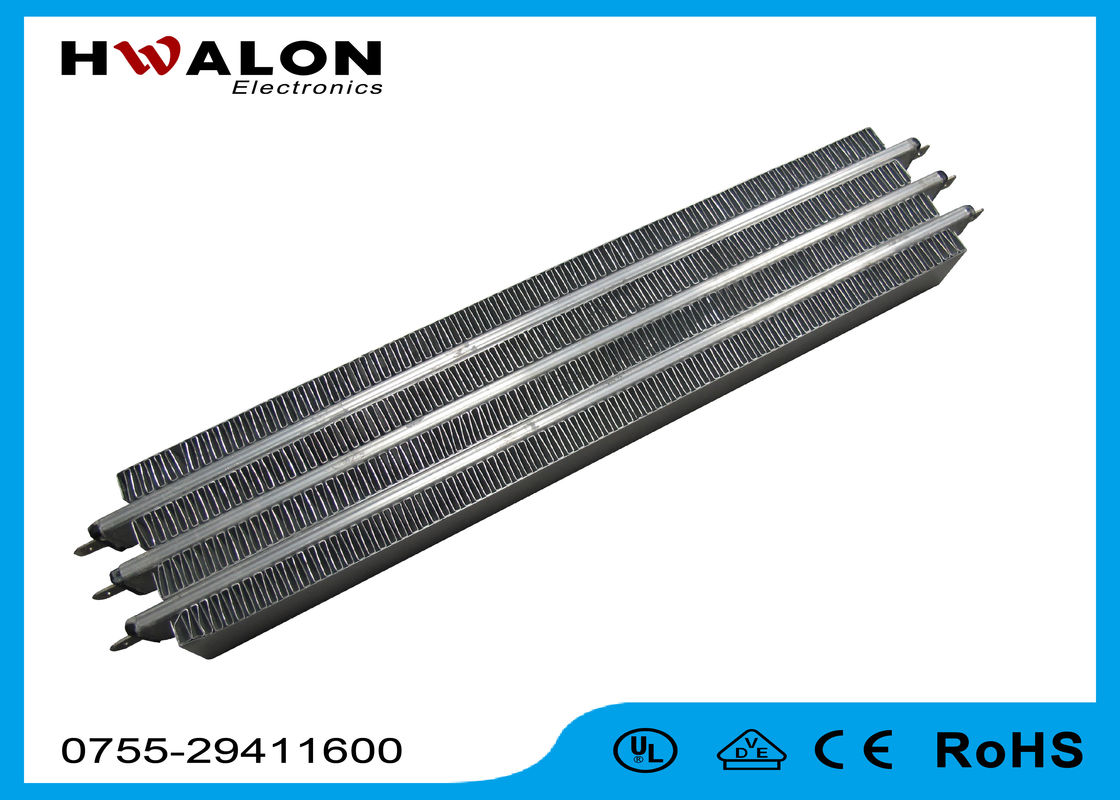

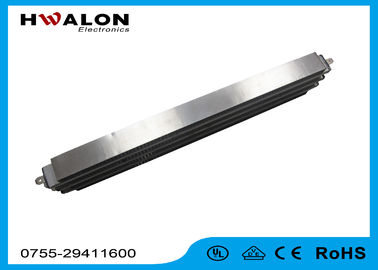

PR4 Electric Ceramic PTC Air Heater Waterproof 50℃ - 280℃ Curie Temperature

PR4 Electric Ceramic PTC Air Heater Waterproof 50℃ - 280℃ Curie Temperature

Specifications:

Models	Dimension(mm)	Aluminum tubes	Fin width(mm)	Fin pitch(mm)	Photo
SH	26*65*L L:70, 93, 106, 128, 150, 185,	2	65	1.68(M)
MH	20226*90*L L:70, 93, 106, 128, 150, 185, 202	3	90	1.2(S), 2.6(B), 2.0(N)
OH	26*30*L L:30. 40, 70, 93, 106, 128, 150, 185, 202	1	30	1.68(M)
TH	26*45*L L:70, 93, 106, 128, 150, 185, 202	2	45	2.0(N)
SS	148*44.5*15/ 148*22.5*15/ 120*107*15/ 96*88.5*15/ 96*22.5*15/ 25*22.5*15/ 45*44.5*15	N/A	N/A	N/A

Applications:

Description:


1. The higher the temperature, the more power efficient;

2. Can be water-proof, no electricity leakage or cause short circuit;
3. Internal safety-fuse protection.

4. Heating power and self-regulating function is in correlation to the heat dissipation rate.
5. Current will automatically cut-off to prevent abnormal large current or other external factors causing safety concerns;

6. Does not cause oxygen shortage when used for a long time;

7. Does not crack, burst or burn when heated under no airflow.



Competitive Advantage:

1. No moving parts to wear;
2. Very long working life;
3. Fast thermal heating rate, low inrush current;
4. Pretty low air resistance, high efficiency;

5. Self regulating heating control;

6. High reliability, impossible to overheat.
7. No smell, no radiation, does not oxidize;
8. PPS frames and other accessories available.


RoHS 1000W 220V energy-efficient electric ceramic PTC Air Heater in air-conditioning
