Place of Origin: | CHINA |
Brand Name: | MOV |
Certification: | UL,VDE,CSA |
Model Number: | 10D511K |
Minimum Order Quantity: | 10000pcs |
---|---|
Packaging Details: | 250pcs/bag |
Supply Ability: | 100,000,000pcs/month |
Material: | Zinic Oxide | Certification: | UL,VDE,CSA |
---|---|---|---|
Response Time: | Less 50ns | Pin Type: | Radial |
Size: | 5mm,7mm,10mm,14mm,20mm,25mm,32mm | Leads: | 2 Or 3 Leads |
Highlight: | MOV electronic component,MOV electronic device |

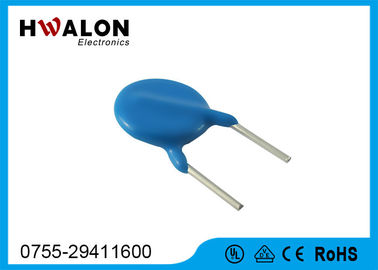

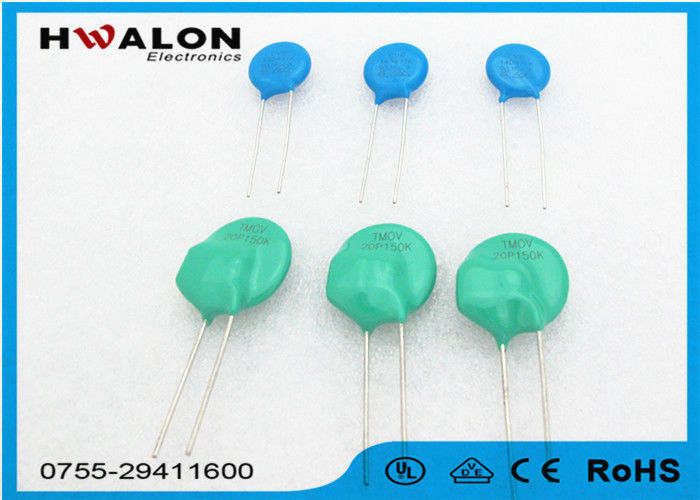

Blue Green 10mm 510v MOV Electronic Component Varistor Thermistor UL certification
Features of Metal Oxide Varistor:
1. Radial leaded type
2. Many size choose 7mm, 10mm, 14mm, 20mm , 25mm and 32mm
3. VM(AC)RMS voltage range from 130V to 1000V
4. Energy absorption capability up to 360J
5. UL ,VDE ,CSA Certification
Parameters of Metal Oxide Varistor :
5D:
P/N | AC Voltage | DC Voltage | Varistor Voltage | UL |
5D180L | 11 | 14 | 18(15-21) | √ |
5D220K | 14 | 18 | 22(20-24) | √ |
5D270K | 17 | 22 | 27(24-30) | √ |
5D330K | 20 | 26 | 33(30-36) | √ |
5D390K | 25 | 31 | 39(35-43) | √ |
5D470K | 30 | 38 | 47(42-52) | √ |
5D560K | 35 | 45 | 56(50-62) | √ |
5D680K | 40 | 56 | 68(61-75) | √ |
5D820K | 50 | 65 | 82(74-90) | √ |
5D101K | 60 | 85 | 100(90-110) | √ |
5D121K | 75 | 100 | 120(108-132) | √ |
5D151K | 95 | 125 | 150(135-165) | √ |
5D181K | 115 | 150 | 180(162-198) | √ |
5D201K | 130 | 170 | 200(185-225) | √ |
5D221K | 140 | 180 | 220(198-242) | √ |
5D241K | 150 | 200 | 240(216-264) | √ |
5D271K | 175 | 225 | 270(243-297) | √ |
5D301K | 190 | 250 | 300(270-330) | √ |
5D331K | 210 | 275 | 330(297-363) | √ |
5D361K | 230 | 300 | 360(324-396) | √ |
5D391K | 250 | 320 | 390(351-429) | √ |
5D431K | 275 | 350 | 430(387-473) | √ |
5D471K | 300 | 385 | 470(423-517) | √ |
5D511K | 320 | 415 | 510(459-561) | √ |
5D561K | 350 | 460 | 560(504-616) | √ |
5D621K | 385 | 505 | 620(558-682) | √ |
5D681K | 420 | 560 | 680(612-748) |
√ |
7D:
P/N | AC Voltage | DC Voltage | Varistor Voltage | UL |
7D180L | 11 | 14 | 18(15-21) | √ |
7D220K | 14 | 18 | 22(20-24) | √ |
7D270K | 17 | 22 | 27(24-30) | √ |
7D330K | 20 | 26 | 33(30-36) | √ |
7D390K | 25 | 31 | 39(35-43) | √ |
7D470K | 30 | 38 | 47(42-52) | √ |
7D560K | 35 | 45 | 76(70-62) | √ |
7D680K | 40 | 56 | 68(61-77) | √ |
7D820K | 50 | 65 | 82(74-90) | √ |
7D101K | 60 | 85 | 100(90-110) | √ |
7D121K | 75 | 100 | 120(108-132) | √ |
7D151K | 95 | 125 | 150(135-165) | √ |
7D181K | 115 | 150 | 180(162-198) | √ |
7D201K | 130 | 170 | 200(185-225) | √ |
7D221K | 140 | 180 | 220(198-242) | √ |
7D241K | 150 | 200 | 240(216-264) | √ |
7D271K | 175 | 225 | 270(243-297) | √ |
7D301K | 190 | 250 | 300(270-330) | √ |
7D331K | 210 | 275 | 330(297-363) | √ |
7D361K | 230 | 300 | 360(324-396) | √ |
7D391K | 250 | 320 | 390(351-429) | √ |
7D431K | 275 | 350 | 430(387-473) | √ |
7D471K | 300 | 385 | 470(423-517) | √ |
7D511K | 320 | 415 | 510(459-561) | √ |
7D561K | 350 | 460 | 560(504-616) | √ |
7D621K | 385 | 505 | 620(558-682) | √ |
7D681K | 420 | 560 | 680(612-748) | √ |
10D:
P/N | AC Voltage | DC Voltage | Varistor Voltage | UL |
10D180L | 11 | 14 | 18(15-21) | √ |
10D220K | 14 | 18 | 22(20-24) | √ |
10D270K | 17 | 22 | 27(24-30) | √ |
10D330K | 20 | 26 | 33(30-36) | √ |
10D390K | 25 | 31 | 39(35-43) | √ |
10D470K | 30 | 38 | 47(42-52) | √ |
10D560K | 35 | 45 | 56(50-62) | √ |
10D680K | 40 | 56 | 68(61-75) | √ |
10D820K | 50 | 62 | 82(74-90) | √ |
10D101K | 60 | 85 | 100(90-110) | √ |
10D121K | 75 | 100 | 120(108-132) | √ |
10D151K | 95 | 125 | 150(135-165) | √ |
10D181K | 115 | 150 | 180(162-198) | √ |
10D201K | 130 | 170 | 200(185-225) | √ |
10D221K | 140 | 180 | 220(198-242) | √ |
10D241K | 150 | 200 | 240(216-264) | √ |
10D271K | 175 | 225 | 270(243-297) | √ |
10D301K | 190 | 250 | 300(270-330) | √ |
10D331K | 210 | 275 | 330(297-363) | √ |
10D361K | 230 | 300 | 360(324-396) | √ |
10D391K | 250 | 320 | 390(351-429) | √ |
10D431K | 275 | 350 | 430(387-473) | √ |
10D471K | 300 | 385 | 470(423-517) | √ |
10D511K | 320 | 415 | 510(459-561) | √ |
10D561K | 350 | 460 | 560(504-616) | √ |
10D621K | 385 | 505 | 620(558-682) | √ |
10D681K | 420 | 560 | 680(612-748) | √ |
10D751K | 460 | 615 | 750(675-825) | √ |
10D781K | 485 | 640 | 780(702-858) | √ |
10D821K | 510 | 670 | 820(738-902) | √ |
10D911K | 550 | 745 | 910(819-1001) | √ |
10D102K | 625 | 825 | 1000(900-1100) | √ |
10D112K | 680 | 895 | 1100(990-1210) |
√ |
14D:
P/N | AC Voltage | DC Voltage | Varistor Voltage | UL |
14D180L | 11 | 14 | 18(15-21) | √ |
14D220K | 14 | 18 | 22(20-24) | √ |
14D270K | 17 | 22 | 27(24-30) | √ |
14D330K | 20 | 26 | 33(30-36) | √ |
14D390K | 25 | 31 | 39(35-43) | √ |
14D470K | 30 | 38 | 47(42-52) | √ |
14D560K | 35 | 45 | 56(50-62) | √ |
14D680K | 40 | 56 | 68(61-75) | √ |
14D820K | 50 | 65 | 82(74-90) | √ |
14D141K | 60 | 85 | 100(90-110) | √ |
14D121K | 75 | 100 | 120(108-132) | √ |
14D151K | 95 | 125 | 150(135-165) | √ |
14D181K | 115 | 150 | 180(162-198) | √ |
14D201K | 130 | 170 | 200(185-225) | √ |
14D121K | 140 | 180 | 220(198-242) | √ |
14D241K | 150 | 200 | 240(216-264) | √ |
14D271K | 175 | 225 | 270(243-297) | √ |
14D301K | 190 | 250 | 300(270-330) | √ |
14D331K | 210 | 275 | 330(297-363) | √ |
14D361K | 230 | 300 | 360(324-396) | √ |
14D391K | 250 | 320 | 390(351-429) | √ |
14D431K | 275 | 350 | 430(387-473) | √ |
14D471K | 300 | 385 | 470(423-517) | √ |
14D511K | 320 | 415 | 510(459-561) | √ |
14D561K | 350 | 460 | 560(504-616) | √ |
14D621K | 385 | 505 | 620(558-682) | √ |
14D681K | 420 | 560 | 680(612-748) | √ |
14D751K | 460 | 615 | 750(675-825) | √ |
14D781K | 485 | 640 | 780(702-858) | √ |
14D821K | 510 | 670 | 820(738-902) | √ |
14D911K | 550 | 745 | 910(819-1001) | √ |
14D102K | 625 | 825 | 1000(900-1100) | √ |
14D112K | 680 | 895 | 1100(990-1210) | √ |
14D122K | 740 | 975 | 1200(1080-1320) | √ |
14D182K | 1000 | 1465 | 1800(1620-1980) | √ |
20D:
P/N | AC Voltage | DC Voltage | Varistor Voltage | UL |
20D180L | 11 | 14 | 18(15-21) | √ |
20D220K | 14 | 18 | 22(20-24) | √ |
20D270K | 17 | 22 | 27(24-30) | √ |
20D330K | 20 | 26 | 33(30-36) | √ |
20D390K | 25 | 31 | 39(35-43) | √ |
20D470K | 30 | 38 | 47(42-52) | √ |
20D560K | 35 | 45 | 56(50-62) | √ |
20D680K | 40 | 56 | 68(61-75) | √ |
20D820K | 50 | 65 | 82(74-90) | √ |
20D101K | 60 | 85 | 100(90-110) | √ |
20D121K | 75 | 100 | 120(108-132) | √ |
20D151K | 95 | 125 | 150(135-165) | √ |
20D181K | 115 | 150 | 180(162-198) | √ |
20D201K | 130 | 170 | 200(185-225) | √ |
20D221K | 140 | 180 | 220(198-242) | √ |
20D241K | 150 | 200 | 240(216-264) | √ |
20D271K | 175 | 225 | 270(243-297) | √ |
20D301K | 190 | 250 | 300(270-330) | √ |
20D331K | 210 | 275 | 330(297-363) | √ |
20D361K | 230 | 300 | 360(324-396) | √ |
20D391K | 250 | 320 | 390(351-429) | √ |
20D431K | 275 | 350 | 430(387-473) | √ |
20D471K | 300 | 385 | 470(423-517) | √ |
20D511K | 320 | 415 | 510(459-561) | √ |
20D561K | 350 | 460 | 560(504-616) | √ |
20D621K | 385 | 505 | 620(558-682) | √ |
20D681K | 420 | 560 | 680(612-748) | √ |
20D751K | 460 | 615 | 750(675-825) | √ |
20D781K | 485 | 640 | 780(702-858) | √ |
20D821K | 510 | 670 | 820(738-902) | √ |
20D911K | 550 | 745 | 910(819-1001) | √ |
20D102K | 625 | 825 | 1000(900-1100) | √ |
20D112K | 680 | 895 | 1100(990-1210) | √ |
20D122K | 750 | 990 | 1200(1080-1320) | √ |
20D182K | 1000 | 1465 | 1800(1620-1980) | √ |
25D:
P/N | AC Voltage | DC Voltage | Varistor Voltage | UL |
25D180L | 11 | 14 | 18(15-21) | √ |
25D220K | 14 | 18 | 22(20-24) | √ |
25D270K | 17 | 22 | 27(24-30) | √ |
25D330K | 20 | 26 | 33(30-36) | √ |
25D390K | 25 | 31 | 39(35-43) | √ |
25D470K | 30 | 38 | 47(42-52) | √ |
25D560K | 35 | 45 | 56(50-62) | √ |
25D680K | 40 | 56 | 68(61-75) | √ |
25D820K | 50 | 65 | 82(61-75) | √ |
25D101K | 60 | 85 | 100(90-100) | √ |
25D121K | 75 | 100 | 120(105-132) | √ |
25D151K | 95 | 125 | 150(135-165) | √ |
25D181K | 115 | 150 | 180(162-198) | √ |
25D201K | 130 | 170 | 200(185-225) | √ |
25D221K | 140 | 180 | 220(198-242) | √ |
25D241K | 150 | 200 | 240(216-264) | √ |
25D271K | 175 | 225 | 270(243-297) | √ |
25D301K | 190 | 250 | 300(270-330) | √ |
25D331K | 210 | 275 | 330(297-363) | √ |
25D361K | 230 | 300 | 360(324-396) | √ |
25D391K | 250 | 320 | 390(351-429) | √ |
25D431K | 275 | 350 | 430(387-473) | √ |
25D471K | 300 | 385 | 470(423-517) | √ |
25D511K | 320 | 415 | 510(459-561) | √ |
25D561K | 350 | 460 | 560(504-616) | √ |
25D621K | 385 | 505 | 620(558-682) | √ |
25D681K | 420 | 560 | 680(612-748) | √ |
25D751K | 460 | 615 | 750(675-825) | √ |
25D781K | 485 | 640 | 780(702-858) | √ |
25D821K | 510 | 670 | 820(738-902) | √ |
25D911K | 550 | 745 | 910(819-1001) | √ |
25D102K | 625 | 825 | 1000(900-1100) | √ |
25D112K | 680 | 895 | 1100(990-1210) | √ |
25D122K | 750 | 990 | 1200(1080-1320) | √ |
25D142K | 880 | 1140 | 1200(1200-1540) | √ |
25D162K | 1000 | 1280 | 1600(1400-1760) | √ |
32D:
P/N | AC Voltage | DC Voltage | Varistor Voltage | UL |
32D201K | 130 | 170 | 200(185-225) | √ |
32D241K | 150 | 200 | 240(216-264) | √ |
32D271K | 175 | 232 | 270(243-297) | √ |
32D331K | 210 | 275 | 330(297-363) | √ |
32D361K | 230 | 300 | 360(324-396) | √ |
32D391K | 250 | 320 | 390(351-429) | √ |
32D431K | 275 | 350 | 430(387-473) | √ |
32D471K | 300 | 385 | 470(423-517) | √ |
32D511K | 320 | 415 | 510(459-561) | √ |
32D621K | 385 | 505 | 620(558-682) | √ |
32D681K | 420 | 560 | 680(612-748) | √ |
32D751K | 460 | 615 | 750(675-832) | √ |
32D781K | 485 | 640 | 780(702-858) | √ |
32D821K | 510 | 670 | 820(738-902) | √ |
32D911K | 550 | 745 | 910(819-1001) | √ |
32D951K | 575 | 765 | 950(855-1045) | √ |
32D102K | 632 | 825 | 1000(900-1100) | √ |
32D112K | 680 | 895 | 1100(990-1210) | √ |
32D122K | 750 | 990 | 1200(1080-1320) | √ |
32D142K | 880 | 1140 | 1400(1260-1540) | √ |
32D162K | 1000 | 1280 | 1600(1440-1760) | √ |
Application of Metal Oxide Varistor:
Surge Protector Device,Motor Protector,Over-voltage Protector Device and Lightning Arrester ,etc
RFQ:
Question | Answers | |
1 | What is the MOQ? | 10000pcs. |
2 | What is the payment terms? | Negotiation. |
3 | Can you accept special requirement? | Yes,we can.We can design for your special requirement. |
4 | Can you make the printing artworks(such as user manual/packing/rating label) in our language | Yes,we can.We do OEM for a long time |
5 | Can we order samples: | Yes ,you can . Free samples are available |
Contact Person: Mr. Skyfu
Tel: 86-13713710768
Fax: 86-755-61640998
CE Approval High Accuracy PTC Ceramic Heater 500w 110v 220V 240V for Electric Car Heater
AC 110V 750W Electric Aluminum PTC Heating Element Ceramic Air Heater for Air Conditioner
PTC Heating Elements Ceramic Air Heater Thermostatic Safety 380V 240V For Air Conditioner
Efficient PTC Ceramic Air Heater For Shower Enclosure Heater / Kitchen Warmer Heater
Good Dissipation 1000W PTC Fin Air Heater Aluminum Wire Wound Resistor For Kennel Heating
12v 150w Electric PTC Ceramic Heating Component ISO 9001 Approved For Air Heater
Surface Insulated Air Heating Electric PTC Heater With Temperature Safety Limiter
Energy Efficiency PTC Aluminum Heating Elements For Warm Air Blower Clothes Dryer
12 Volt PTC Ceramic Heating Element 50W AC DC Constant Temperature Ceramic Thermostatic
80 - 300W Ceramic PTC Heating Element For Mosquito Dispeller Yogurt Machine
80 - 220 Degrees Celsius PTC Element Heater 12V Applicable Miniature Heating
Aluminum Boat Shape PTC Ceramic Heating Element 12v~270v For Wax Heater
