Name: MOV Electrical Device Metal Oxide Varistor Selection 7D 10D 14D 20D 25D
Brand: Shenzhen Hwalon Electronic Co., Ltd.
SKU: 20D511K
Price: 2,499.01 USD
Availability: InStock

MOQ:	5000pcs
Standard Packaging:	100pcs/bag
Supply Capacity:	100,000,000pcs/month

Detail Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

MOV

Certification

UL,VDE,CSA

Model Number

20D511K

Operating Temp.:

-40~85 Degree

Size:

7D 10D 14D 20D,25D

Certification:

UL,VDE,CSA

Color:

Blue

Material:

Zinc Oxide

Function:

Surge Protection

Highlight:

MOV electronic device

MOV electrical component

Product Description

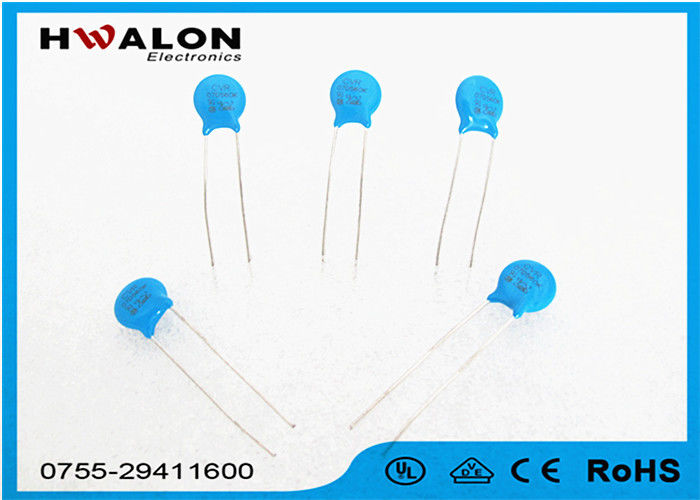

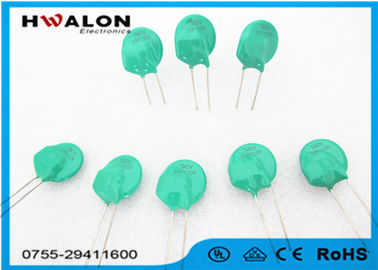

MOV Electrical Device Metal Oxide Varistor Selection 7D 10D 14D 20D 25D

Describtion of Metal Oxide Varistor :

1. Radial leaded type
2. Many size choose 7mm, 10mm, 14mm, 20mm , 25mm and 32mm
3. VM(AC)RMS voltage range from 130V to 1000V
4. Energy absorption capability up to 360J
5. UL ,VDE ,CSA Certification

Parameters of Metal Oxide Varistor :

7D:

P/N	AC Voltage	DC Voltage	Varistor Voltage	UL
7D180L	11	14	18(15-21)	√
7D220K	14	18	22(20-24)	√
7D270K	17	22	27(24-30)	√
7D330K	20	26	33(30-36)	√
7D390K	25	31	39(35-43)	√
7D470K	30	38	47(42-52)	√
7D560K	35	45	76(70-62)	√
7D680K	40	56	68(61-77)	√
7D820K	50	65	82(74-90)	√
7D101K	60	85	100(90-110)	√
7D121K	75	100	120(108-132)	√
7D151K	95	125	150(135-165)	√
7D181K	115	150	180(162-198)	√
7D201K	130	170	200(185-225)	√
7D221K	140	180	220(198-242)	√
7D241K	150	200	240(216-264)	√
7D271K	175	225	270(243-297)	√
7D301K	190	250	300(270-330)	√
7D331K	210	275	330(297-363)	√
7D361K	230	300	360(324-396)	√
7D391K	250	320	390(351-429)	√
7D431K	275	350	430(387-473)	√
7D471K	300	385	470(423-517)	√
7D511K	320	415	510(459-561)	√
7D561K	350	460	560(504-616)	√
7D621K	385	505	620(558-682)	√
7D681K	420	560	680(612-748)	√

10D:

P/N	AC Voltage	DC Voltage	Varistor Voltage	UL
10D180L	11	14	18(15-21)	√
10D220K	14	18	22(20-24)	√
10D270K	17	22	27(24-30)	√
10D330K	20	26	33(30-36)	√
10D390K	25	31	39(35-43)	√
10D470K	30	38	47(42-52)	√
10D560K	35	45	56(50-62)	√
10D680K	40	56	68(61-75)	√
10D820K	50	62	82(74-90)	√
10D101K	60	85	100(90-110)	√
10D121K	75	100	120(108-132)	√
10D151K	95	125	150(135-165)	√
10D181K	115	150	180(162-198)	√
10D201K	130	170	200(185-225)	√
10D221K	140	180	220(198-242)	√
10D241K	150	200	240(216-264)	√
10D271K	175	225	270(243-297)	√
10D301K	190	250	300(270-330)	√
10D331K	210	275	330(297-363)	√
10D361K	230	300	360(324-396)	√
10D391K	250	320	390(351-429)	√
10D431K	275	350	430(387-473)	√
10D471K	300	385	470(423-517)	√
10D511K	320	415	510(459-561)	√
10D561K	350	460	560(504-616)	√
10D621K	385	505	620(558-682)	√
10D681K	420	560	680(612-748)	√
10D751K	460	615	750(675-825)	√
10D781K	485	640	780(702-858)	√
10D821K	510	670	820(738-902)	√
10D911K	550	745	910(819-1001)	√
10D102K	625	825	1000(900-1100)	√
10D112K	680	895	1100(990-1210)	√

14D:

P/N	AC Voltage	DC Voltage	Varistor Voltage	UL
14D180L	11	14	18(15-21)	√
14D220K	14	18	22(20-24)	√
14D270K	17	22	27(24-30)	√
14D330K	20	26	33(30-36)	√
14D390K	25	31	39(35-43)	√
14D470K	30	38	47(42-52)	√
14D560K	35	45	56(50-62)	√
14D680K	40	56	68(61-75)	√
14D820K	50	65	82(74-90)	√
14D141K	60	85	100(90-110)	√
14D121K	75	100	120(108-132)	√
14D151K	95	125	150(135-165)	√
14D181K	115	150	180(162-198)	√
14D201K	130	170	200(185-225)	√
14D121K	140	180	220(198-242)	√
14D241K	150	200	240(216-264)	√
14D271K	175	225	270(243-297)	√
14D301K	190	250	300(270-330)	√
14D331K	210	275	330(297-363)	√
14D361K	230	300	360(324-396)	√
14D391K	250	320	390(351-429)	√
14D431K	275	350	430(387-473)	√
14D471K	300	385	470(423-517)	√
14D511K	320	415	510(459-561)	√
14D561K	350	460	560(504-616)	√
14D621K	385	505	620(558-682)	√
14D681K	420	560	680(612-748)	√
14D751K	460	615	750(675-825)	√
14D781K	485	640	780(702-858)	√
14D821K	510	670	820(738-902)	√
14D911K	550	745	910(819-1001)	√
14D102K	625	825	1000(900-1100)	√
14D112K	680	895	1100(990-1210)	√
14D122K	740	975	1200(1080-1320)	√
14D182K	1000	1465	1800(1620-1980)	√

20D:

P/N	AC Voltage	DC Voltage	Varistor Voltage	UL
20D180L	11	14	18(15-21)	√
20D220K	14	18	22(20-24)	√
20D270K	17	22	27(24-30)	√
20D330K	20	26	33(30-36)	√
20D390K	25	31	39(35-43)	√
20D470K	30	38	47(42-52)	√
20D560K	35	45	56(50-62)	√
20D680K	40	56	68(61-75)	√
20D820K	50	65	82(74-90)	√
20D101K	60	85	100(90-110)	√
20D121K	75	100	120(108-132)	√
20D151K	95	125	150(135-165)	√
20D181K	115	150	180(162-198)	√
20D201K	130	170	200(185-225)	√
20D221K	140	180	220(198-242)	√
20D241K	150	200	240(216-264)	√
20D271K	175	225	270(243-297)	√
20D301K	190	250	300(270-330)	√
20D331K	210	275	330(297-363)	√
20D361K	230	300	360(324-396)	√
20D391K	250	320	390(351-429)	√
20D431K	275	350	430(387-473)	√
20D471K	300	385	470(423-517)	√
20D511K	320	415	510(459-561)	√
20D561K	350	460	560(504-616)	√
20D621K	385	505	620(558-682)	√
20D681K	420	560	680(612-748)	√
20D751K	460	615	750(675-825)	√
20D781K	485	640	780(702-858)	√
20D821K	510	670	820(738-902)	√
20D911K	550	745	910(819-1001)	√
20D102K	625	825	1000(900-1100)	√
20D112K	680	895	1100(990-1210)	√
20D122K	750	990	1200(1080-1320)	√
20D182K	1000	1465	1800(1620-1980)	√

25D;

P/N	AC Voltage	DC Voltage	Varistor Voltage	UL
25D180L	11	14	18(15-21)	√
25D220K	14	18	22(20-24)	√
25D270K	17	22	27(24-30)	√
25D330K	20	26	33(30-36)	√
25D390K	25	31	39(35-43)	√
25D470K	30	38	47(42-52)	√
25D560K	35	45	56(50-62)	√
25D680K	40	56	68(61-75)	√
25D820K	50	65	82(61-75)	√
25D101K	60	85	100(90-100)	√
25D121K	75	100	120(105-132)	√
25D151K	95	125	150(135-165)	√
25D181K	115	150	180(162-198)	√
25D201K	130	170	200(185-225)	√
25D221K	140	180	220(198-242)	√
25D241K	150	200	240(216-264)	√
25D271K	175	225	270(243-297)	√
25D301K	190	250	300(270-330)	√
25D331K	210	275	330(297-363)	√
25D361K	230	300	360(324-396)	√
25D391K	250	320	390(351-429)	√
25D431K	275	350	430(387-473)	√
25D471K	300	385	470(423-517)	√
25D511K	320	415	510(459-561)	√
25D561K	350	460	560(504-616)	√
25D621K	385	505	620(558-682)	√
25D681K	420	560	680(612-748)	√
25D751K	460	615	750(675-825)	√
25D781K	485	640	780(702-858)	√
25D821K	510	670	820(738-902)	√
25D911K	550	745	910(819-1001)	√
25D102K	625	825	1000(900-1100)	√
25D112K	680	895	1100(990-1210)	√
25D122K	750	990	1200(1080-1320)	√
25D142K	880	1140	1200(1200-1540)	√
25D162K	1000	1280	1600(1400-1760)	√

Application of Metal Oxide Varistor:

Surge Protector Device,Motor Protector,Over-voltage Protector Device and Lightning Arrester ,etc

RFQ:

	Question	Answers
1	What is the MOQ?	5000pcs.
2	What is the payment terms?	Negotiation.
3	Can you accept special requirement?	Yes,we can.We can design for your special requirement.
4	Can you make the printing artworks(such as user manual/packing/rating label) in our language	Yes,we can.We do OEM for a long time
5	Can we order samples:	Yes ,you can . Free samples are available

MOV Electrical Device Metal Oxide Varistor Selection 7D 10D 14D 20D 25D 0
