|Thickness:||2.8-3.6mm||Rated Voltage:||12-240V AC/DC Or Customized|
|Resistance:||10Kohms||Package Type:||Throught Hole|
ptc ceramic heating element,
ptc heater element,
Low Voltage 12V Ceramic Heating Element

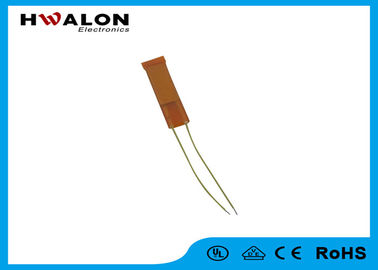

Low Voltage 12v Ceramic Heating Element For Hair Dryer And Hair Straighteners
1. Energy saving, high thermal efficiency, the unit heat capacity than the PTC save 20%-30%;
2. Security is not charged surface, insulation performance is good, can endure the withstand voltage of 4500v / 10s test, no breakdown, leakage current <0.5mA ;
3. No impact current peak;
4. Heating up fast;
5. Without power attenuation;
6. Security, the halogen-light;
7. Good heat uniform consistency, high power density;
8. Environmental protection, do not contain lead, cadmium, mercury, hexavalent chromium, such as pests, in full compliance with the eu ROHS environmental protection requirements;
9. Long service life.
10. At present the highest temperature can reach 500℃, especially suitable for industrial electric oven.
Parameters of battery powered heating element :
|length||width||thickness||temperature||voltage||the length of the cable|
|70mm||13mm||3.1mm||275 Centidegree||220V/110V||150mm(length as per your request)|
|70mm||12mm||3.1mm||255 Centidegree||220V/110V||155mm(length as per your needed)|
|64mm||12mm||2.9mm||230 Centidegree||220V/110V||250MM(length as per your interested in)|
|52mm||12mm||3.1mm||180 Centidegree||220V/110V||150mm(length as per your request)|
|35mm||10mm||2.8mm||220 Centidegree||220V/110V||55mm( as per your interested in )|
|24mm||8mm||3.1mm||160 Centidegree||220V/110V||120mm( length as per your needed)|
|220V/110V||125mm(length as per your request)

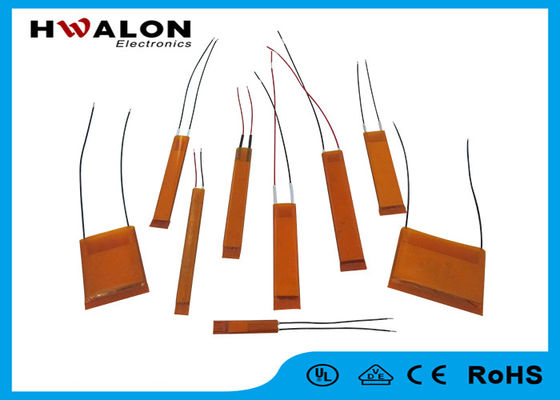

PTC heating elements:
1. Working Voltage rang: 12-240V AC/DC or customized
2. Surface Temperature: 70°C~300°C , the temperature tolerance less than ±5°C.
3. The lead wire, fiber glass sleeve, insulate film and shells can customized according to per customers requirements.
Unlike traditional heating elements that use a resistance wire such as Nichrome to generate heat,PTC heating elements are made as ceramic stones, ase on barium titanate.
They have unique characteristics as semeconductors and their ferro-electric propertise can be precisely determined during their design.
|General size(Length * width)(mm)||70*10,70*15,80*13,90*12,55*10,40*34 Special size can be produced according to customer requirements (single-chip maximum power up to 500W)|
|Long side tolerance(mm)||± 1.00|
|Wide side tolerance(mm)||± 0.3|
|Color & state||
1. shoe-drying apparatus ,hair curling equipment
2. physical treatment, massage apparatus,biology heating
3. air-heating,wind-warming equipment ,cold and warm air-conditioner
4. mosquito-driving apparatus,boiled-water equipment,heating board
How to Order:
1. Application of the PTC heater : _______
2. Working environment of the PTC heater :______
3. The range of operating temperature:___℃to ____℃
*4. Dimension of the PTC heater: _______
*5. R(25) Value :_____
*6. Surface Temperature:_____
* Fill “*” items necessarily
