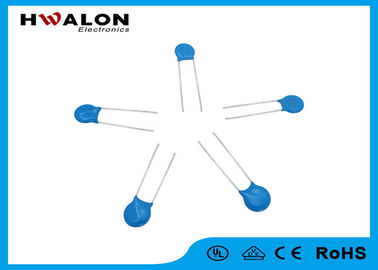

High Sensitivity Metal Oxide Varistor With Straight Lead For Lighting Arrester

High Sensitivity Metal Oxide Varistor With Straight Lead For Lighting Arrester

  • High Sensitivity Metal Oxide Varistor With Straight Lead For Lighting Arrester
  • High Sensitivity Metal Oxide Varistor With Straight Lead For Lighting Arrester
High Sensitivity Metal Oxide Varistor With Straight Lead For Lighting Arrester
Product Details:
Place of Origin: CHINA
Brand Name: MOV
Certification: UL,VDE,CSA
Model Number: 10D431K
Payment & Shipping Terms:
Minimum Order Quantity: 10000pcs
Price: By negotiation
Packaging Details: 500pcs/bag
Delivery Time: 5-7 days after payment received
Payment Terms: T/T, Western Union
Supply Ability: 100,000,000pcs/month
Contact Now
Detailed Product Description
Varistor Voltage: 430V Chip Size: 10 Mm
Epoxy Color: Blue Lead Type: Straight Lead
Model NO.: 10D431K Feature: High Sensitivity
Highlight:

MOV electronic component

,

MOV electronic device



High Sensitivity Metal Oxide Varistor With Straight Lead For Lighting Arrester


Construction :



Round varistor element, leaded

Coating : epoxy resin, flame-retardant to UL 94 V - 0



Description :


Metal oxide varistor is the core of the arrester,which main component is Zinc Oxide and with a small quantity of bismuth oxide, fluoride oxide, manganous carbonate, antimony oxide and other gleam of additive and made with high temperature.



Features :



  • Wide operating voltage range 11 ~ 1100 V rms
  • High surge current ratings up to 8 kA
  • No derating up to 85 degree ambient temperature





  • For S14 / S20 types duty cycle @ 6kV / 3kA = > 10 pulses, according to IEC 60950 - 1, Annex Q; IEC 61051 - 2
  • PSpice models


Detailed Parameters:



P/N 10D431K
Size 10mm
AC voltage 275V
DC Voltage 350V
Varistor Voltage 430V(387-473)
Max Clamping Voltage / Current 775V/25A
Max Peak Current (1 time) 2500A
Max Peak Current (2 times) 1250A
Capacitance 150pf



All the above parameters is customized to meet customers' requirements.



If the parameters you need is special and Not standard,No worries.Just please feel free to inform us. We will customize the parameters for you to meet your requirements.


Specification :


P/N AC Voltage DC Voltage Varistor Voltage UL
10D431K 275 350 430(387-473)



Custom specifications can be designed according to customer's requirements.


Typical Applications :

It can be widely used on Surge Protector Device, Motor Protector, Over-voltage Protector Device and Lightning Arrester, etc.

Competitive Advantage :



1. Radial leaded type
2. Many size choice : 7mm, 10mm, 14mm, 20mm, 25mm and 32mm
3. VM(AC)RMS voltage range from 130V to 1000V


4. Energy absorption capability up to 360J
5. UL ,VDE ,CSA Certification



Delivery Mode :



Option 1 Bulk (standard)
Option 2 taped versions on reel pack
Option 3 taped versions on Ammo pack



Just pls choose any way you like, then we will do it for you upon request.



Packing:



Each product will be packed in OPP Bag + Carton.

The outer cartons of the goods, which white plastic strap is pasted, to keep from busting out once the goods is facing creaking and striking.

In general, the goods can be sent to you by Express,by Plane,by Sea, any way you like.



Delivery:



15 ~ 20 days is needed for mass production after payment received.



Then send out as customers' demands.



High Sensitivity Metal Oxide Varistor With Straight Lead For Lighting Arrester


High Sensitivity Metal Oxide Varistor With Straight Lead For Lighting Arrester 0



If any questions or ideas,just please feel free to contact us, since we hold the opinion that any questions or trouble can be absolutely settled.

It is our hope, by joint effort, to promote both business and friendship to our mutual advantage.
