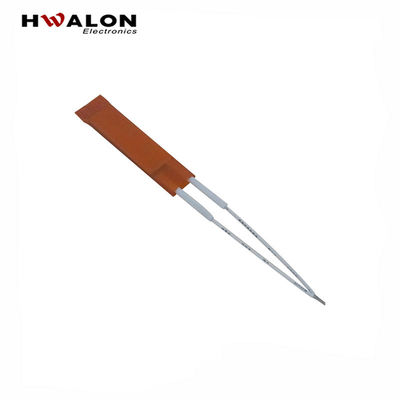

PTC Heating Element Insulating Film 25x15x3.5mm AC220V 150 170 200 230 Degrees Constant Temperature Air Heater Plate

PTC Heating Element Insulating Film 25x15x3.5mm AC220V 150 170 200 230 Degrees Constant Temperature Air Heater Plate

  • PTC Heating Element Insulating Film 25x15x3.5mm AC220V 150 170 200 230 Degrees Constant Temperature Air Heater Plate
  • PTC Heating Element Insulating Film 25x15x3.5mm AC220V 150 170 200 230 Degrees Constant Temperature Air Heater Plate
PTC Heating Element Insulating Film 25x15x3.5mm AC220V 150 170 200 230 Degrees Constant Temperature Air Heater Plate
Product Details:
Place of Origin: China
Brand Name: Hwalon
Certification: RoHS
Model Number: PR4
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: USD 0.27-2.16 per piece
Packaging Details: Poly bags + Carton boxes
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 200,000
Contact Now
Detailed Product Description
Heating Element: PTC Function: Heating With Overheat Protection
Resistance: 100-600 Ohms Surface Temperature: +80°C ~ +280°C
Material: Ceramic+yellow Paper Power: Electric
Application: Machinery Repair Shops, Manufacturing Plant, Food & Bevera Color: Yellow
High Light:

PTC Heating Element AC220V

,

230 Degrees PTC Heating Element

,

PTC Constant Temperature Air Heater Plate

Product Name:



PTC Heating Element Insulating Film 25X15X3.5mm AC 220V 150/170/2000/230 Degrees Constant Temperature Air Heater Plate





Features:



· With charcteristics of constant temperature

· PTC hearter does not require temperature controlling system

· It is safe when liquid is burnt out in liquid heating device

· Not sensitive to voltage fluctuating

· Wide operating voltage

· Restore automatically after invalidation



Typical Applications:

Boiled-water equipment.
Wax warmer,hair-curling equipment, glue gun, dehumidifier
Air-heating, wind-warming equipment, cold and warm air-conditioner.
Physical treatment, massage apparatus, biology heating.
Mosquito-driving apparatus, heating board.
Shoe-drying apparatus, etc.



General Parameters:





Model NO.: Pr4 Name: PTC Thermistor
Max operating voltage: 15V~270V rms
Surge Voltage Withstanding:

400V~900V rms

Rated Voltage: 3.6V~240V rms Tolerance of Resistance: ±30% ~ ±50%
Tolerance of Surface Temp.:

±3℃ ~ ±10℃

Operating Temp. Range: -25~+125°C,0~+60°C
Unit price: Factory price MOQ: 500Pcs
Sample: Online negtiation Sample time: 2-5days
Design: OEM&ODM is availabe Payment terms: T/T or online negotiation
Port of loading Shenzhen  Certification: SGS,RoHs,ISO9001





PTC Heating Element Insulating Film 25x15x3.5mm AC220V 150 170 200 230 Degrees Constant Temperature Air Heater Plate 0PTC Heating Element Insulating Film 25x15x3.5mm AC220V 150 170 200 230 Degrees Constant Temperature Air Heater Plate 1

Reference Drawing:

PTC Heating Element Insulating Film 25x15x3.5mm AC220V 150 170 200 230 Degrees Constant Temperature Air Heater Plate 2

Parameters:

.png





Applications

PTC Heating Element Insulating Film 25x15x3.5mm AC220V 150 170 200 230 Degrees Constant Temperature Air Heater Plate 4
