PTC Ceramic Heating Element with Auto Constant Temperature and Corrugated Aluminum Fin for 12V-380V Wide Voltage Applications
  • name
  • name

PTC Ceramic Heating Element with Auto Constant Temperature and Corrugated Aluminum Fin for 12V-380V Wide Voltage Applications

MOQ: 500
Price: $3.1–$7.6/pc
Standard Packaging: cartons
Delivery Period: 10-15working days
Payment Method: T/T
Supply Capacity: 200000 pieces per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Hwalon
Certification
CE,UL
Model Number
PTC ceramic heating element
Working Voltage:
12V~380V AC/DC Customizable
Rated Power:
50W~7500W Adjustable
Surface Temperature:
60℃-260℃ Self Constant Temperature
Core Function:
Auto Constant Temperature Self Limiting Heating
Heat Dissipation Material:
Corrugated Aluminum Alloy Fin
Product Description

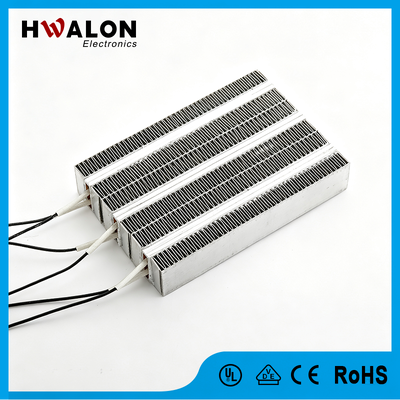

PTC Ceramic Corrugated Heating Element
This corrugated PTC ceramic heating element is designed for stable, fast, and safe electric heating applications. It uses high-performance PTC ceramic chips as the heat-generating core, combined with corrugated aluminum alloy fins to expand the heat dissipation area and improve heat transfer efficiency.
Compared with traditional resistance heating wires, this PTC heating module features automatic constant temperature, lower surface oxidation risk, and built-in overheating protection. It can be widely used in space heaters, air conditioners, dehumidifiers, clothes dryers, industrial hot air systems, and other heating equipment.
We support custom voltage, power, size, lead wire, mounting bracket, and insulation requirements according to customer drawings or application conditions.
Product Features
  • Automatic constant temperature operation reduces the need for complex external control systems
  • Corrugated fin structure increases heat exchange area and improves heating speed
  • PTC ceramic material provides positive temperature coefficient protection against overheating
  • Double insulation design enhances electrical safety and reduces leakage risk
  • Low resistance attenuation ensures stable heating performance after long-term operation
  • Customizable size, power, lead wire and installation structure for different equipment needs
Technical Parameters
Parameter Range Customization
Working Voltage 12V~380V AC/DC Support custom voltage
Rated Power 50W~7500W Power can be adjusted by ceramic chip quantity
Surface Temperature 60℃~260℃ According to application requirements
Insulation Withstand Voltage ≥2500V Standard or higher on request
Material PTC Ceramic + Aluminum Alloy Fin + Insulation Layer Custom structure available
Installation Method Bracket fixing, screw fixing, customer design Support custom mounting
Working Principle
The PTC ceramic heating element works based on the positive temperature coefficient effect. When power is supplied, the ceramic chip generates heat and quickly reaches the set temperature range. Once the temperature approaches the Curie point, the resistance increases sharply, which automatically reduces the heating power.
This self-regulating function helps prevent overheating even in abnormal working conditions. The heat is then transferred to the corrugated aluminum fins and dissipated into the air through convection, forming a stable heating system.
Advantages
  • High Safety: Built-in overheat protection reduces fire risk caused by continuous high temperature. The flameless heating structure is more suitable for enclosed equipment.
  • Stable Heating Performance: PTC ceramic chips show low resistance attenuation, which helps maintain stable heating output even after thousands of hours of operation.
  • Fast Heat Transfer: The corrugated aluminum fin structure provides a larger contact area with air, improving heat transfer efficiency and reducing warm-up time.
  • Customizable Solution: We can adjust voltage, power, dimension, lead wire position, insulation structure and mounting method according to different equipment designs.
  • Lower Maintenance Cost: Reliable ceramic heating structure reduces frequent replacement and after-sales problems, especially suitable for mass production and long-term equipment operation.
Applications
This PTC corrugated heating assembly is widely used in:
  • Space heaters
  • Portable air conditioners
  • Dehumidifiers
  • Clothes dryers
  • Cabinet heaters
  • Industrial hot air drying systems
  • Constant temperature medical equipment
  • Agricultural and animal husbandry heating equipment
It is suitable for household, commercial and industrial heating scenarios.
Frequently Asked Questions
Q1: Are you a manufacturer or trading company?
A1: We are a manufacturer focused on PTC heating elements and custom heating modules. We can provide technical drawings, testing reports and bulk production service.
Q2: Can I get a sample before placing a large order?
A2: Yes, we can provide samples for performance testing. Customized samples may require additional tooling or proofing fees.
Q3: What information is needed for a custom quotation?
A3: Please provide working voltage, rated power, required dimensions, installation method, lead wire requirement and application equipment. If possible, sending a drawing will help us offer a more accurate quotation.
Q4: What is the delivery time?
A4: Standard samples usually take 3-7 working days. Mass production generally takes 10-20 working days, depending on order quantity and customization complexity.
