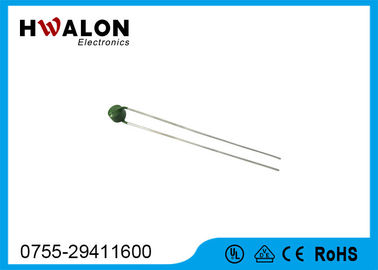

30V 80℃ Overheat Protection Fixed Value Resistor Thermistor RoHS Approved

30V 80℃ Overheat Protection Fixed Value Resistor Thermistor RoHS Approved

MOQ: 10,000pcs
Standard Packaging: CTN package, according to customer’s requirement if necessary
Delivery Period: 10 to 15 days
Payment Method: T/T, Western Union
Supply Capacity: 1,000,000pcs
Detail Information
Place of Origin
China
Brand Name
HWA
Certification
RoHS
Model Number
PR6
Technology:
Ceramic Composition
Type:
Fixed Resistor
Switch Temperature:
40℃~110℃
Protection Temperature:
60℃~120℃
Max. Voltage:
30V
Max. Current:
100mA
Highlight:

PTC electronic component

,

fixed value resistor

Product Description



30V 80℃ Overheat Protection Fixed Value Resistor Thermistor RoHS Approved





Type Selection:



part no. max. voltage (V) switch temp. ( ℃) protection temp. ( ℃) R25 ℃ ( Ω ) max Rs-15 ℃ ( Ω) Rs ( Ω) max current(mA)
H6PR101R60 30 40 60 100 330 470 100
H6PR101R70 30 50 70 100 330 470 100
H6PR101R80 30 60 80 100 330 470 100
H6PR101R90 30 70 90 100 330 470 100
H6PR101R100 30 80 100 100 330 470 100
H6PR101R110 30 90 110 100 330 470 100
H6PR101R120 30 100 120 100 330 470 100
H6PR101R130 30 110 130 100 330 470 100
H6PR331R60 30 40 60 330 1500 2200 100
H6PR331R70 30 50 70 330 1500 2200 100
H6PR331R80 30 60 80 330 1500 2200 100
H6PR331R90 30 70 90 330 1500 2200 100
H6PR331R100 30 80 100 330 1500 2200 100
H6PR331R110 30 90 110 330 1500 2200 100



Dimensions:



30V 80℃ Overheat Protection Fixed Value Resistor Thermistor RoHS Approved 030V 80℃ Overheat Protection Fixed Value Resistor Thermistor RoHS Approved 130V 80℃ Overheat Protection Fixed Value Resistor Thermistor RoHS Approved 2



Description and features:



  • PTC thermistor for overheat protection is a million-time device of automatic protection, recoverability, using repeatedly, and no trigger, noice or sparks.

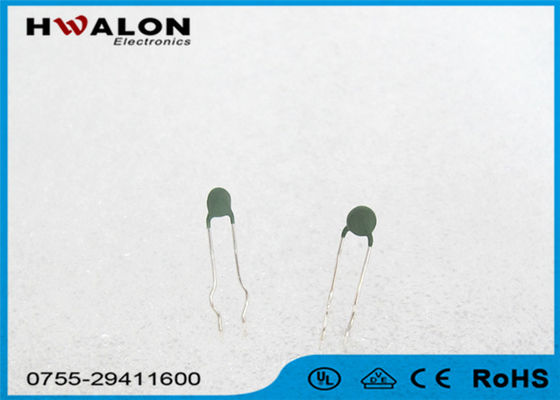

  • Two shapes for your reference, lead type and surface mount type
  • Electrode material: silver
  • Welding material: tin-silver alloy
  • Encapsulation material: silicone, green, flammability 94V-0
  • Lead material: tinned copper wire



Usages:



LED control panel

switching power supply

electric oven

Transformer



Competitive Advantage:

Wide range protection temperature: 30~150°C

Short action time

Good stability

Small size and convenient installment

No requirement for reseting after over-heat protection

We can offer equivalent PTC thermistor of Thinking & TDK





Qualified overheat protection thermistor in LED control panel, switching power supply

30V 80℃ Overheat Protection Fixed Value Resistor Thermistor RoHS Approved 3
