| Place of Origin: | China |
| Brand Name: | HWA |
| Certification: | RoHS |
| Model Number: | PR6 |
| Minimum Order Quantity: | 10,000pcs |
|---|---|
| Packaging Details: | CTN package, according to customer’s requirement if necessary |
| Delivery Time: | 10 to 15 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1,000,000pcs |
| Type: | Fixed Resistor | Switch Temperature: | 40℃~110℃ |
|---|---|---|---|
| Protection Temperature: | 30℃~150℃ | Max. Voltage: | 30V |
| Max. Current: | 100mA | Origin Of Place: | China |
| Encapsulation Type: | Surface Mount | Technology: | Ceramic Composition |
| High Light: | fixed value resistor,PTC resistor |
||

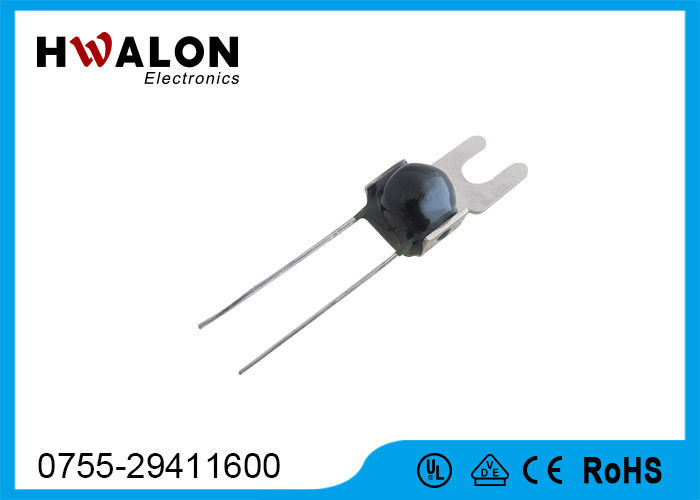

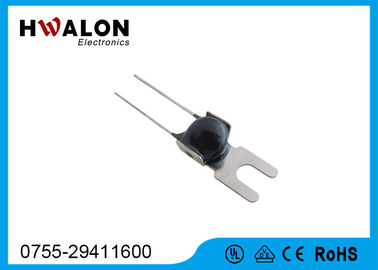

Overheat Protection PTC Resistance Thermistor 30 Volt Energy Efficient
Part no. Selection:
| part no. | max. voltage (V) | switch temp. ( ℃) | protection temp. ( ℃) | R25 ℃ ( Ω ) max | Rs-15 ℃ ( Ω) | Rs ( Ω) | max current(mA) |
| H6PR101R60 | 30 | 40 | 60 | 100 | 330 | 470 | 100 |
| H6PR101R70 | 30 | 50 | 70 | 100 | 330 | 470 | 100 |
| H6PR101R80 | 30 | 60 | 80 | 100 | 330 | 470 | 100 |
| H6PR101R90 | 30 | 70 | 90 | 100 | 330 | 470 | 100 |
| H6PR101R100 | 30 | 80 | 100 | 100 | 330 | 470 | 100 |
| H6PR101R110 | 30 | 90 | 110 | 100 | 330 | 470 | 100 |
| H6PR101R120 | 30 | 100 | 120 | 100 | 330 | 470 | 100 |
| H6PR101R130 | 30 | 110 | 130 | 100 | 330 | 470 | 100 |
| H6PR331R60 | 30 | 40 | 60 | 330 | 1500 | 2200 | 100 |
| H6PR331R70 | 30 | 50 | 70 | 330 | 1500 | 2200 | 100 |
| H6PR331R80 | 30 | 60 | 80 | 330 | 1500 | 2200 | 100 |
| H6PR331R90 | 30 | 70 | 90 | 330 | 1500 | 2200 | 100 |
| H6PR331R100 | 30 | 80 | 100 | 330 | 1500 | 2200 | 100 |
| H6PR331R110 | 30 | 90 | 110 | 330 | 1500 | 2200 | 100 |
Dimensions:
Usages:
LED control panel
switching power supply
automatic lathe
electro-thermal oven
transformers
Typical application circuit: overheat protection circuit and overheat sensing heat
Description and features:
Competitive Advantage:
Wide range protection temperature: 30~150°C
Short action time
Good stability
Small size and convenient installment
No requirement for reseting after over-heat protection
We can offer equivalent PTC thermistor of Thinking & TDK
RoHS approved Overheat Protection Thermistor PTC Thermistor with high precision 30V
