Automatic Thermal Protection Thermistor PTC Lead Type / Surface Mount Type

Automatic Thermal Protection Thermistor PTC Lead Type / Surface Mount Type

  • Automatic Thermal Protection Thermistor PTC Lead Type / Surface Mount Type
  • Automatic Thermal Protection Thermistor PTC Lead Type / Surface Mount Type
Automatic Thermal Protection Thermistor PTC Lead Type / Surface Mount Type
Product Details:
Place of Origin: China
Brand Name: HWA
Certification: RoHS
Model Number: PR6
Payment & Shipping Terms:
Minimum Order Quantity: 10,000pcs
Packaging Details: CTN package, according to customer’s requirement if necessary
Delivery Time: 10 to 15 days
Payment Terms: T/T, Western Union
Supply Ability: 1,000,000pcs
Contact Now
Detailed Product Description
Type: Fixed Resistor Technology: Ceramic Composition
Function: Thermal Protection Max. Voltage: 30V
Switch Temperature: 40℃~110℃ Protection Temperature: 30℃~150℃
Max. Current: 100mA Color: Green
Highlight:

PTC electronic component

,

fixed value resistor

Automatic Thermal Protection Thermistor PTC Lead Type / Surface Mount Type





Part no. Selection:



part no. max. voltage (V) switch temp. ( ℃) protection temp. ( ℃) R25 ℃ ( Ω ) max Rs-15 ℃ ( Ω) Rs ( Ω) max current(mA)
H6PR101R60 30 40 60 100 330 470 100
H6PR101R70 30 50 70 100 330 470 100
H6PR101R80 30 60 80 100 330 470 100
H6PR101R90 30 70 90 100 330 470 100
H6PR101R100 30 80 100 100 330 470 100
H6PR101R110 30 90 110 100 330 470 100
H6PR101R120 30 100 120 100 330 470 100
H6PR101R130 30 110 130 100 330 470 100
H6PR331R60 30 40 60 330 1500 2200 100
H6PR331R70 30 50 70 330 1500 2200 100
H6PR331R80 30 60 80 330 1500 2200 100
H6PR331R90 30 70 90 330 1500 2200 100
H6PR331R100 30 80 100 330 1500 2200 100
H6PR331R110 30 90 110 330 1500 2200 100



Dimensions:



type one: the first surface mount

∮8.5(±0.5)*6.5(max.)



Automatic Thermal Protection Thermistor PTC Lead Type / Surface Mount Type 0



type two: the second surface mount

∮7.8(±0.3)*4(±0.3)



Automatic Thermal Protection Thermistor PTC Lead Type / Surface Mount Type 1

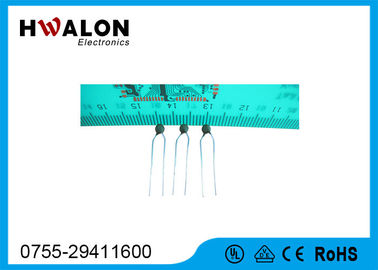

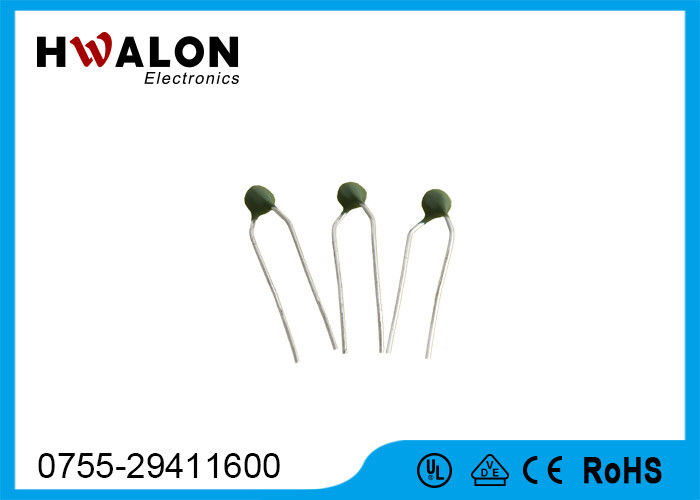

type three: lead type

∮4.5(max.)*3.5(max.)



Automatic Thermal Protection Thermistor PTC Lead Type / Surface Mount Type 2



above dimensions are our conventinal dimensions, we can also OEM for customers.





Description and features:



  • PTC thermistor for overheat protection is a million-time device of automatic protection;
  • Recoverability, can be used repeatedly;
  • Welding material: tin-silver alloy;
  • No trigger, noice or sparks;
  • Lead material: tinned copper wire;
  • Encapsulation material: silicon resin
  • Two shapes: lead type and surface mount type;
  • Electrode material: silver;
  • Encapsulation material: green, silicone, flammability 94V-0.







Competitive Advantage:





1, We can offer equivalent PTC thermistor of Thinking & TDK

2, No requirement for reseting after over-heat protection

3, Long life working time

4, Good stability

5, Quick action

6, Wide range protection temperature: 30~150°C

7, Convenient installment and small size





Usages:



    1, LED control panel

    2, LED lighting

    3, switching power supply

    4, automatic lathe

    5, transformers

    6, electro-thermal oven





Typical application circuit: overheat protection circuit and overheat sensing heat.





stable performance thermal protection Overheat Protection Thermistor for LED lighting



Automatic Thermal Protection Thermistor PTC Lead Type / Surface Mount Type 3
