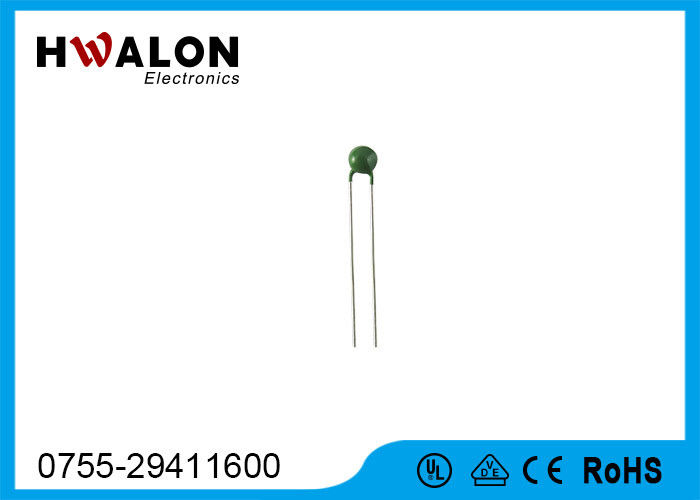

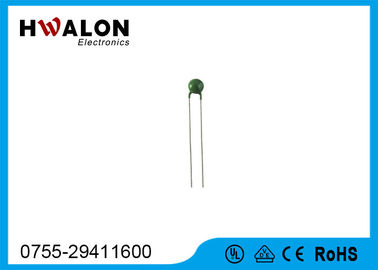

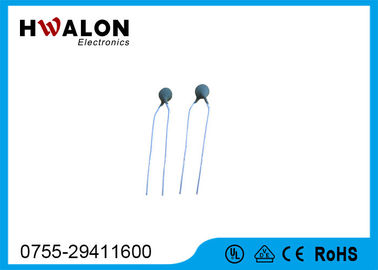

Professional Silicon Resin Overheat Protection Thermistor , PTC Thermistor Resistor
  • name
  • name

Professional Silicon Resin Overheat Protection Thermistor , PTC Thermistor Resistor

MOQ: 10,000pcs
Standard Packaging: CTN package, according to customer’s requirement if necessary
Delivery Period: 10 to 15 days
Payment Method: T/T, Western Union
Supply Capacity: 1,000,000pcs
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
HWA
Certification
RoHS
Model Number
PR6
Function:
Thermal Protection
Max. Voltage:
30V
Switch Temperature:
40℃~110℃
Protection Temperature:
30℃~150℃
Max. Current:
100mA
Color:
Green
Technology:
Ceramic Composition
Type:
Fixed Resistor
Origin Of Place:
China
Encapsulation Material:
Silicon Resin
Highlight:

fixed value resistor

,

PTC resistor

Product Description



Professional Silicon Resin Overheat Protection Thermistor , PTC Thermistor Resistor





Description and features:



  • PTC thermistor for overheat protection is a million-time device of automatic protection;
  • Recoverability, can be used repeatedly;
  • Encapsulation material: green, silicone, flammability 94V-0.
  • Welding material: tin-silver alloy;
  • No trigger, noice or sparks;
  • Lead material: tinned copper wire;
  • Electrode material: silver;
  • Encapsulation material: silicon resin
  • Two shapes: lead type and surface mount type;





Competitive Advantage:





1, No requirement for reseting after over-heat protection

2, Good stability

3, Quick action

4, Wide range protection temperature: 30~150°C

5, Convenient installment and small size





Application:



application
LED control panel LED lighting switching power supply automatic lathe transformers electro-thermal oven







Typical application circuit:  overheat sensing heat and overheat protection circuit.





Part no. for your reference:



part no. max. voltage (V) switch temp. ( ℃) protection temp. ( ℃) R25 ℃ ( Ω ) max Rs-15 ℃ ( Ω) Rs ( Ω) max current(mA)
H6PR101R60 30 40 60 100 330 470 100
H6PR101R70 30 50 70 100 330 470 100
H6PR101R80 30 60 80 100 330 470 100
H6PR101R90 30 70 90 100 330 470 100
H6PR101R100 30 80 100 100 330 470 100
H6PR101R110 30 90 110 100 330 470 100
H6PR101R120 30 100 120 100 330 470 100
H6PR101R130 30 110 130 100 330 470 100
H6PR331R60 30 40 60 330 1500 2200 100
H6PR331R70 30 50 70 330 1500 2200 100
H6PR331R80 30 60 80 330 1500 2200 100
H6PR331R90 30 70 90 330 1500 2200 100
H6PR331R100 30 80 100 330 1500 2200 100
H6PR331R110 30 90 110 330 1500 2200 100



Dimensions:



one: lead type

∮4.5(max.)*3.5(max.)



Professional Silicon Resin Overheat Protection Thermistor , PTC Thermistor Resistor 0

two: the first surface mount

∮8.5(±0.5)*6.5(max.)



Professional Silicon Resin Overheat Protection Thermistor , PTC Thermistor Resistor 1



three: the second surface mount

∮7.8(±0.3)*4(±0.3)



Professional Silicon Resin Overheat Protection Thermistor , PTC Thermistor Resistor 2







We can OEM for customers except for above dimensions.





silicon resin PTC thermistor thermal protection Overheat Protection Thermistor for LED lighting



Professional Silicon Resin Overheat Protection Thermistor , PTC Thermistor Resistor 3
