Area 3, block B, huafeng huayuan science&technology innovation park, bao'an district, shenzhen, guangdong, china | market@hwalon.com |
Place of Origin: | China |
Brand Name: | HWALON |
Certification: | RoHS |
Model Number: | PR4 |
Minimum Order Quantity: | 1000pcs |
---|---|
Price: | Negotiation |
Packaging Details: | Standard CTN package or according to customer’s requirement |
Delivery Time: | 15 to 20 days |
Payment Terms: | T/T, Western Union,Paypal |
Supply Ability: | 100,000pcs |
Item Name: | PTC Air Heater | Heater Size: | 96mm × 88.5mm × 15 Mm |
---|---|---|---|
Voltage: | 240 V | Power: | 1500W |
Application: | Thermal Retention | Outlet Temperature: | 60 Degree |
High Light: | PTC electric heater,electric PTC heater |

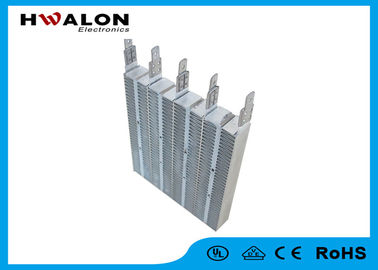

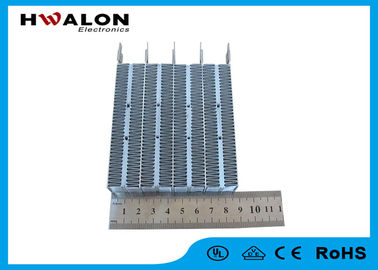

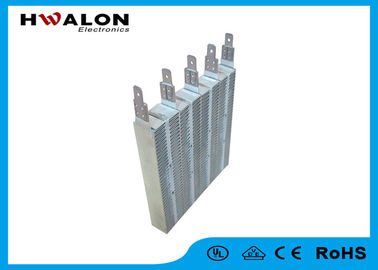

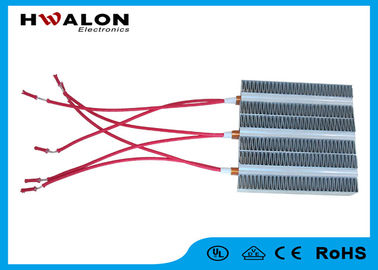

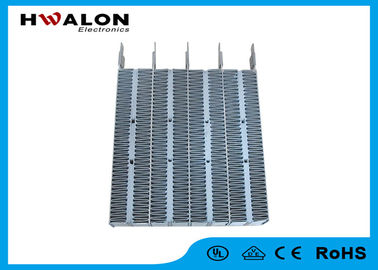

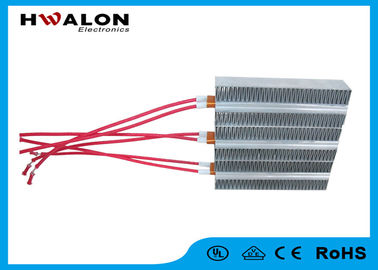

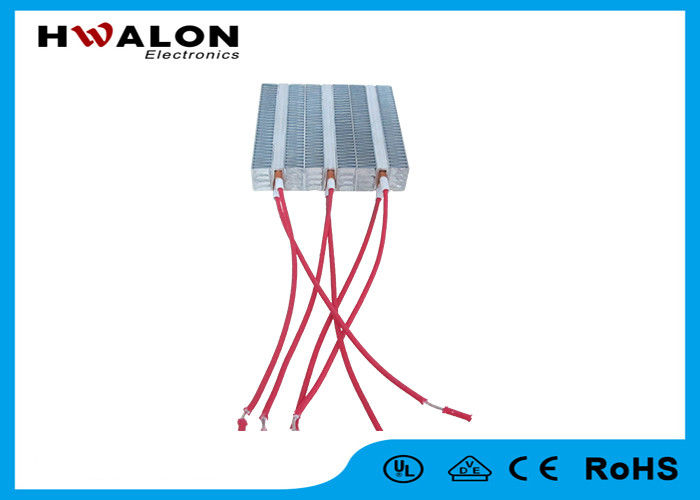

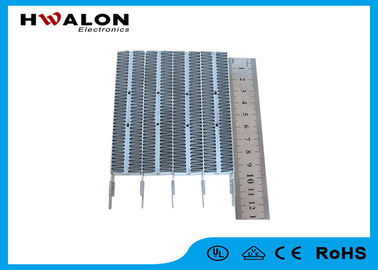

PTC heating dyer fin element /air curtain heating element/ventilation air heating coil tube
Features:
1. No moving parts to wear;
2. Very high reliability, impossible to overheat;
3. PPS frames and other accessories available;
4. Can be water-proof, no electricity leakage or cause short circuit;
5. Fast thermal heating rate, low inrush current;
6. Does not burn when in contact with paper,matches or clothes.
Detailed Parameters:
Item | Parameters |
Inner PTC Element Shape | Rectangular shape |
Inner PTC Element Material | Ceramic |
Inner PTC Element Quantity | Based on Power Demands |
Heater Shape | Square shape |
Heater Material | Aluminum |
Heater Dimension | 120mm × 107mm × 15 mm |
Design | Ripple Design |
Power | 1600W |
Voltage | 240 V |
Outlet Temperature | 60 degree |
Wind Speed | 4 m/s |
Others | With Electricity |
With Terminal |
All the above parameters is customized to meet customers' requirements.
If the parameters you need is special and Not standard,No worries.Just please feel free to inform us. We will customize the parameters for you to meet your requirements.
Description :
PTC Air Heater Model | ||||
Model | Dimension (mm) | Aluminum Tubes |
Fin Width (mm) |
Fin Pitch (mm) |
SS |
148mm × 44.5mm × 15 mm 148mm × 22.5mm × 15 mm 120mm × 107mm × 15 mm 96mm × 88.5mm × 15 mm 96mm × 22.5mm × 15 mm 25mm × 22.5mm × 15 mm 45mm × 44.5mm × 15 mm
|
N/A | N/A | N/A |
As we can see, many Heater Size are available for your choice.
Notes :
Special Models and PTC Air Heater Accessories are also available.
Please download the related files from our website, or contact our friendly sales representatives for a copy.
Specifications:
PTC Air Heater Models | ||||
Fin Pitch | Voltage | Power | Safety | |
1.2mm, 1.68mm, 2.0mm, 2.6mm | Includes Safety Fuse | Both AC/DC available | 50~2000W |
UL,VDE,TUV |
Heater Size :
Extra-high-heating-efficiency (Fin Pitch: 1.2m/m, 1.68m/m)
Extra-low-air-resistance (Fin Pitch: 2.0m/m, 2.6m/m)
Includes Safety Fuse
Parameters :
Voltage: AC/DC 12V/24V/48V/72V/120V/240V/300V/400V/480V/560V
Power: 50~2000W
Warranty :
Safety: CUL, VDE, TUV
Patents: US, Germany, France, Britan, China
Custom Specifications:
Custom specifications can be designed according to customer's requirements.
The PTC heat output can be regulated by the airflow applied in typical applications of heat generation. The higher the airflow, the higher the heat output.
Applications:
This PTC Heater is used for Thermal Retention.
Typical Applications:
DC/AC---Can be used on automobile (electric car) and other applications for heating, dehumidifying, thermal retention or use for general household electronic appliances like hand dryer, air conditioner, iron, laminating machine, adhesize sealing machine etc.
Other applications include freeze protection of outdoor surveillance camera, 3C products and other outdoor electronic devices.
Each product will be packed in OPP Bag + Carton.
The outer cartons of the goods, which white plastic strap is pasted, to keep from busting out once the goods is facing creaking and striking.
In general, the goods can be sent to you by Express,by Plane,by Sea,any way you like.
Delivery:
15 ~ 20 days is needed for mass production after payment received.
Then send out as customers' demands.
If any questions or ideas,just please feel free to contact us, since we hold the opinion that any questions or trouble can be absolutely settled.
It is our hope, by joint effort, to promote both business and friendship to our mutual advantage.
