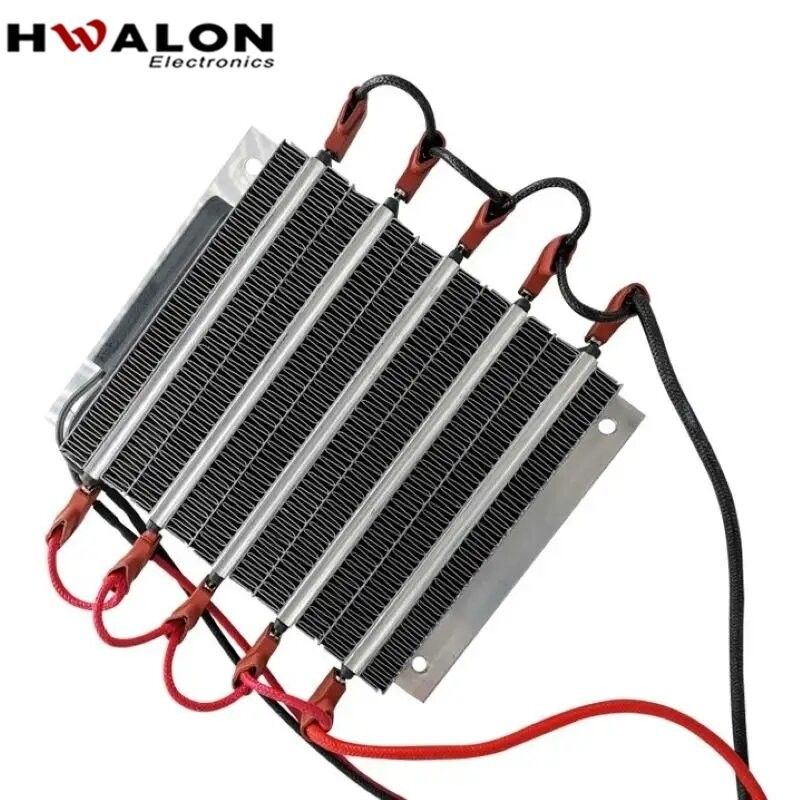

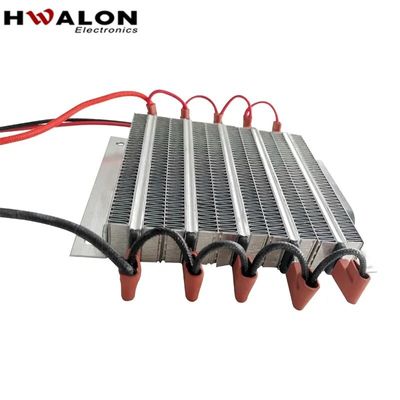

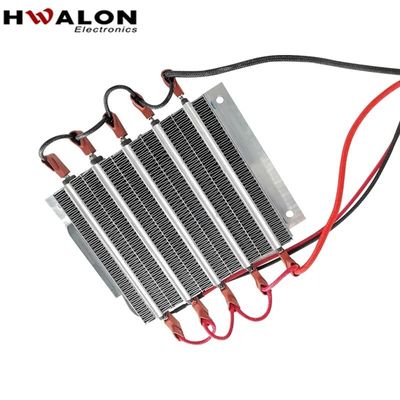

Insulated 345v 1500w PTC Ceramic Heating Element for Hot Air Blower in Working Temperature Range

Product Details:

Place of Origin:	China
Brand Name:	HWALON
Certification:	ROHS,CE
Model Number:	109X115X20mm

Payment & Shipping Terms:

Minimum Order Quantity:	200pcs
Price:	13usd-15usd/pcs
Packaging Details:	cartons
Delivery Time:	15-20 work days
Payment Terms:	T/T, Western Union
Supply Ability:	100000pcs/month

Contact Now

Detailed Product Description

Type:	PTC Ceramic Air Heater	Power Source:	Electric
Material:	Aluminum+Ceramic	Place Of Origin:	Guangdong, China
Dimension(lwh):	109X115X20mm	Voltage:	230V
Working Temperature Range:	100 - 300 ℃	Color:	Silver White
Shape:	Rectangle	Power Customized:	30W-3000W
Highlight:	Insulated PTC Ceramic Heating Element , 1500w PTC Ceramic Heating Element , 345v PTC Ceramic Heating Element

Insulated 345v 1500w Heater Hot air Blower PTC Ceramic Heating Element Industrial Heater PTC Element

Introduction

The PTC (Positive Temperature Coefficient) ceramic air heating element represents a revolutionary advancement in heating technology. Engineered with high - performance ceramic materials and innovative PTC technology, this heating element offers efficient, safe, and reliable heating solutions for a wide range of applications.

Parameter	Description	Typical Values
Rated Voltage	The voltage at which the heating element is designed to operate stably.	110V - 240V (varies depending on the model and application)
Rated Power	The power consumption of the heating element under rated voltage conditions, representing its heating capacity.	500W - 3000W
Resistance	The electrical resistance of the PTC ceramic material, which changes with temperature. It determines the current flow and heat generation.	10Ω - 1000Ω (resistance value is temperature - dependent and varies between different products)
Starting Current	The current drawn by the heating element when it is first powered on. PTC elements typically have a relatively high starting current that decreases as the element heats up.	2A - 10A (usually subsides within seconds)
Temperature Coefficient	A measure of how the resistance of the PTC ceramic changes with temperature. It reflects the self - regulating property of the element.	1% - 10%/°C
Insulation Resistance	The resistance between the live parts of the heating element and its non - conductive housing or other grounded parts, ensuring electrical safety.	≥100MΩ
Dielectric Strength	The ability of the insulation material to withstand a certain voltage without breaking down, indicating the element's electrical insulation performance.	≥1500V for 1 minute

Item	PTC Air heater	PTC Air heater(customizable)
Size	109x115x20mm, can be Customized
Temperature control	Automatically	Automatically
Rated Voltage	230v	Customized
Rated Power	1500w	Customized
Applicable Industries	Machinery Repair Shops, Manufacturing Plant, Retail, Printing Shops, Construction works , Energy & Mining, Advertising Company
Wire	High temperature silicone rubber wire and glass fiber silicone wire

Applications:

1. Industrial Applications

In industrial settings, PTC ceramic air heating elements are widely used in processes like industrial drying, paint curing, and powder coating. Their ability to provide consistent and controlled heating ensures uniform processing, improving product quality and reducing production time. They are also used in industrial ovens, hot air blowers, and muffle furnaces, where reliable and safe heating is essential.

2. HVAC Systems

In heating, ventilation, and air - conditioning (HVAC) systems, PTC ceramic air heating elements play a vital role. They can be integrated into forced - air heating systems to provide additional warmth during cold weather, or used in air - handling units for pre - heating or post - heating of the air. Their energy - efficient and safe operation makes them an environmentally friendly choice for building heating and climate control.

3. Household Appliances

PTC ceramic air heating elements are commonly found in various household appliances, including space heaters, hair dryers, and clothes dryers. Their safety features and rapid heating capabilities make them popular among consumers. In space heaters, for example, the PTC element can quickly warm up a room while ensuring the safety of users, even if the heater is accidentally knocked over or covered.

4. Automotive Applications

In the automotive industry, PTC ceramic air heating elements are used for cabin heating systems. They can rapidly heat the air inside the vehicle, providing a comfortable environment for passengers during cold weather. Their compact size, energy - efficient operation, and safety features make them well - suited for automotive applications.

FAQ

Q: Are you trading company or manufacturer ?

A: We are professional PTC factory.

Q: How long is your delivery time?

A: Generally it is 15-20 days, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: 100% in advance.
