Name: Custom Ntc 10k 3950 3977 3435 Thermistor -40 to 150 Degrees Epoxy Ntc Temperature Sensor
Brand: Shenzhen Hwalon Electronic Co., Ltd.
SKU: 10k 3977
Price: 0.09 USD
Availability: InStock

Home Products NTC Thermistor Temperature Sensor

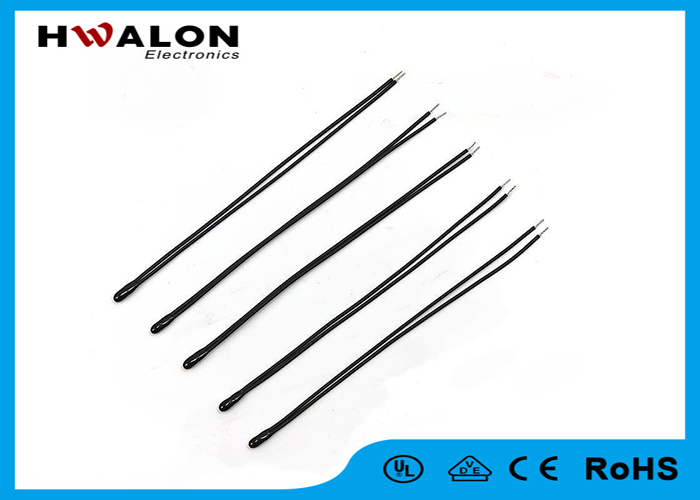

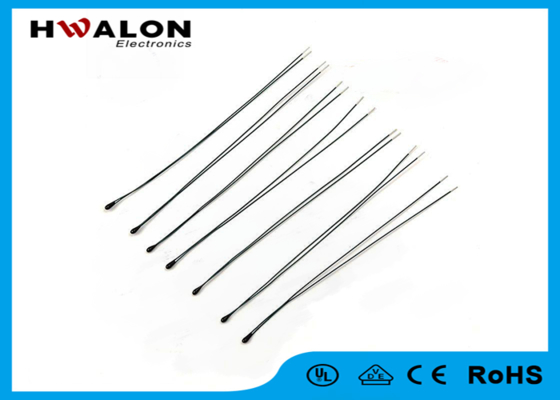

Custom Ntc 10k 3950 3977 3435 Thermistor -40 to 150 Degrees Epoxy Ntc Temperature Sensor

Product Details:

Place of Origin:	CHINA
Brand Name:	HWALON
Certification:	CE
Model Number:	10k 3977

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	0.09-0.15USD
Packaging Details:	cartons
Delivery Time:	7-15days
Payment Terms:	T/T, Western Union
Supply Ability:	100000pcs/day

Contact Now

Detailed Product Description

Style:	Glass Or Epoxy Type	Resistance:	1K ~ 1M Ohms
B Value:	3380, 3435, 3950, 3977,etc.	Tolerance:	1%, 2%, 3%, 5%
Temperature Range:	-40~150°C
Highlight:	NTC thermistor temperature sensor , Epoxy NTC thermistor -40 to 150°C , 10k NTC thermistor with epoxy coating

Custom Ntc 10k 3950 3977 3435 Thermistor -40 to 150 Degrees Epoxy Ntc Temperature Sensor

Product Information:

Introducing a custom NTC thermistor temperature sensor that offers exceptional accuracy and reliability. This sensor be equipped with various resistance values and B values, allowing for precise temperature measurement within the wide range of -40 to 150 degrees Celsius. The epoxy encapsulation ensures robustness and durability, making it ideal for applications in harsh environments.This custom NTC temperature sensor is designed to provide accurate and consistent temperature readings.

Custom Ntc 10k 3950 3977 3435 Thermistor -40 to 150 Degrees Epoxy Ntc Temperature Sensor 0

◆ Tin plating steel wire radial type epoxy resinen encapsulation
◆ Wide range of resistance
◆ High precision
◆ Small size and fast response
◆ High stability
◆ Available in temperature ranges from -40ºC to +150ºC.

PARAMETER	OPTIONS	UNIT
Resistance @ 25°C	1, 4.7, 5, 8, 10, 12, 20, 30, 47, 50, 100, 1000	kohms
Resistance Tolerance	1, 2, 3, 5	%
Beta Value	3435, 3950, 3977, 3984, 4000	K
Temperature Range	-40 to +150	°C
Thermal Time Constant	< 10	s
Temperature Coefficient Resistance	-4.4	%/°C
Max Power	30	mW
Dissipation Constant (in air)	2	mW/K
Wire Material	Enamelled Cu, Tinned Copper, PVC,Parallel,Teflon	mm

Application:

◆ Ambient temperature sensing, control and compensation.
◆ Liquid or gas temperature control and monitoring.
◆ Assembly into probes.
◆ Automotive (Air Conditioning, Cabin Climate Control/Management, Heated Seats).
◆ Industrial applications.
◆ Computer and Communications Industry.
◆ HVAC, White Goods, Military.
