|Place of Origin:||China|
|Minimum Order Quantity:||1000pcs|
|Packaging Details:||Standard CTN package or according to customer’s requirement|
|Delivery Time:||15 to 20 days|
|Payment Terms:||T/T, Western Union,Paypal|
|Dimension:||150 × 65 × 26 Mm||Power:||1300 W|
|Voltage:||220 V||Application:||Automotive Heating|
|Wind Speed:||4 M / S||Outlet Temperature:||55 Degree|
|Target Group:||Automotive Manufacturers||Sample Supply:||Available For Your Testing|
PTC electric heater,
electric PTC heater

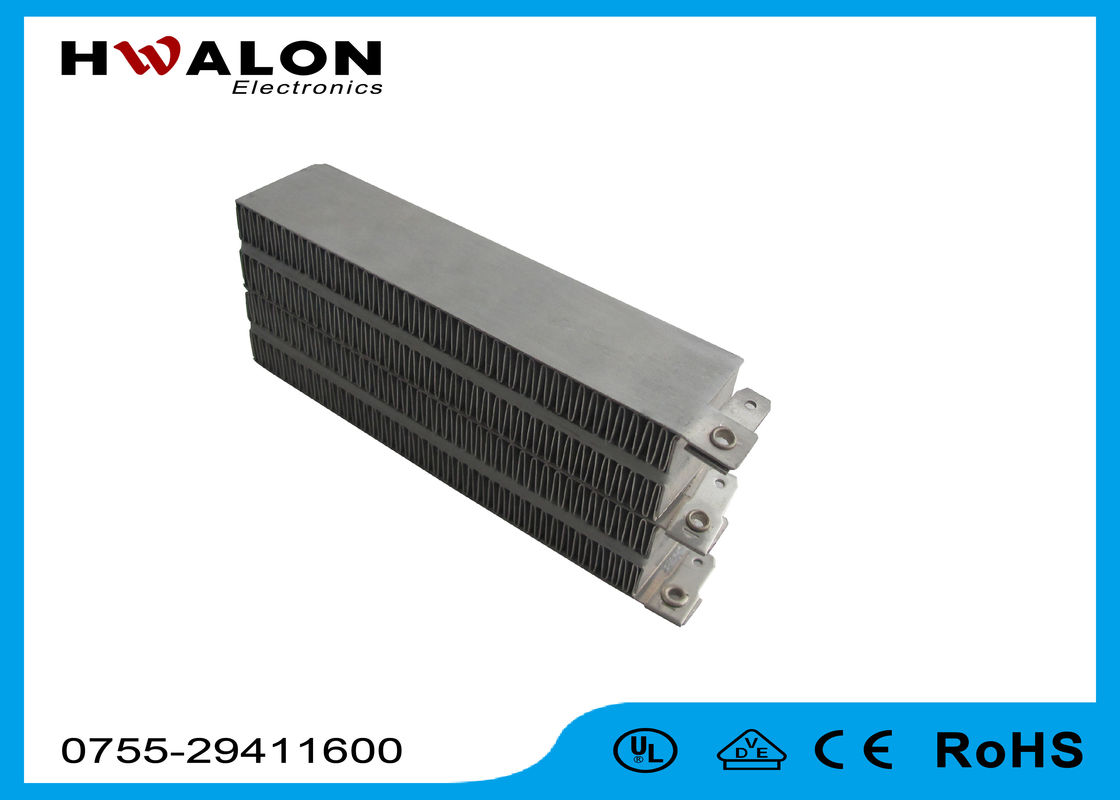

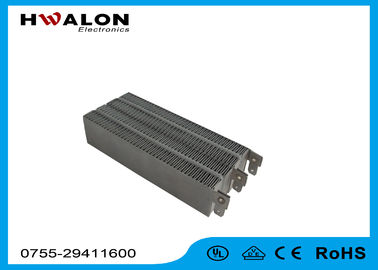

150 × 65 × 26 Mm 220 V Ptc Electric Heater With Wind Speed 4 m / s For Automotive Heating
1. Long service life;
2. No thermostat required;
3. Self regulating heat control;
4. Very high reliability, impossible to overheat;
5. Can be water-proof, no electricity leakage or cause short circuit.
6. Does not crack, burst or burn when heated under no airflow;
7. Does not cause oxygen shortage when used for a long time.
|Inner PTC Element Shape||Rectangular shape|
|Inner PTC Element Material||Ceramic|
|Inner PTC Element Quantity||Based on Power Demands|
|Heater Shape||Rectangular shape|
|Heater Size||150 × 65 × 26 mm|
|Outlet Temperature||55 degree|
|Wind Speed||4 m/s|
All the above parameters is customized to meet customers' requirements.
If the parameters you need is special and Not standard,No worries.Just please feel free to inform us. We will customize the parameters for you to meet your requirements.
|PTC Air Heater Model|
|Model||Dimension (mm)||Aluminum Tubes||
26mm × 65mm × L
L (mm): 70, 93, 106, 128, 150, 185, 202
As we can see, many Length size are available for your choice.
Special Models and PTC Air Heater Accessories are also available.
Please download the related files from our website, or contact our friendly sales representatives for a copy.
|PTC Air Heater Models|
|1.2mm, 1.68mm, 2.0mm, 2.6mm||Includes Safety Fuse||Both AC/DC available||50~2000W||
Heater Size :
Extra-high-heating-efficiency (Fin Pitch: 1.2m/m, 1.68m/m)
Extra-low-air-resistance (Fin Pitch: 2.0m/m, 2.6m/m)
Includes Safety Fuse
Voltage: AC/DC 12V/24V/48V/72V/120V/240V/300V/400V/480V/560V
Safety: CUL, VDE, TUV
Patents: US, Germany, France, Britan, China
Custom specifications can be designed according to customer's requirements.
The PTC heat output can be regulated by the airflow applied in typical applications of heat generation. The higher the airflow, the higher the heat output.
This PTC Heater is used for Automotive Heating.
It also can be used in:
|PTC Air Heater|
|Air Cleaner||Body Dryer|
|Central Air-conditioner||Biology heating|
|Massage apparatus||Physical treatment|
DC/AC---Can be used on automobile (electric car) and other applications for heating, dehumidifying, thermal retention or use for general household electronic appliances like hand dryer, air conditioner, iron, laminating machine, adhesize sealing machine etc.
Other applications include freeze protection of outdoor surveillance camera, 3C products and other outdoor electronic devices.
Each product will be packed in carton.
The outer cartons of the goods, which white plastic strap is pasted, to keep from busting out once the goods is facing creaking and striking.
In general, the goods can be sent to you by Express,by sea,any way you like.
15 ~ 20 days is needed for mass production after payment received. Then send out as customers' demands.
150 × 65 × 26 mm 220 V PTC Air Heater With Wind Speed 4 m / s For Automotive Heating
