High Precision Thermistor Temperature Sensor Solid Structure -40 ~125 Degree Temp Range

High Precision Thermistor Temperature Sensor Solid Structure -40 ~125 Degree Temp Range

MOQ: 5000pcs
Price: negotiation
Standard Packaging: carton packing
Delivery Period: 7-25days
Payment Method: Western Union, T/T, paypal
Supply Capacity: 500000 piece per month
Detail Information
Place of Origin
China
Brand Name
Hwalon
Certification
RoHs, ISO, SGS
Model Number
NTC
Applicatuon:
Temperature Sensor
Operating Temperature:
-40~130 ℃
Color:
Black
Size:
2.5mm-4mm
Highlight:

temperature sensor resistor

,

thermistor temperature sensor

Product Description

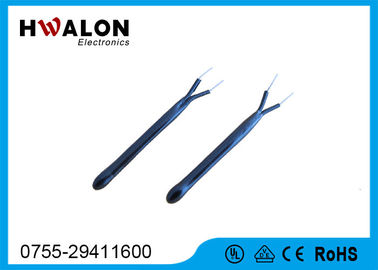

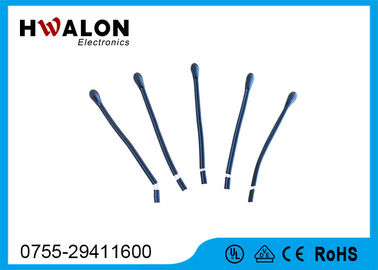

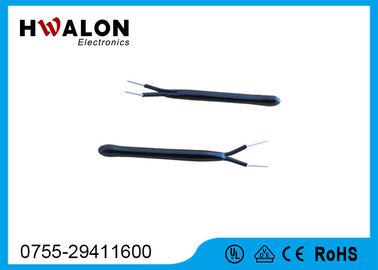

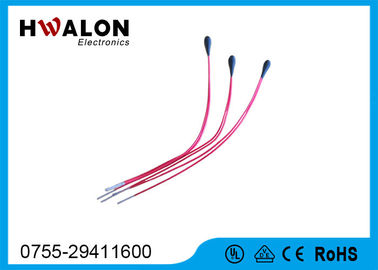

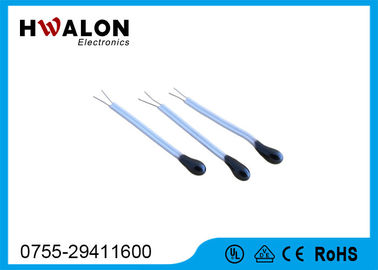

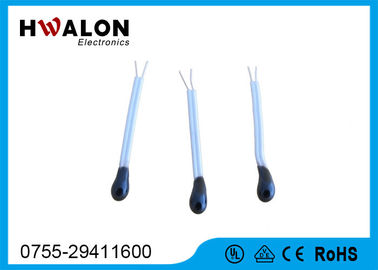

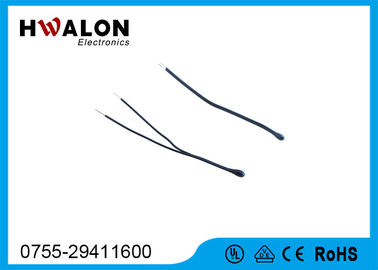

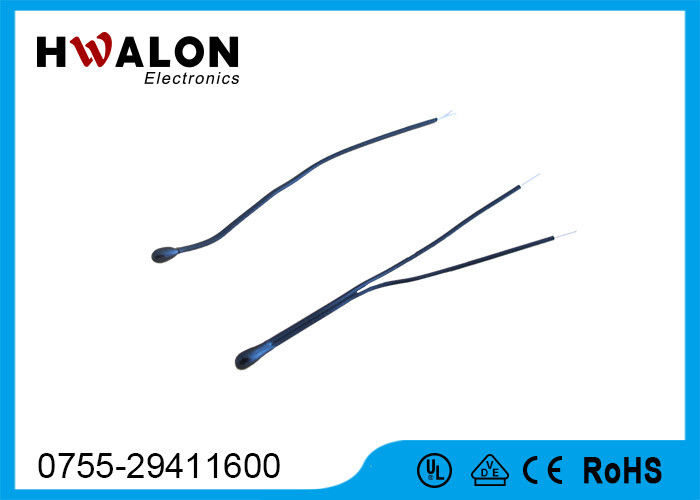

MF52 temperature sensor Epoxy coated blackhead high precision and stability -40 ~125 degree temperature range





Features

· Radial resin coated
· Fast response
· Large material constant (B value)
· Low residue resistance
· Long life, high reliability
· Complete part, wide operation range
· Operating temperature -55°C~125°C





Packing & Delivery

1. FedEx/DHL/UPS/TNT for samples, Door-to-Door;
2. By Air or by Sea for batch goods, for Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
4. Delivery Time: 3-5 days for samples; 7-10 days for batch goods.







Mechanical characteristics

1. Resistance to soldering heat

The terminals shall be dipped in to a soldering bath having a temperature of 260 ±5℃ to a point 2.0 mm from the body and then be held there for 5 ±1s, the change ratio of the rated zero-power resistance shall be within ±1% of the initial value.



2. Solderability

After dipping the terminal to a depth in a soldering bath of 235 ±5℃ for 2 ±0.5s .Approximately 90% of terminals should be covered with solder uniformly.



3. Free fall

After three times fall to a maple board from 0.75 m high, there shall be no visible damage and the change ratio of the rated zero-power resistance shall be within ±0.2% of the initial value.



4. Robustness of terminations

After 1N loading weight for 10 ±1s was applied to the wire terminations, there shall be no visible damage and the change ratio of the rated zero-power resistance shall be within ±1% of the initial value.





Features

1. Glass-sealed, solid structure, good heat resistance, applicable for poor working environment
2. High precision in both resistance and B value, good reliability and working stability
3. Rapid respond, high sensitivity; Good consistency and interchangeability
4. High cost performance, economical and practical
5. Small size, lightweight, applicable for automation and mass production







Specifications

Rated zero-power resistance R25 : 10 kΩ ±1% (at 25℃)
B value B25/85: 3,950K ±1 %
Dissipation factor Approx. 0.9 mW/℃(in air)
Thermal time constant Approx. 3.0 s (in air)
Maximum power rating 3.5 mW (at 25℃)
Category temperature range -30 ~ 120 ℃





Application:

1. Air-condition Equipment

2. Heating Apparatus

3. Electric Thermometer

4. Liquid Level Sensor

5. Automotive electronics

6. Electronic calendar

7. Battery of Mobile Telephone
