Control Detection NTC Thermistor Temperature Sensor Large Material Constant

Control Detection NTC Thermistor Temperature Sensor Large Material Constant

MOQ: 5000pcs
Price: negotiation
Standard Packaging: carton packing
Delivery Period: 7-25days
Payment Method: Western Union, T/T, paypal
Supply Capacity: 500000 piece per month
Detail Information
Place of Origin
China
Brand Name
Hwalon
Certification
RoHs, ISO, SGS
Model Number
NTC
Applicatuon:
Temperature Sensor
Operating Temperature:
-40~130 ℃
Color:
Black
Size:
2.5mm-4mm
Highlight:

temperature sensor resistor

,

thermistor temperature sensor

Product Description

MF52 temperature control detection Epoxy coated blackhead high precision 1% 2.5mm~4mm





Features

· Radial resin coated
· Fast response
· Large material constant (B value)
· Low residue resistance
· Long life, high reliability
· Complete part, wide operation range
· Operating temperature -55°C~125°C







Packing & Delivery

1. FedEx/DHL/UPS/TNT for samples, Door-to-Door;
2. By Air or by Sea for batch goods, for Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
4. Delivery Time: 3-5 days for samples; 7-10 days for batch goods.







Mechanical characteristics

1. Resistance to soldering heat

The terminals shall be dipped in to a soldering bath having a temperature of 260 ±5℃ to a point 2.0 mm from the body and then be held there for 5 ±1s, the change ratio of the rated zero-power resistance shall be within ±1% of the initial value.



2. Solderability

After dipping the terminal to a depth in a soldering bath of 235 ±5℃ for 2 ±0.5s .Approximately 90% of terminals should be covered with solder uniformly.



3. Free fall

After three times fall to a maple board from 0.75 m high, there shall be no visible damage and the change ratio of the rated zero-power resistance shall be within ±0.2% of the initial value.



4. Robustness of terminations

After 1N loading weight for 10 ±1s was applied to the wire terminations, there shall be no visible damage and the change ratio of the rated zero-power resistance shall be within ±1% of the initial value.





Features

1. Glass-sealed, solid structure, good heat resistance, applicable for poor working environment
2. High precision in both resistance and B value, good reliability and working stability
3. Rapid respond, high sensitivity; Good consistency and interchangeability
4. High cost performance, economical and practical
5. Small size, lightweight, applicable for automation and mass production





Specifications

Rated zero-power resistance R25 : 10 kΩ ±1% (at 25℃)
B value B25/85: 3,950K ±1 %
Dissipation factor Approx. 0.9 mW/℃(in air)
Thermal time constant Approx. 3.0 s (in air)
Maximum power rating 3.5 mW (at 25℃)
Category temperature range -30 ~ 120 ℃







Application:

1. Air-condition Equipment

2. Heating Apparatus

3. Electric Thermometer

4. Liquid Level Sensor

5. Automotive electronics

6. Electronic calendar

7. Battery of Mobile Telephone



Control Detection NTC Thermistor Temperature Sensor Large Material Constant 0

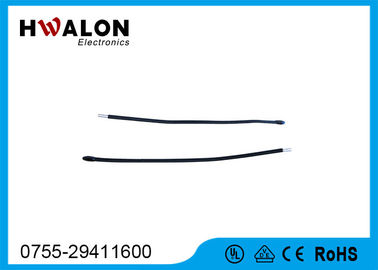

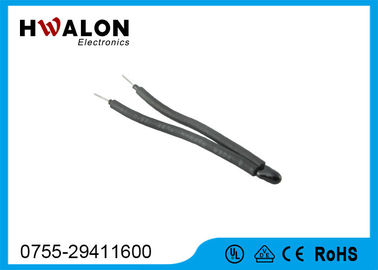

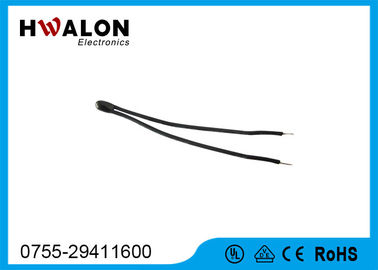

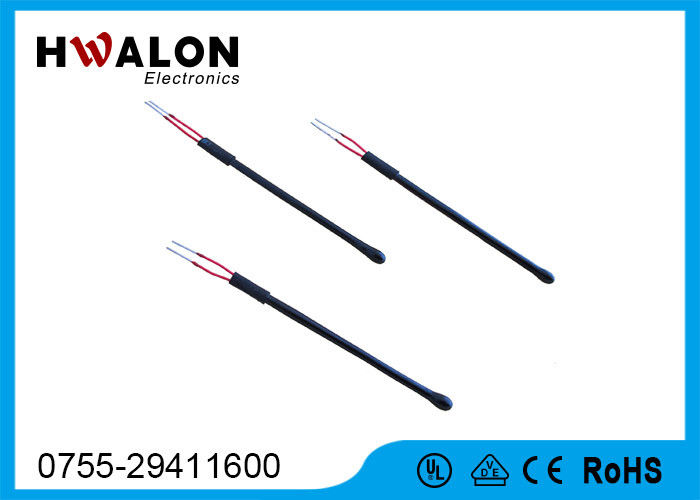

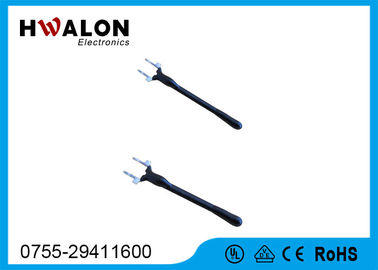

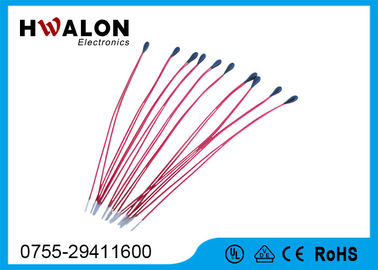

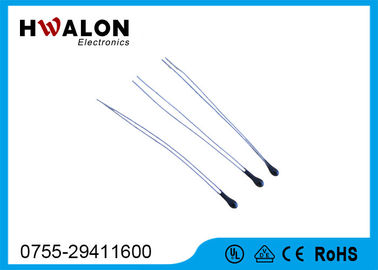

Product pictures:

Control Detection NTC Thermistor Temperature Sensor Large Material Constant 1



Control Detection NTC Thermistor Temperature Sensor Large Material Constant 2
