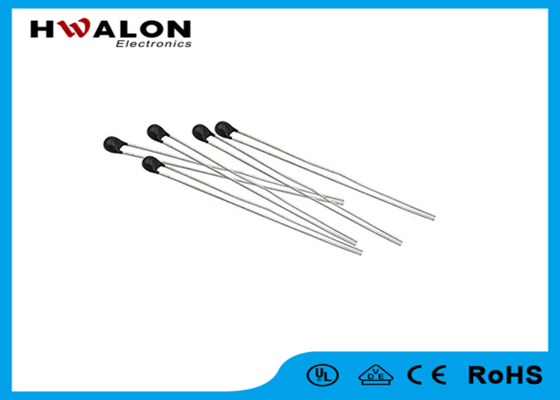

1K 2k 3k 5k 7k 8k 10k 12k 15k 20k 25k 50k 60k 100k 200k 1000k ohm 3950 3435 sensor probe chip ntc thermistor
  • name
  • name

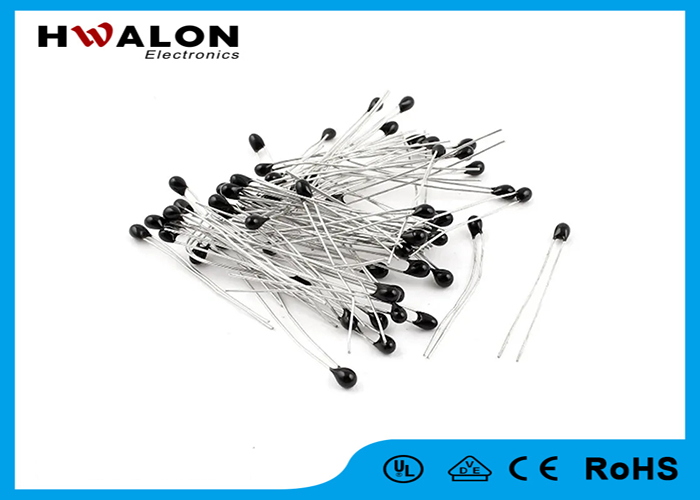

1K 2k 3k 5k 7k 8k 10k 12k 15k 20k 25k 50k 60k 100k 200k 1000k ohm 3950 3435 sensor probe chip ntc thermistor

MOQ: 1000pcs
Price: 0.1-0.5usd
Standard Packaging: cartons
Delivery Period: 7-15days
Payment Method: T/T, Western Union
Supply Capacity: 10000pcs/day
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
HWALON
Certification
CE
Model Number
10K 3950
Material:
Phenolic Aldehyde
Resistance:
10Kohm
B-value:
3950
Tolerance:
1%
Application:
Household Appliances
Highlight:

NTC thermistor temperature sensor probe

,

3950 NTC thermistor chip

,

high resistance NTC thermistor

Product Description

1K 2k 3k 5k 7k 8k 10k 12k 15k 20k 25k 50k 60k 100k 200k 1000k ohm 3950 3435 sensor probe chip ntc thermistor



Product Information:





Type
NTC(thermistor) Temperature Sensor
Temperature range
-50℃ ~ +300℃；Customized
Accurancy
1%；5%；10%
RT(25℃)
1K；2K；2.2k；2.7k；3K；5K；7K；8K；12K；15K；20K；25K；30K；40K；47K；50K；60K；70K；100K；200K；230K；250K；470K；500K；1000K；Customized
B value
3274；3435；3470；3928；3950；3977；4100；4200；4400；Customized
Probe Material
Stainless steel SS304； aluminum；copper；plastic；epoxy；glass
Installation
Flanged；Surface；Threaded；Plastic；Straight；Film；Customized
Wire Material
Heat shrinkable tube；PVC tube；glass fiber tube； teflon tube
Connector
Molex；JST；DuPont；CWB；CJT；U type；Customized





1K 2k 3k 5k 7k 8k 10k 12k 15k 20k 25k 50k 60k 100k 200k 1000k ohm 3950 3435 sensor probe chip ntc thermistor 0



MF52 is a bead-type NTC (Negative Temperature Coefficient) thermistor, with its main parameters as follows:
Resistance parameters:
Nominal resistance (R@25℃): Ranging from 1kΩ to 100kΩ, with accuracy options of ±1%, ±2%, ±3%, ±5%, ±10%.
Material constant (B value): Common B values @(25℃/50℃) include 3380K, 3435K, 3550K, 3700K, 3950K, 3977K, 3990K, 4100K, etc.
Performance parameters:
Dissipation factor: ≥2.0mW/℃ (in still air).
Thermal time constant: ≤7 seconds (in still air).
Insulation resistance: Over 100MΩ (DC500V).
Operating temperature range: -50℃ to +150℃.
Appearance size and pin parameters:
Type A: Tinned copper wire or tinned copper-clad steel wire; maximum D is 2.2mm, maximum L1 is 3.5mm, minimum L2 is 25.0mm, d±0.05 is 0.35mm, F±0.5 is 1.8mm.
Type B: Enamelled wire; maximum D is 2.0mm, maximum L1 is 6.0mm, minimum L2 is confirmed by the user, L3±1, d±0.05 is 0.28mm.
Other parameters:
Rated power: ≤50mW.



Application:



1K 2k 3k 5k 7k 8k 10k 12k 15k 20k 25k 50k 60k 100k 200k 1000k ohm 3950 3435 sensor probe chip ntc thermistor 1



Packing and Delivery:



1K 2k 3k 5k 7k 8k 10k 12k 15k 20k 25k 50k 60k 100k 200k 1000k ohm 3950 3435 sensor probe chip ntc thermistor 2









Tags:

thermistor temperature sensor,

temperature sensor resistor,

thermistor temperature probe
