Place of Origin: | CHINA |
Brand Name: | Hwalon |
Certification: | CE UL |
Model Number: | MF52 |
Minimum Order Quantity: | 5000pcs |
---|---|
Price: | by negotiation |
Packaging Details: | 1000pcs/carton |
Delivery Time: | 7-10 working days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 200,000pcs/month |
Head Size:: | 2.0±0.3mm | Tolerance Of Resitance:: | 1% |
---|---|---|---|
B Value: | 3950K | Wire Legth:: | 25mm |
Tolerance Of B Value: | 1% | Category Temperature Range:: | -30 ~ 120 ℃ |
Resitance:: | 10kohm | Wire Material:: | Tinned Copper Brass Wire |
Highlight: | thermistor temperature sensor,thermistor temperature probe |

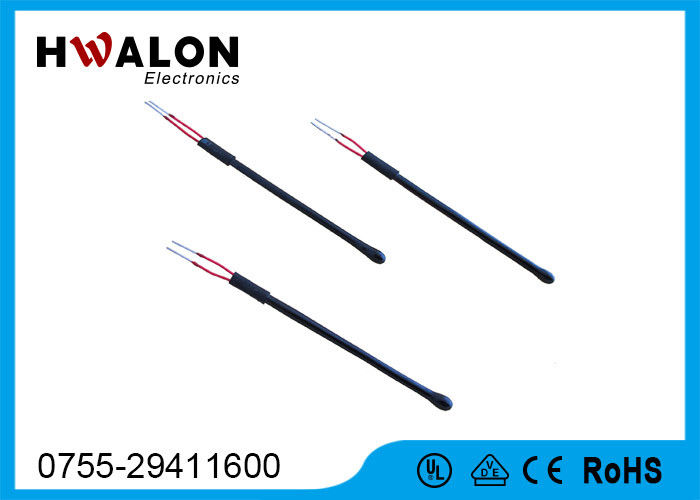

Medical High Precision NTC Thermistor 10k Ohm Thermometer Resistance For Ups , Fast Response
Features:
1. High precision in both resistance and B value,
2. Good reliability and working stability
3. Rapid respond, high sensitivity;
4. Good consistency and interchangeability
5. High cost performance, economical and practical
Drawing:
Parameters:
Rated zero-power resistance | R25 : 10 kΩ ±1% (at 25℃) |
B value | B25/85: 3,950K ±1 % |
Dissipation factor | Approx. 0.9 mW/℃(in air) |
Thermal time constant | Approx. 3.0 s (in air) |
Maximum power rating | 3.5 mW (at 25℃) |
Category temperature range | -30 ~ 120 ℃ |
Applications:
1. Water heater,dishwasher
2. Refrigerator,frozen cabinet and
3. heating Apparatus and electronic calendar
4. Microwave oven,electric brooder
5. Disinfecting machine,soybean milk
How to Order:
In order to help you to get the exact model, please offer the following necessary info.:
1. application of the NTC thermistor:_________
2.working environment of NTC thermistor:________
3. range of operation temperature:___°c to ___°c
*4. dimension and the drawing of the NTC
*5. resistance at 25 °c: _____ ohm
*6. tolerance of resistance: _____ %
*7. B value: _____ K
*8. tolerance of B value: _____%
*9. head size: _____mm
*10. wire length: _____mm
* Fill " * " items necessarily.
Questions | Answers | |
1 | What is the MOQ? | 5Kpcs |
2 | What is the payment terms? | By negotiation |
3 | Can you accept special requirement? | Yes, we can.we can design for your special requirement. |
4 | Can you make the printing artworks(such as user manual/packing/rating label) in our language? | Yes we can.we do OEM work for a long time. |
